Chapter 3 Program Tools 50

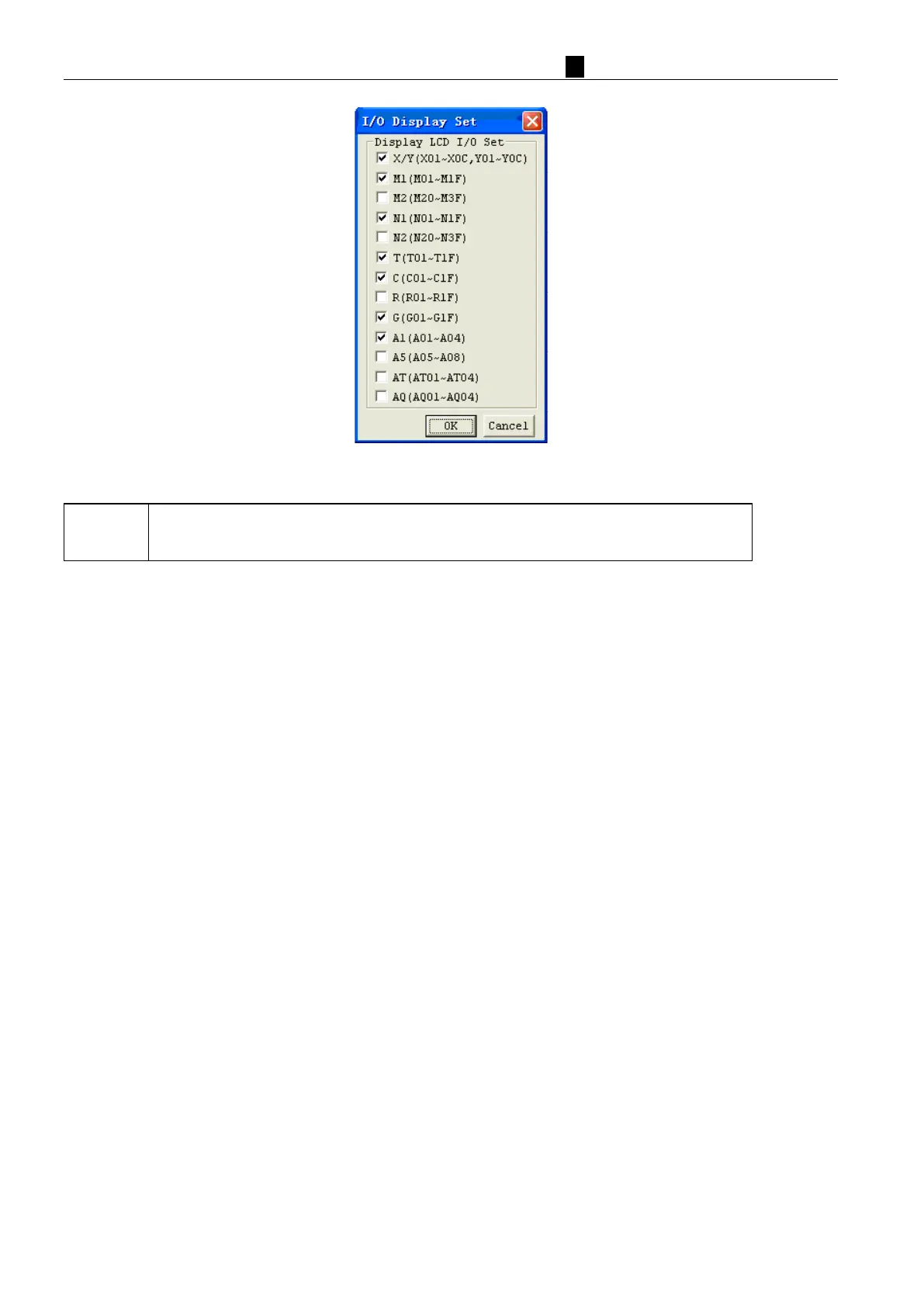

2. Setting “I/O Display Set” as the picture shown below, and click OK :
3.
Download the program.
This time I/O interface “M20~M3F, N20~N3F, R01~R1F, A05~A08, AT01~AT04, AQ01~AQ04” are hidden:
Or ↑ ↓
Under LADDER Mode,DRD8 current value=1750, display the state of relays (I/Z/Q ⇔
X/Y ⇔ M 1⇔ N2 ⇔ T ⇔ C ⇔ G ⇔ A1) ⇔ Original Screen
※
I/O interface can be hide in the same way in FBD.
