Chapter 3 Program Tools 44

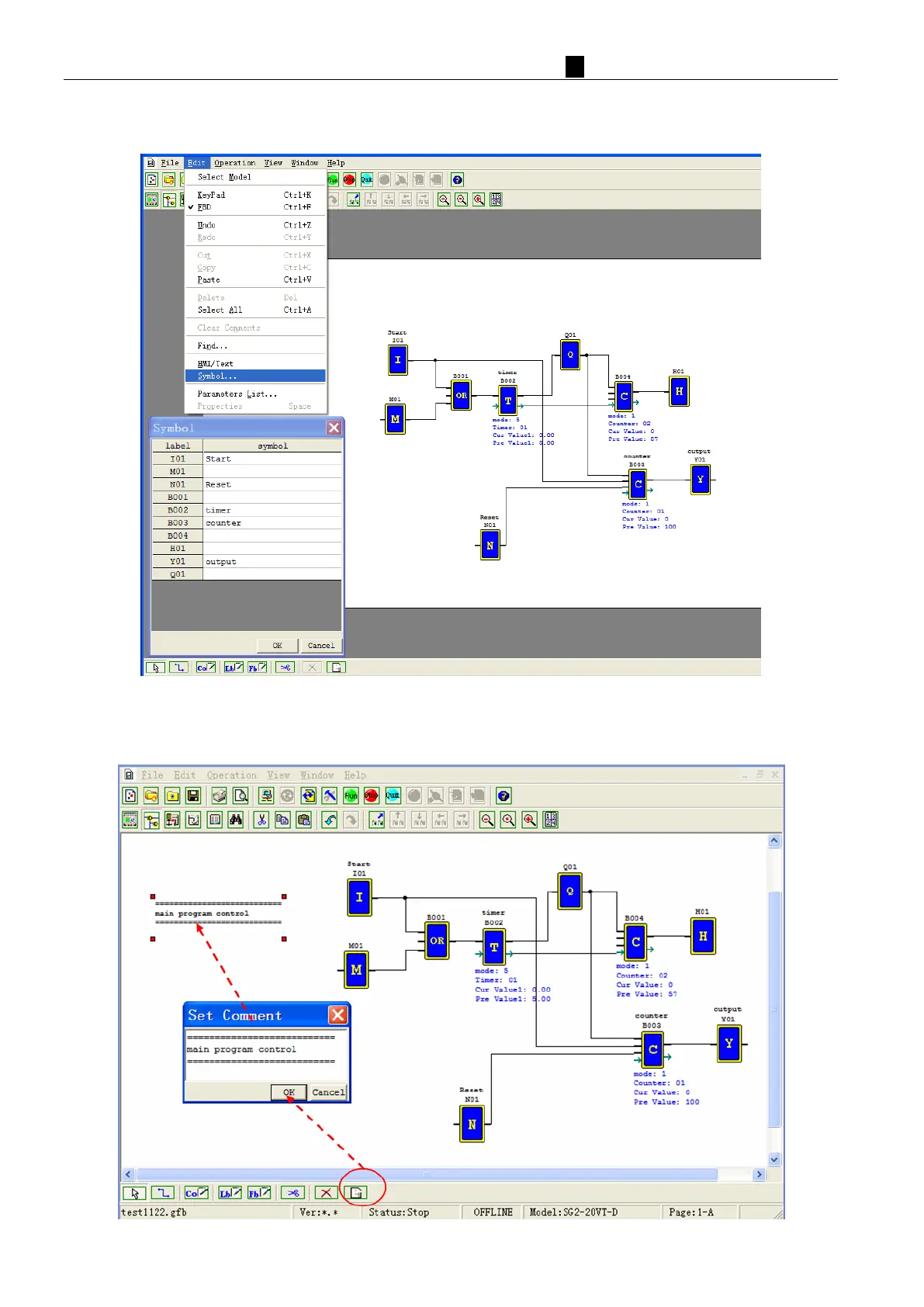

Symbol and Parameters list
FBD list symbols for coils and function blocks which only been used in program and will comment tags appear
in the program.
Symbol also can describe the function of main program. The following diagram operation, click the toolbar
"Comments", Comments configuration dialog box appears, edit and click "OK", notes will be displayed in the
programming interface, and can be moved by dragging the mouse position.
