IMO iSmart V4 - SHIFT Function Block

Chapter 6 FBD Block Diagram Programming 149
SHIFT function block
The iSmart smart relay includes only one SHIFT instruction that can be used throughout a program. This function output a
serial of pulse on selection points depending on SHIFT input pulse.
FBD output coil display
I01: enable input coil
Press “OK” button into
function display
Press “SEL” , “↑ ↓” and “OK” to
modify coil number and coil type
Display Description
Shift output coils
Range
S01: Shift code (S01)
Outputs
Q01~Q08
I01: Enable Input (I01~ B260)
Expansion outputs
Y01~Y0C
I02: Shift input (I01~ B260)
Auxiliary coil
M01~M3F
Type: Shift output coils
Auxiliary coil
N01~N3F
Num: Preset number of output pulse (1~8)

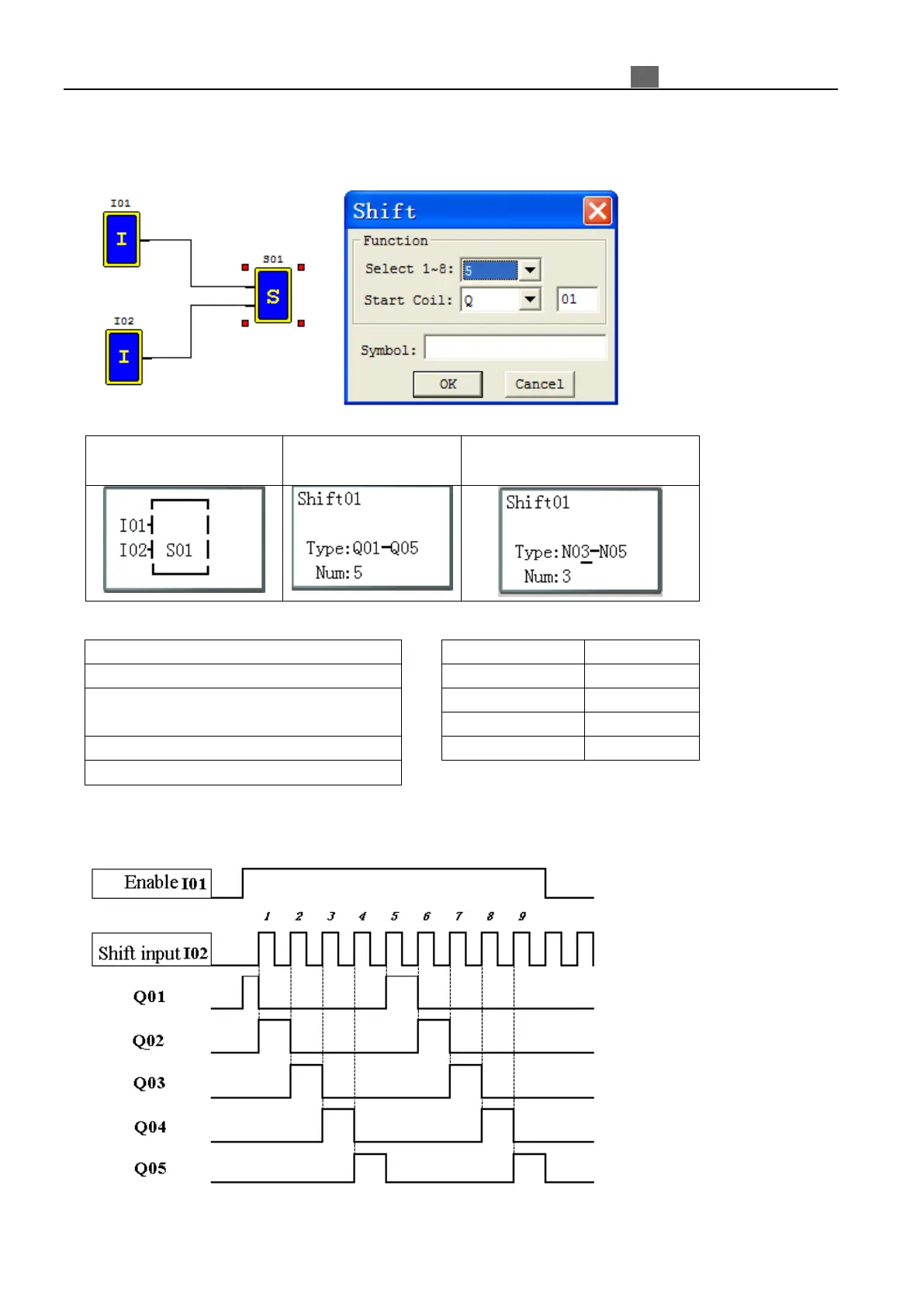

Timing diagram
