Chapter 11: Ethernet function Instruction 6

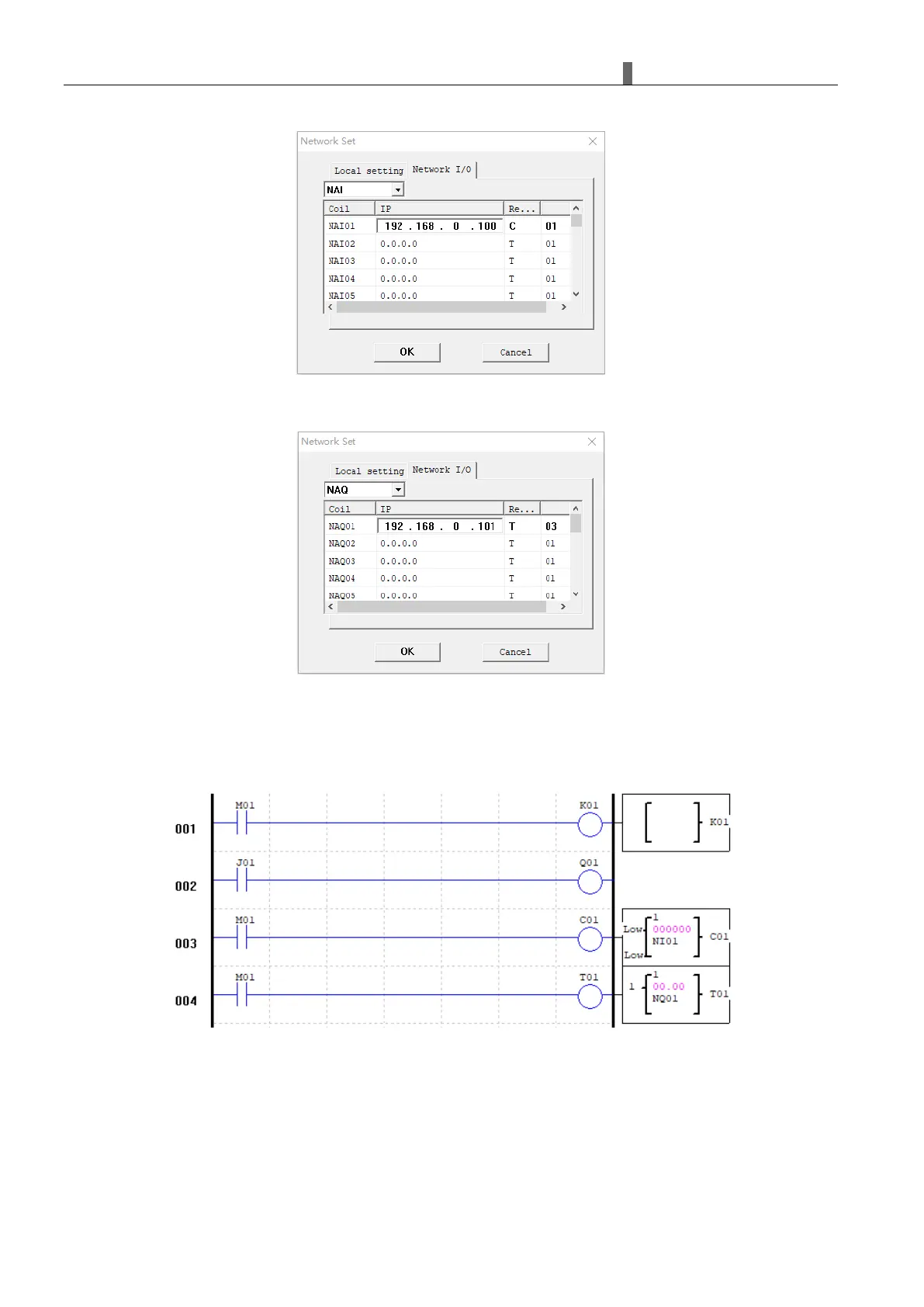

Legend: The status of network digital output K01 is output to M02 of slave device 192.168.0.102.
Legend: The network analog input NAI01 reads the value of C01 of the slave device 192.168.0.100.
Legend: The value of network analog output NAQ01 is output to T03 of slave device 192.168.0.101.
Examples in LADDER:
Line 001: Network digital output K01 is used as output point
Line 002: Network digital input J01 is used as input point
Line 003: The network analog input NI01 is used as the preset value of the counter C01
Line 004: The network analog output NQ01 is used as the preset value of timer T01
