(3) Timer mode 2 (ON-Delay B Mode)
Mode 2 Timer is an ON-Delay with reset that will time up to a fixed preset value and stop timing when the current
time is equal to the pre-set value. Additionally, the Timer current value will be kept when Timer is disabled.

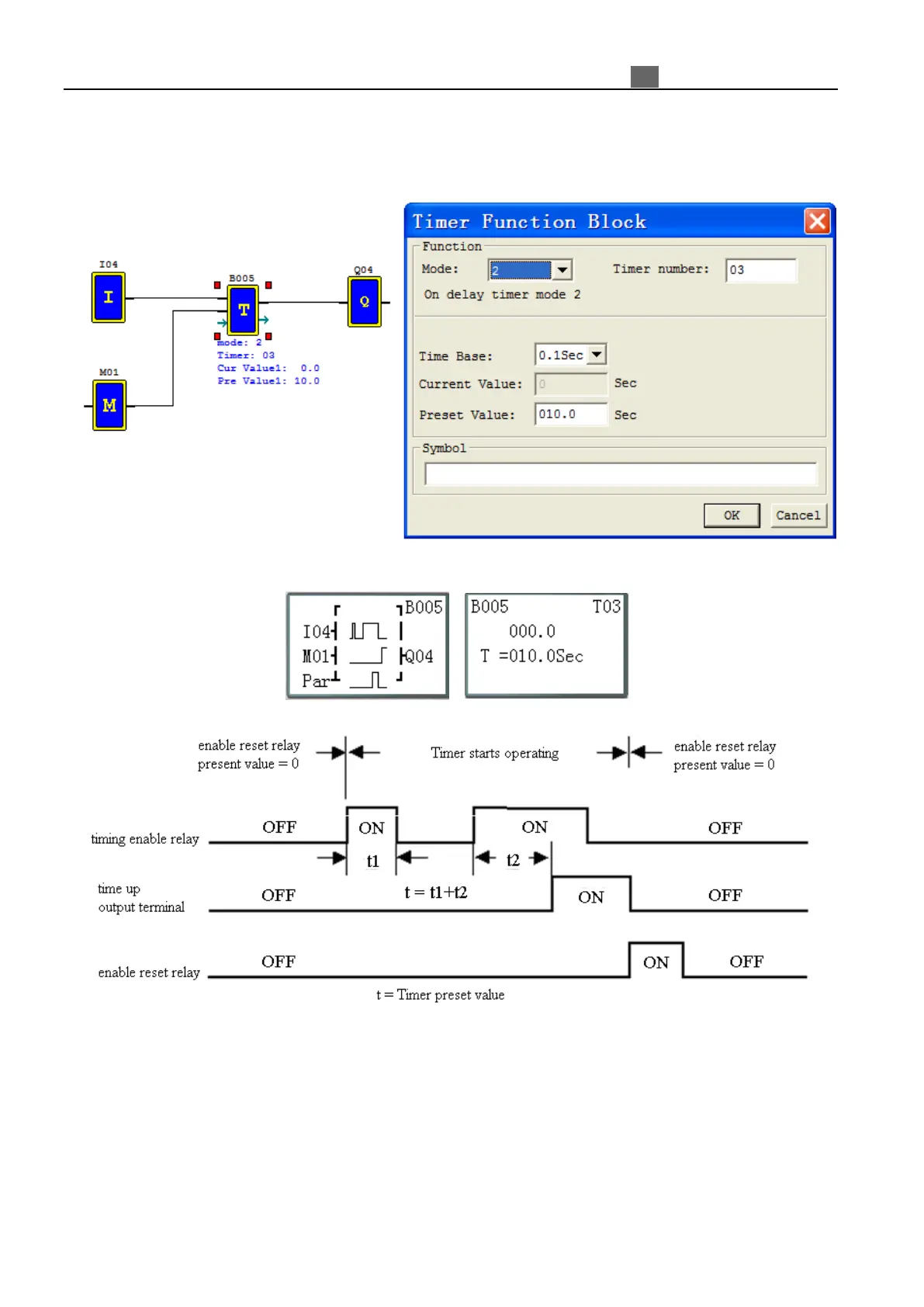

FBD display
Parameter display
Enable Input
→ ←
Current value
Reset
→ ←
Preset value
Timing Parameter
→
