(4) RTC Mode 3 (Year Month Day)
The Year-Month-Day Mode 3 allows the Rxx coil to activate based on Year, Month, and Date. The below
example1 allows for selection of Year and Date for the B002 (R01) coil to activate ON, and Year and Date for
the B002 (R01) coil to deactivate OFF.
If the year is set as 00-00, the particular mode is available. The RTC is ON from the start date to the end
date every year. More refer to example 3.
Exa
mple 1:

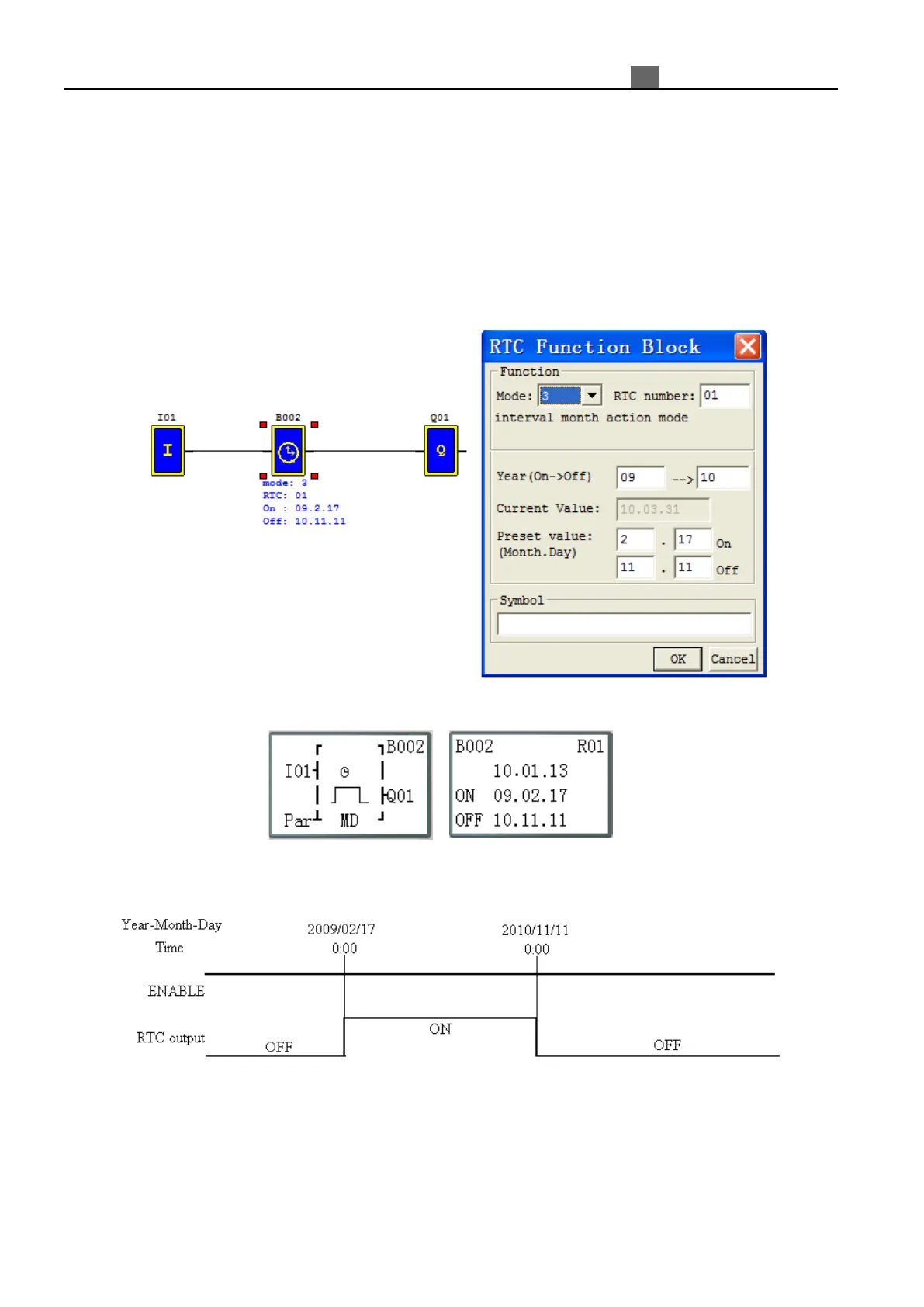

FBD display
Parameter display
Enable Input
→
←
Current time
←
ON preset value
RTC Parameter
→
←
OFF preset value
Note: Parameter display current time: year, month, and day;
Parameter display ON/OFF preset value: year, month, and day.
