IMO iSmart V4 - Page 202

Chapter 6 FBD Block Diagram Programming 182

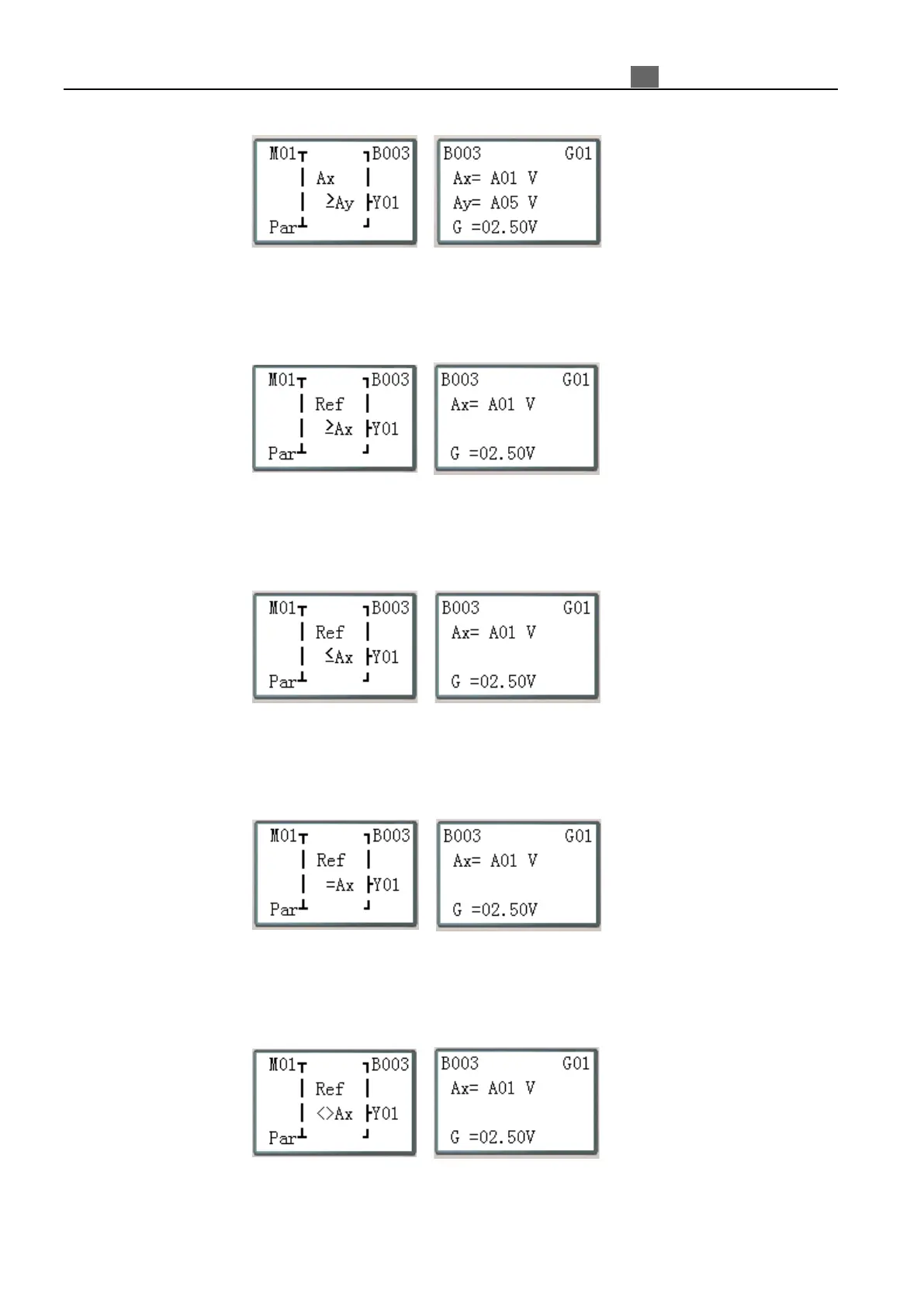

Analog Comparison Mode 3
FBD display
Parameter display
Enable Input
→
←
Analog Input
←
Analog Input
Parameter
→
←
Reference
B003 (G01) output ON when the value of A01 is not lower than the value of A05;
Parameter display current value of Ax and Ay when running mode;
Analog Comparison Mode 4
FBD display
Parameter display
Enable Input
→
←
Analog Input
Parameter
→
←
Reference
B003 (G01) output ON when the value of A01 is not greater than 2.50;
Parameter display current value of Ax when running mode;
Analog Comparison Mode 5
FBD display
Parameter display
Enable Input
→
←
Analog Input
Parameter
→
←
Reference
B003 (G01) output ON when the value of A01 is not low than 2.50;
Parameter display current value of Ax when running mode;
Analog Comparison Mode 6
FBD display
Parameter display
Enable Input
→
←
Analog Input
Parameter
→ ←
Reference
B003 (G01) output ON when the value of A01 is equal to 2.50;
Parameter display current value of Ax when running mode;
Analog Comparison Mode 7
FBD display
Parameter display
Enable Input
→
←
Analog Input
Parameter
→
←
Reference
B003 (G01) output ON when the value of A01 is not equal to 2.50;
Parameter display current value of Ax when running mode;
