Chapter 6 FBD Block Diagram Programming 186
Fil
ter Mode 4 (Minimum value)
When enable coil is ON, maximum function will start, the status of output coil and enable coil is same.
When enable coil is OFF, maximum function will close, the status of output coil and enable coil is same.

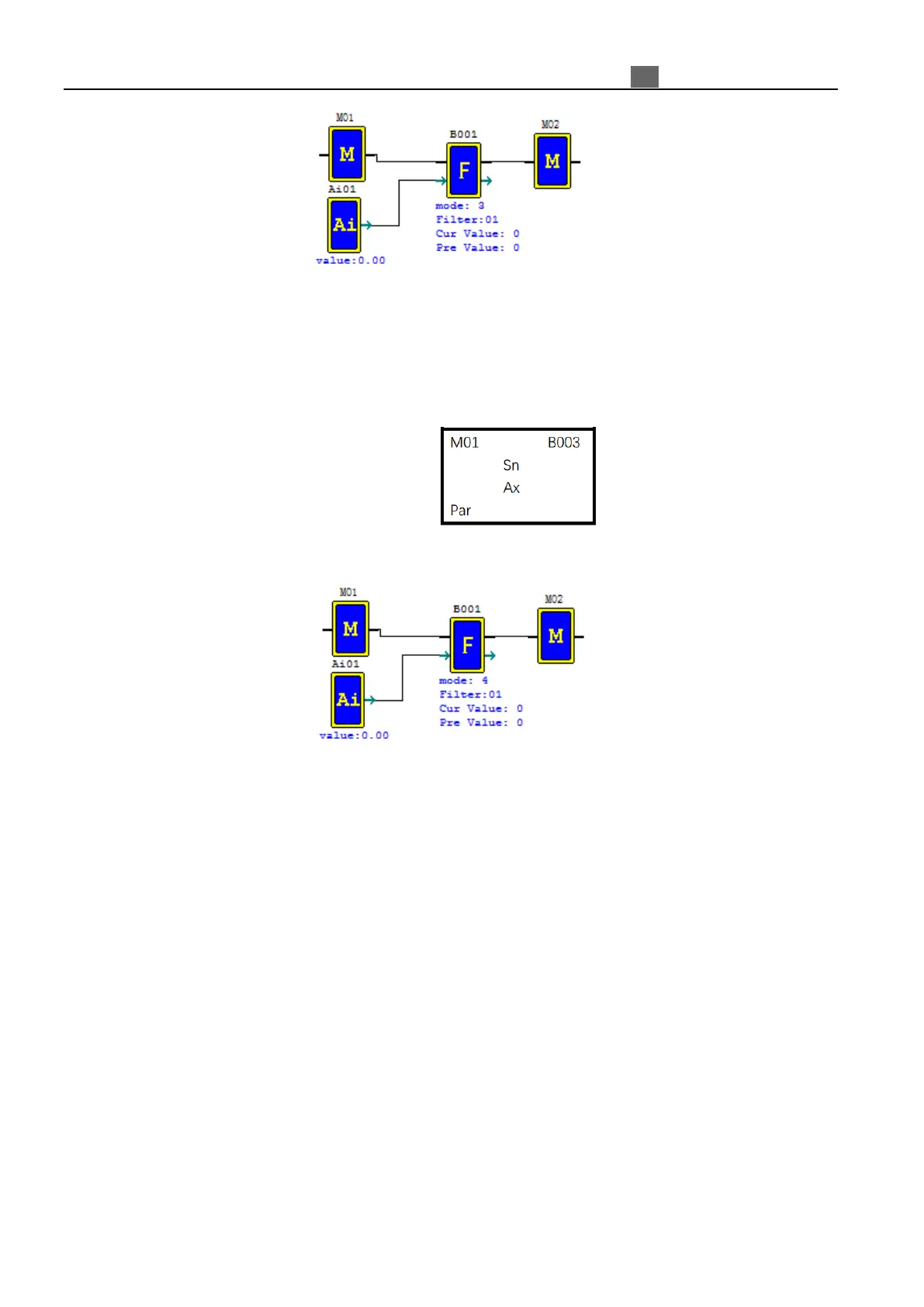

In enable coil ON status, F function block current value will save the minimum value of analog input Ax.
E
nable input
→
