Chapter 8 20 Points RS485 type Models Instruction 208
Example:

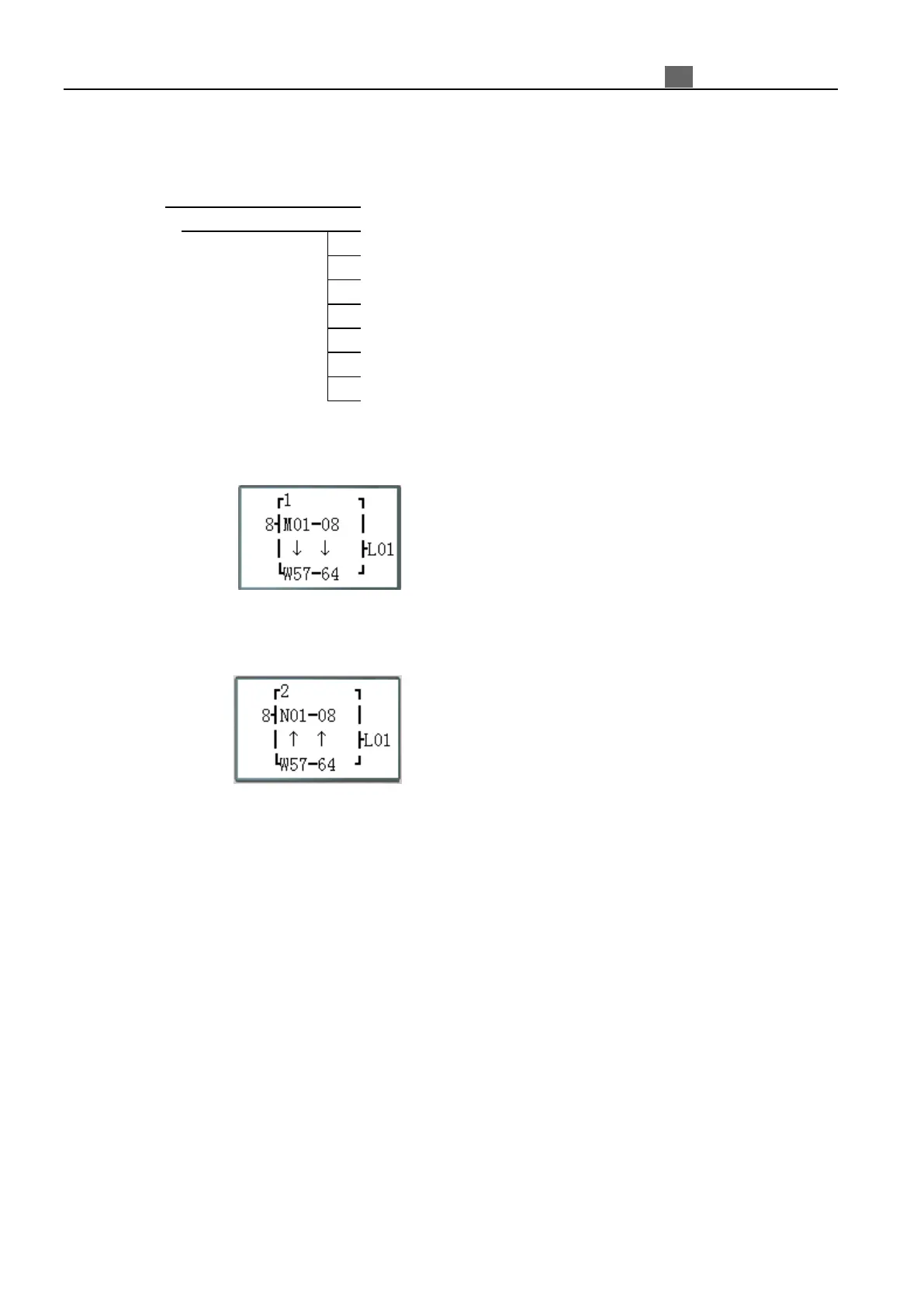

1. Link 8 20 pointes RS485 models iSmart according to the steps of the Hardware Configuration.
2. Create a ladder program as show below in those 8 iSmart.
3. Set L01 of the iSmart which’s ID =7 as fellow illustration.
4. L01 of other 7 iSmart set as fellow illustration.
5. Run program and let I01 of the iSmart which’s ID = 7 on. And M01~M08 will be on state.
6. You will find N01~N08 of other 7 iSmart will be controlled by the M01~M08 of the iSmart which’s ID=7.
L 01
M01
M02
M03
M04
M05
M06
M07
M08
I01
