Chapter 9 Expansion Module 215

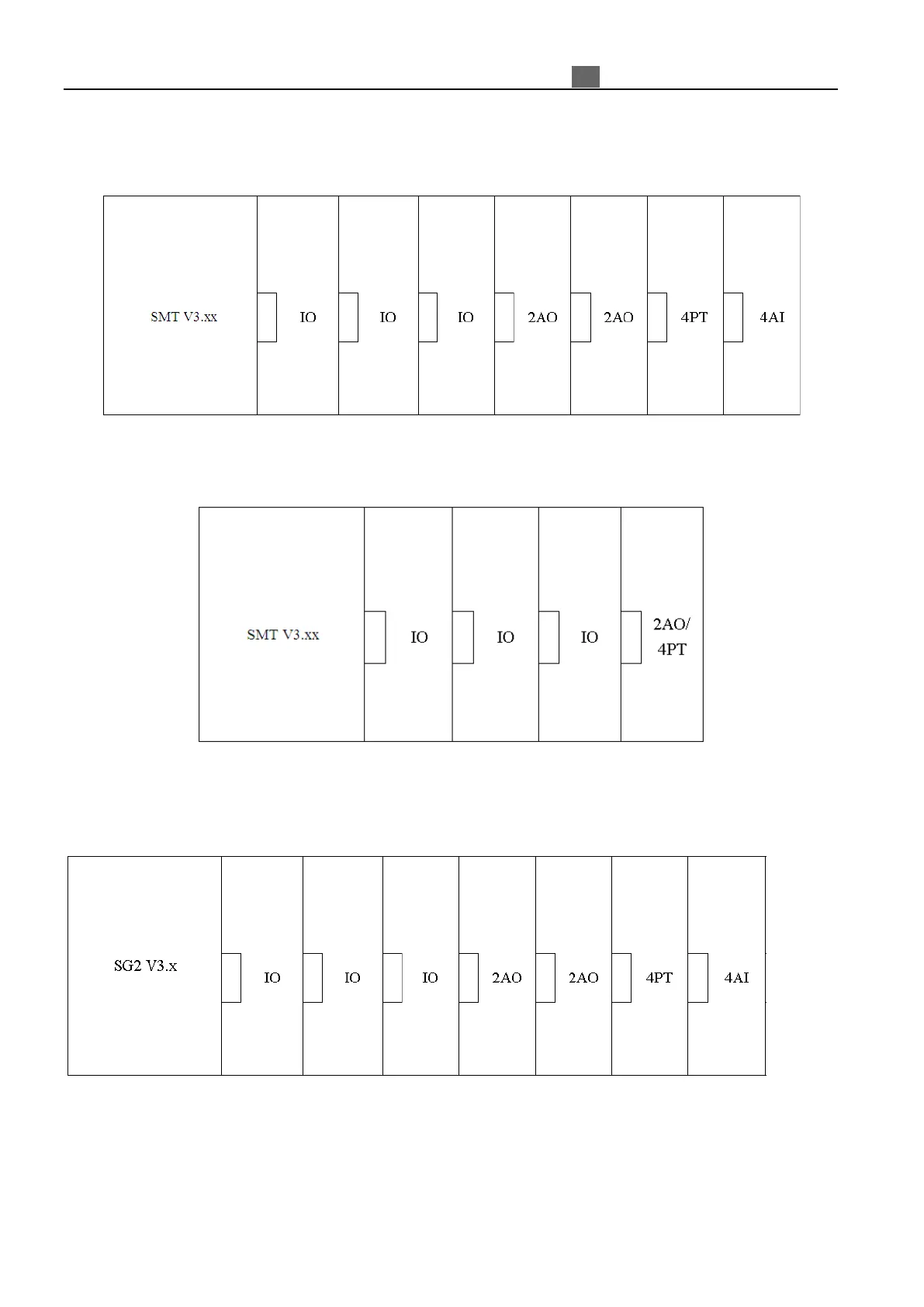

There are 3 kinds of connecting way for expansion modules as shown below.
Mainframe + digital IO * 3 + 4AI*1+
digital IO: SMT-MA-R8 , SMT-MD-8 ,SMT-MD-T8
Mainframe + digital IO * 3 + 2AO*1/4PT*1
※ digital IO: SMT SMT-MA-R8, SMT-MD-R8, SMT-MD-T8, SMT-MA24-R8
※ Either 2AO or 4PT.
Mainframe + digital IO (V3.0) * 3+2AO*2+4PT*1+4AI*1
