Chapter 2 Installation 16
I

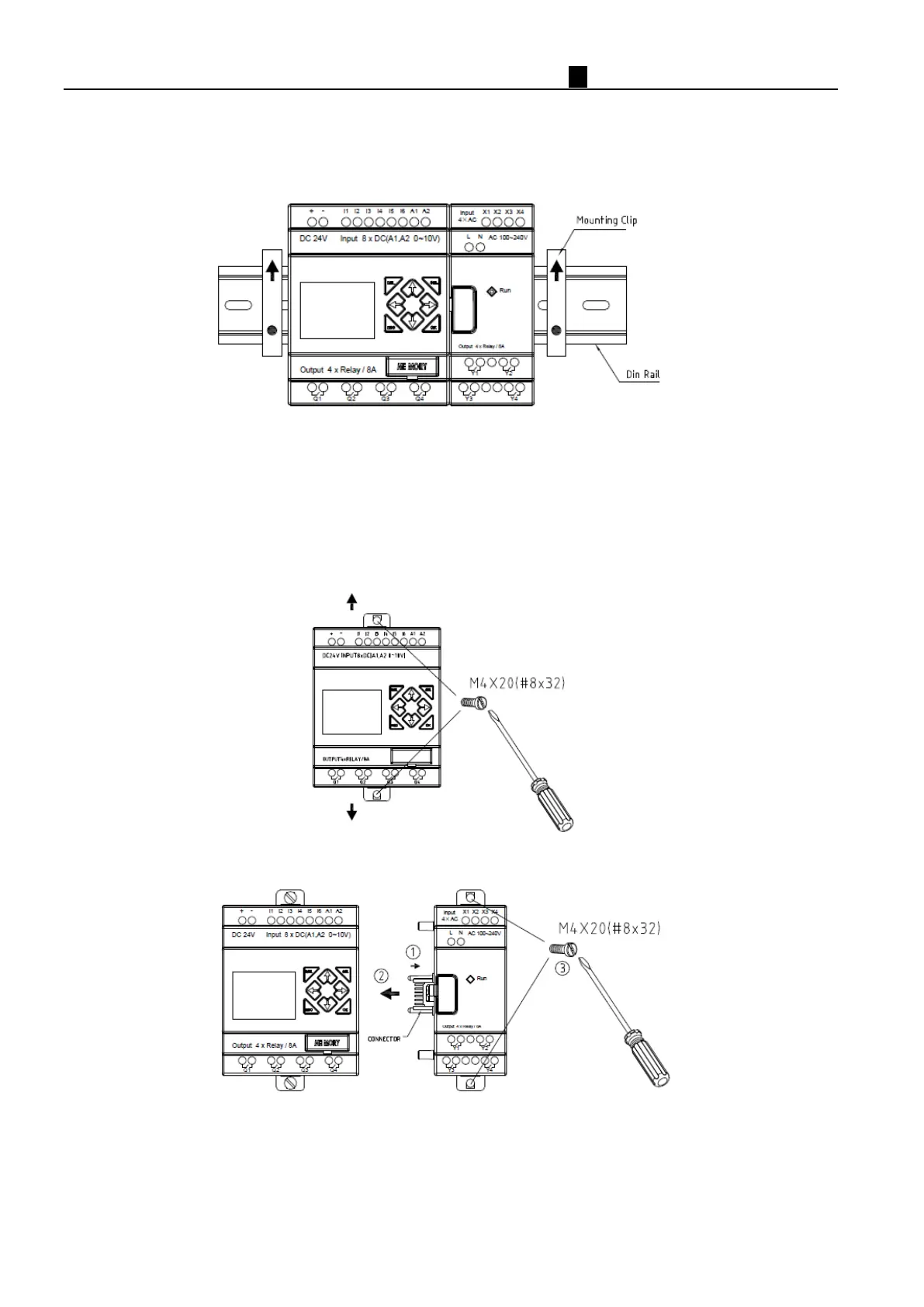

t is recommended to apply a DIN-rail end clamp to hold the iSmart in place.
D
irect Mounting
Use M4 screws to direct mount the iSmart as shown. For direct installation of the expansion module, slide the
expansion module and connect with the Master after the Master is fixed.
