Chapter 5 Relay Ladder Logic Programming 73
-

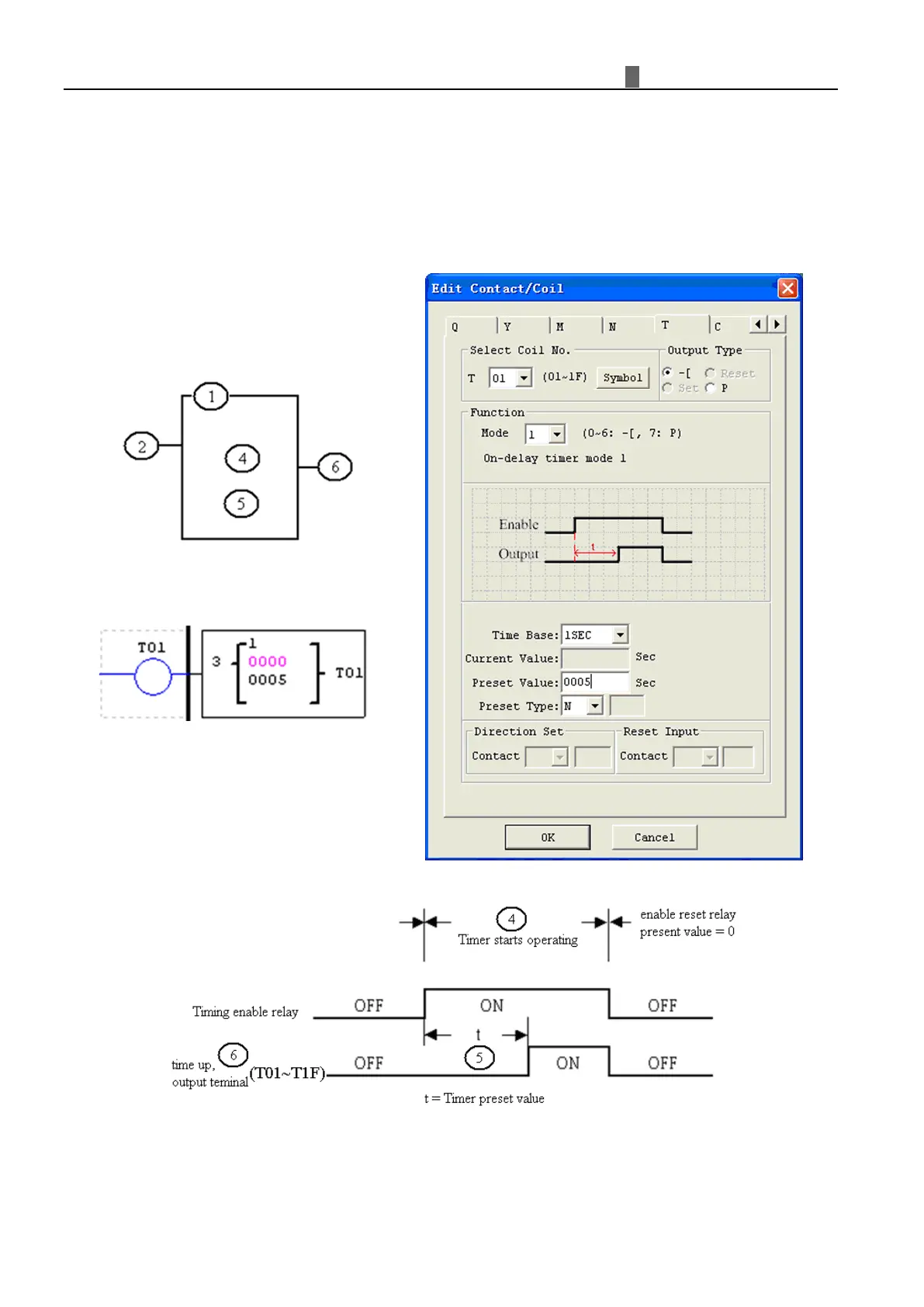

Timer Mode 1 (ON-Delay)
Mode
1 Timer (ON-Delay) will time up to a fixed value and stop timing when the current time is equal to the
pre-set value. Additionally, the Timer current value will reset to zero when Timer is disabled. In the example below,
the timer will stop timing when it reaches the preset value of 5 seconds. Timer contact T01 will be ON when the
current value is 5.
※ T0E and T0F keep their current value after a loss of power to the smart relay if “M Keep” is active, but the others’
reset to 0.
