Chapter 5 Relay Ladder Logic Programming 76
-

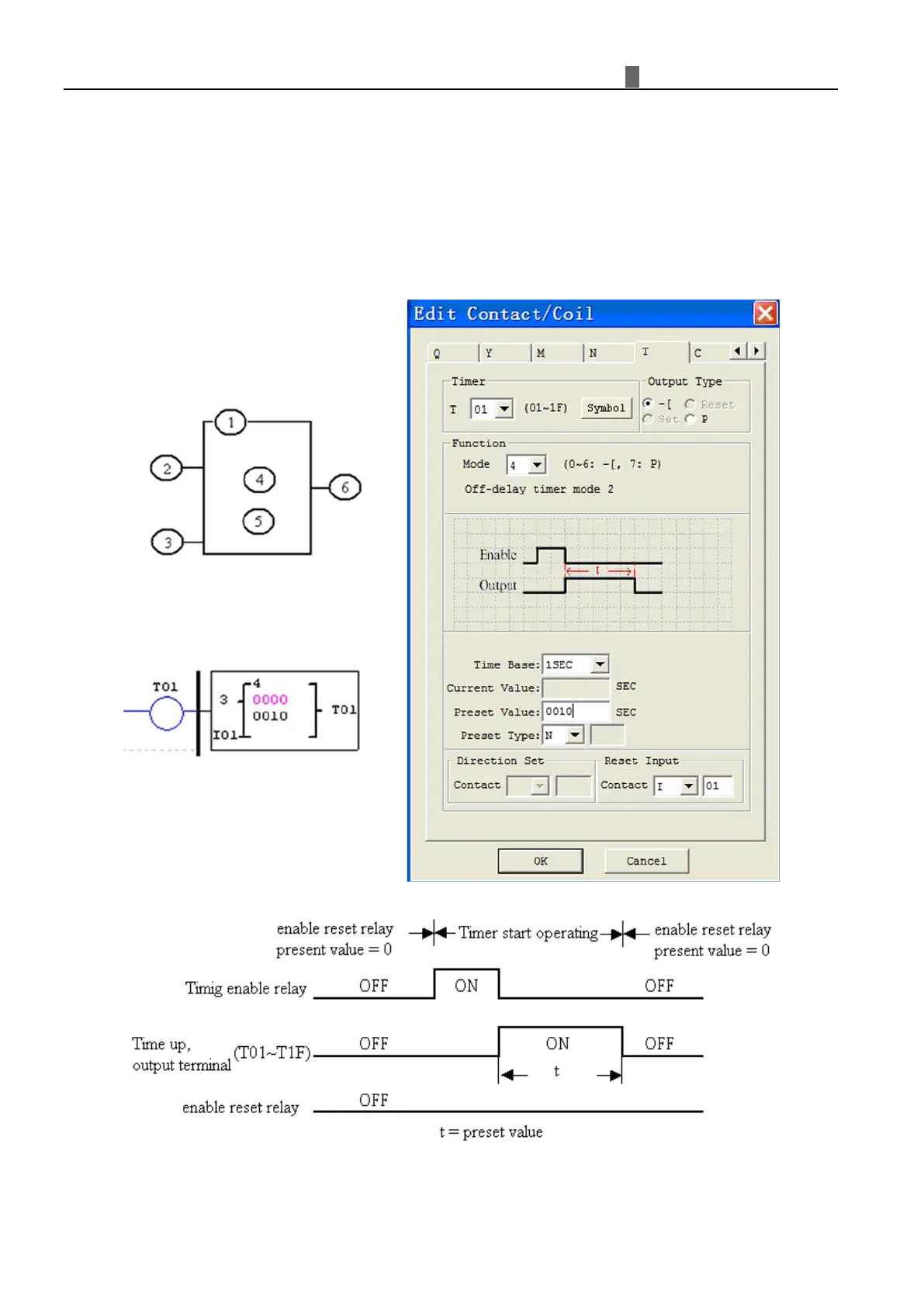

Timer Mode 4 (OFF-Delay)
Mode
4 Timer is an OFF-Delay with reset that will time up to a fixed preset value and stop timing when the
current time is equal to the pre-set value. Additionally, the Timer current value will reset to zero when Timer is
disabled. In the example below, the timer reset input is Input I01. The timer status bit T01 will turn ON only after its
rung transitions from true to false. Timer status bit T01 will turn OFF when the current time value reaches its preset
value of 10 seconds.
※ T0E
and T0F keep their current value after a loss of power to the smart relay if “M Keep” is active, but the others’
reset to 0.
