Chapter 5 Relay Ladder Logic Programming 78
-

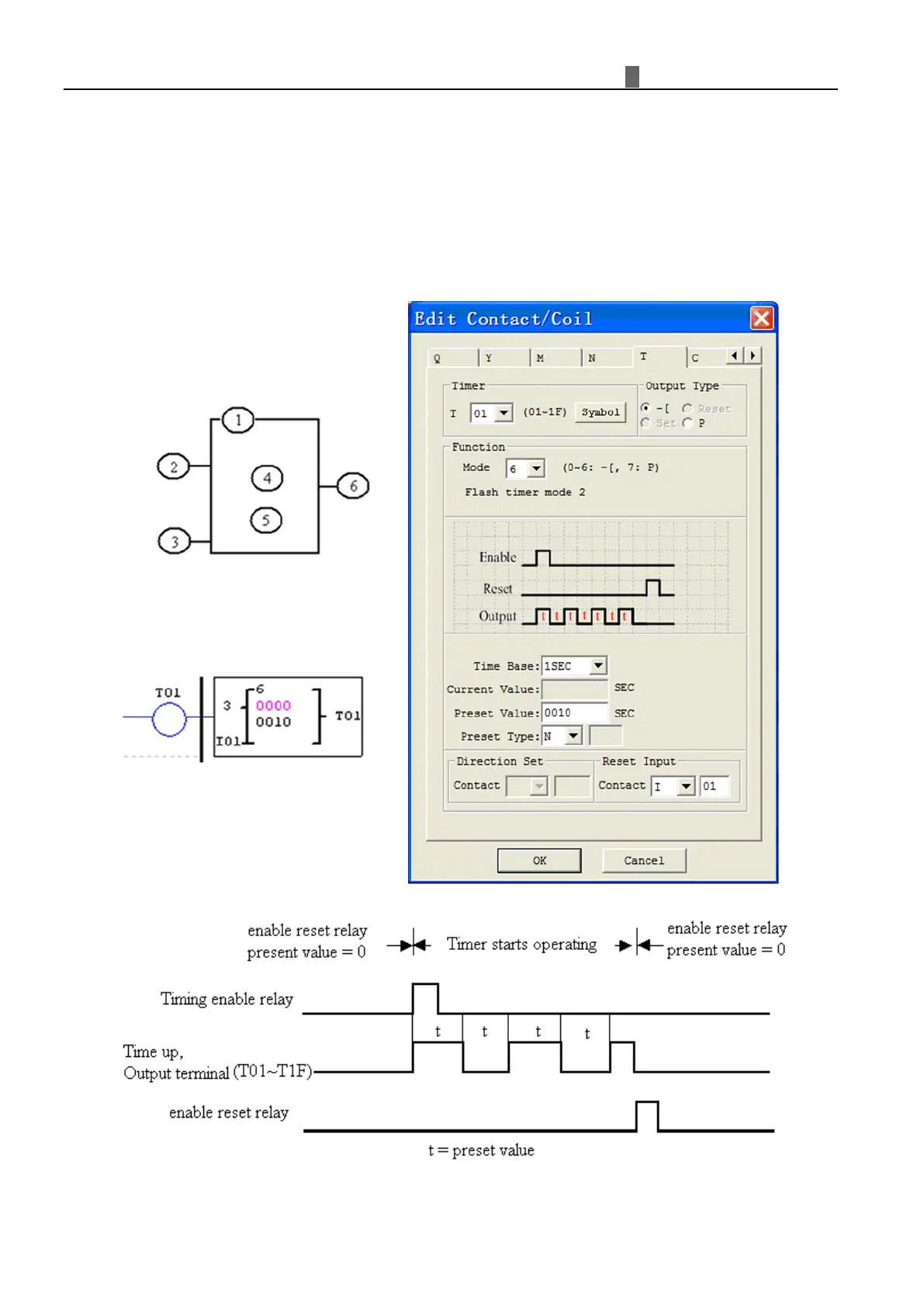

Timer Mode 6 (FLASH with Reset)
Mo
de 6 Timer is a Flash timer with reset that will time up to a fixed preset value and then change the state of its
status bit. Additionally, the Timer current value will reset to zero when Timer is disabled. In the example below, the
timer reset input is Input I01. Timer status bit T01will be ON immediately when its rung is true and begin its timing
sequence. Timer status bit T01 will turn OFF when the current time value reaches its preset of 10 seconds. This Flash
sequence of the timer status bit T01 will continue as long as the reset input signal does not be triggered.
※ The
current value of Timer cannot be kept on a loss of power to smart.
