Chapter 5 Relay Ladder Logic Programming 82
-
Counter Mode 0 (Internal coil)

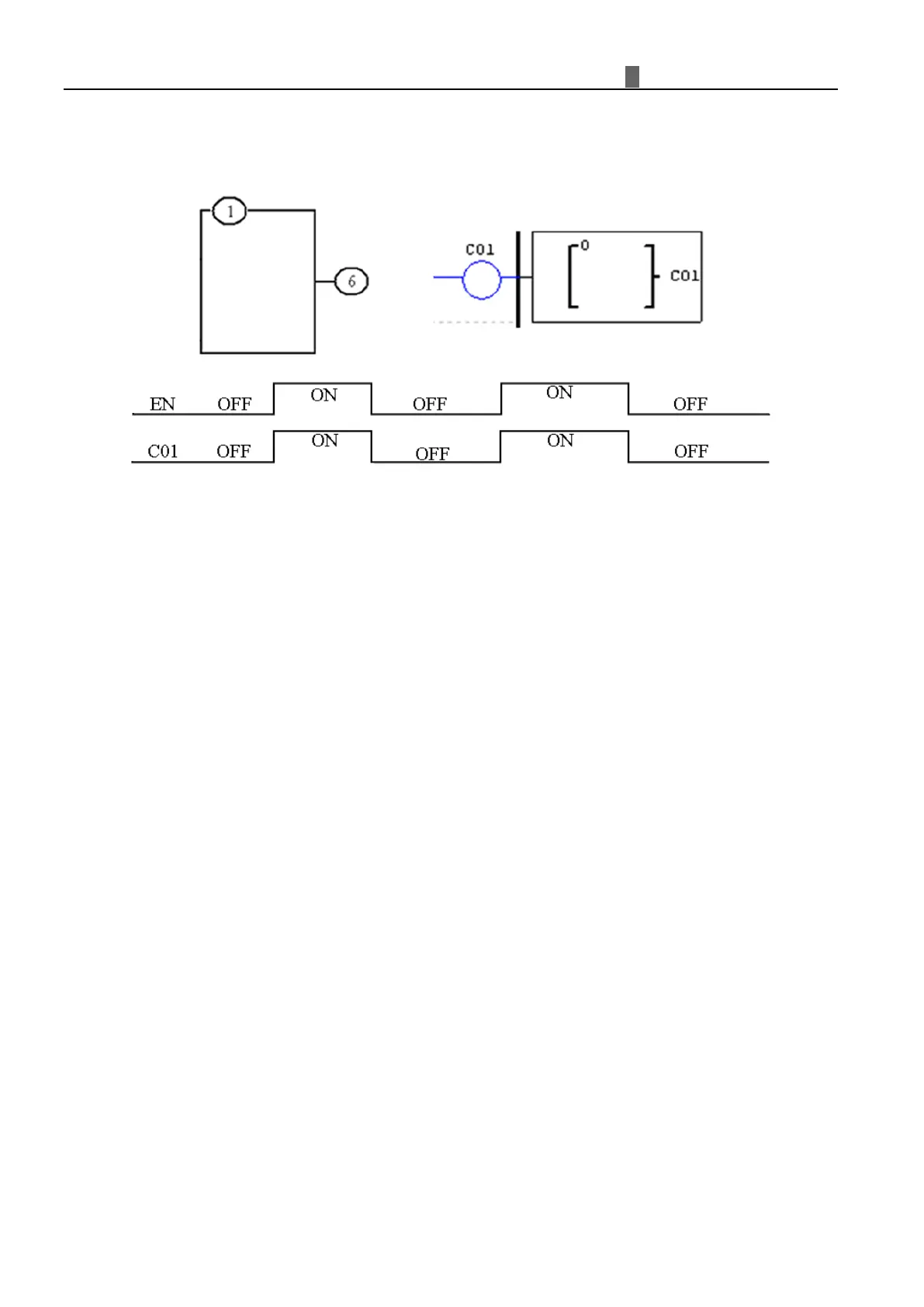

Mode 0 Counter (Internal Coil) used as internal auxiliary coils. No counter preset value. In the example below
shows the relationship among the numbered block diagram for a mode 0 counter, the ladder diagram view, and the
software Edit Contact/Coil dialog box.
