3.1.3 Power Supply Wiring Example

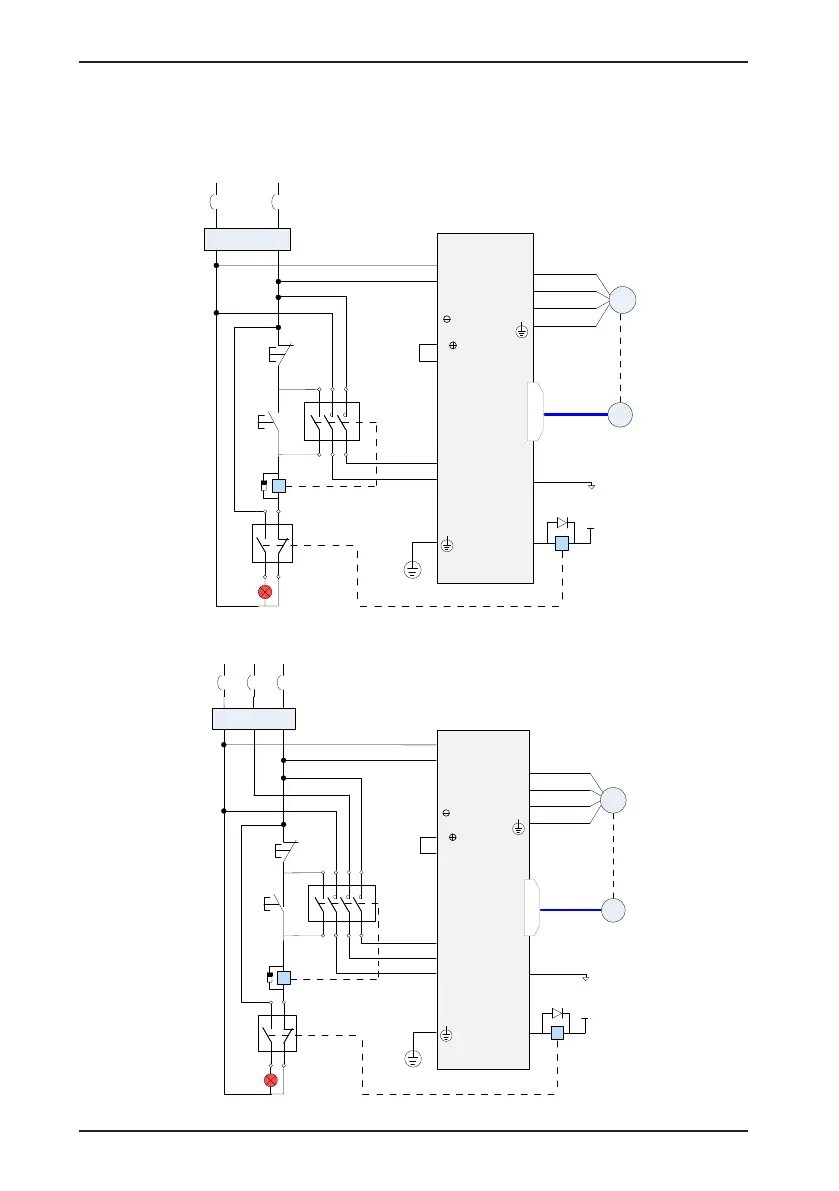

Figure 3-4 Main circuit wiring of single-phase 220 V servo drive
Noise filter
L1C
L2C
L1
L2
U
V
W
ALM-
ALM+
24V
COM
P
D
C
CN2
Single-phase 220 VAC
1RY
1KM
Surge
suppressor
1D
Main circuit
power input
contactors
RUN
button
Stop
button
Fault output
relay
Fault
indicator
Fault signal
output
IS620P servo drive
PG
M
Figure 3-5 Main circuit wiring of three-phase 220/380 V servo drive
Noise filter
L1C
L2C
R
S
T
U
V
W
ALM-
ALM+
24V
COM
P
D
C
CN2
Three-phase 220/380 VAC
Surge
suppressor
1D
1RY
1KM
Main circuit
power input
contactors
RUN
button
Stop
button
Fault output
relay
Fault
indicator
Fault signal
output
IS620P servo drive
M
PG
