Inovance IS620P Series - Physical Appearance of Cables for the Servo Motor and Servo Drive

IS620P User Manual Chapter 1 Servo System Selection
- 13 -

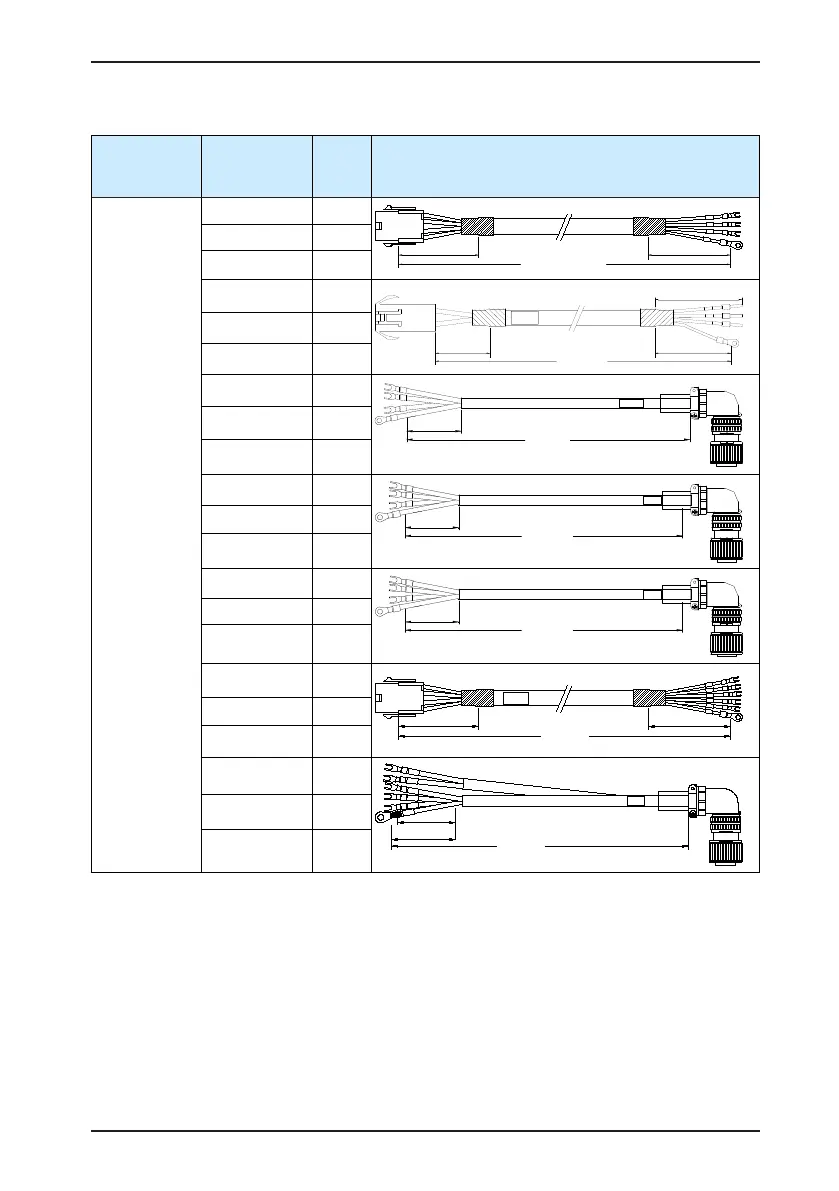

Table 1-4 Physical appearance of cables for the servo motor and servo drive
Cable Name Cable Model
Cable
Length
(mm)
Cable Appearance
Servo motor
main circuit
cable
S6-L-M00-3.0 3000
L±20 mm
100±10 mm30 mm
S6-L-M00-5.0 5000
S6-L-M00-10.0 10000
S5-L-M03-3.0 3000
100±5 mm
100±5 mm
L±30 mm
25±5 mm
S5-L-M03-5.0 5000
S5-L-M03-10.0 10000
S6-L-M11-3.0 3000
L±30 mm
50 mm
S6-L-M11-5.0 5000
S6-L-M11-10.0 10000
S6-L-M12-3.0 3000
L±30 mm
50 mm
S6-L-M12-5.0 5000
S6-L-M12-10.0 10000
S6-L-M22-3.0 3000
L±30 mm
50 mm
S6-L-M22-5.0 5000
S6-L-M22-10.0 10000
S6-L-B00-3.0 3000
30 mm
L±20 mm
200±10 mm
S6-L-B00-5.0 5000
S6-L-B00-10.0 10000
S6-L-B11-3.0 3000
L±30 mm
200 mm
130 mm
S6-L-B11-5.0 5000
S6-L-B11-10.0 10000
