Menu Option 3, Charging Cycles
When LED 3 is blinking, menu option 3 can be activated by a long push.
The LEDs show the current Intel
®
Powerpack™ Battery charging cycles, i.e. how often the Intel
®
Powerpack™ Battery was charged.

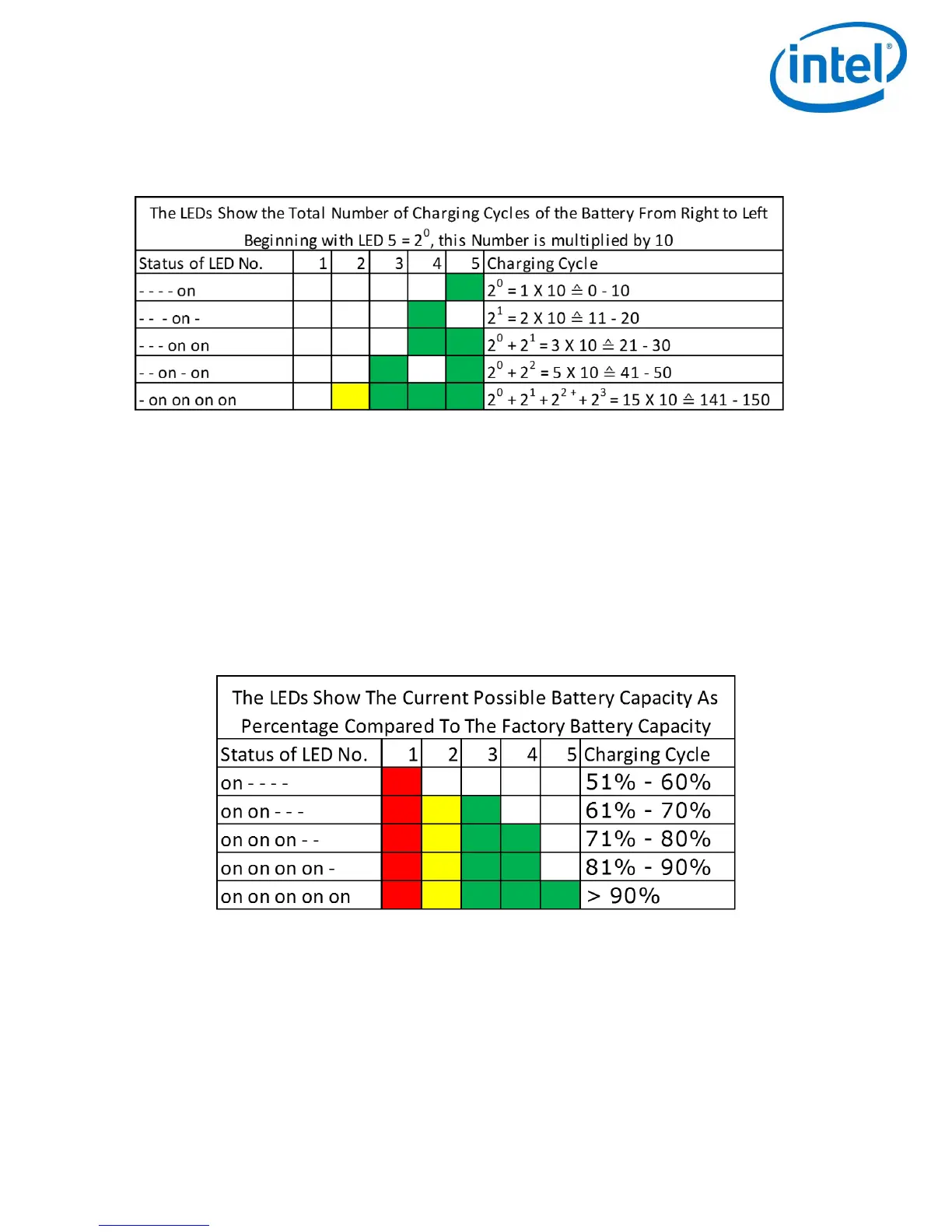

The total number of charging cycles is shown via the LEDs in a binary system by powers of 2
from right to left multiplied by 10.
Menu Option 4: Over All Capacity
Menu option 4 shows the current possible amount of charge the Intel
®
Powerpack™ Battery may
hold when fully loaded as a percentage compared to the factory Intel
®
Powerpack™ Battery
capacity.
Menu Option 5: Intel
®
Powerpack™ Battery Status
Menu option 5 shows the difference (in percentage) between the highest measured cell voltage
and the lowest measured cell voltage, measured at the same time.
The BMS tries to balance the charging status of all 4 Intel
®
Powerpack™ Battery cells to the same
level. By measuring the difference between the highest cell voltage and the lowest cell voltage
the actual battery status is determined.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
