Intel FALCON 8+ Flight Manual

MAINTENANCE MANUAL
INTEL
®
FALCON™ 8+ UAS
DESCRIPTION
92 © 2017 Intel Corporation. All rights reserved.
REV 00
APR 2017

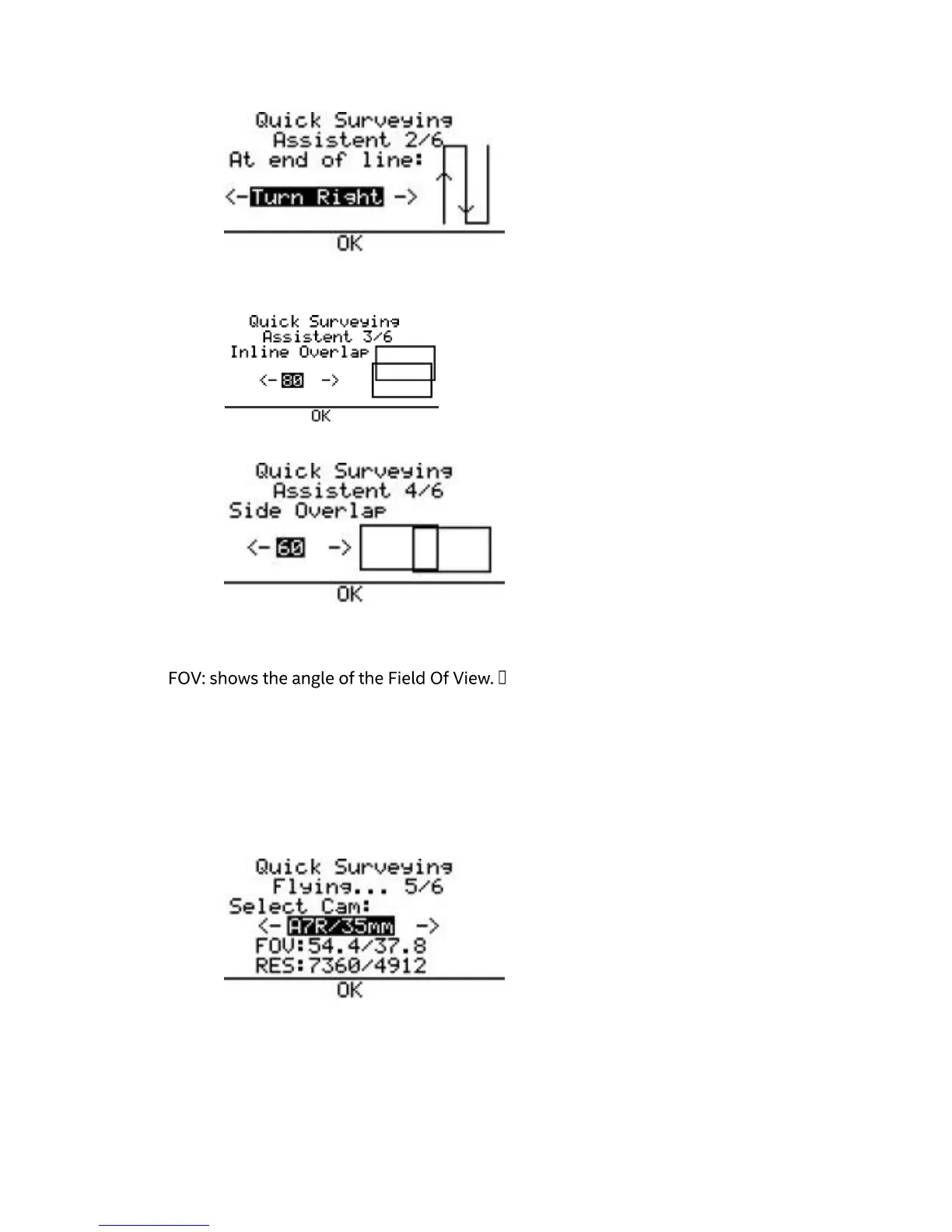

 Inline Overlap: Define the percentage of image overlap in the direction of flight (along
track).
 Side Overlap: Define the percentage of image overlap between the lines (cross track).
 Select Cam: Select camera/lens combination attached to the Intel
®
Falcon™ 8+ UAS. The
most commonly used cameras are available as a preset.

 RES: shows the resolution of the single picture in pixels.
 The convention is to describe the pixel resolution with the set of two positive integer
numbers, where the first number is the number of pixel columns (width), and the second
is the number of pixel rows (height), for example as 7680 by 6876.
 If the camera is not available as a preset, chose one from the list, which matches the
resolution and field of view.
 Ground Sampling Dist.: Define the required ground sample distance (GSD). The resulting
flight altitude (Height) is calculated and shown above the value of the GSD.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
