Interroll MultiControl User Manual

Interface Box for VDC Motors
120 Operating and Programming
10 Interface Box for VDC Motors

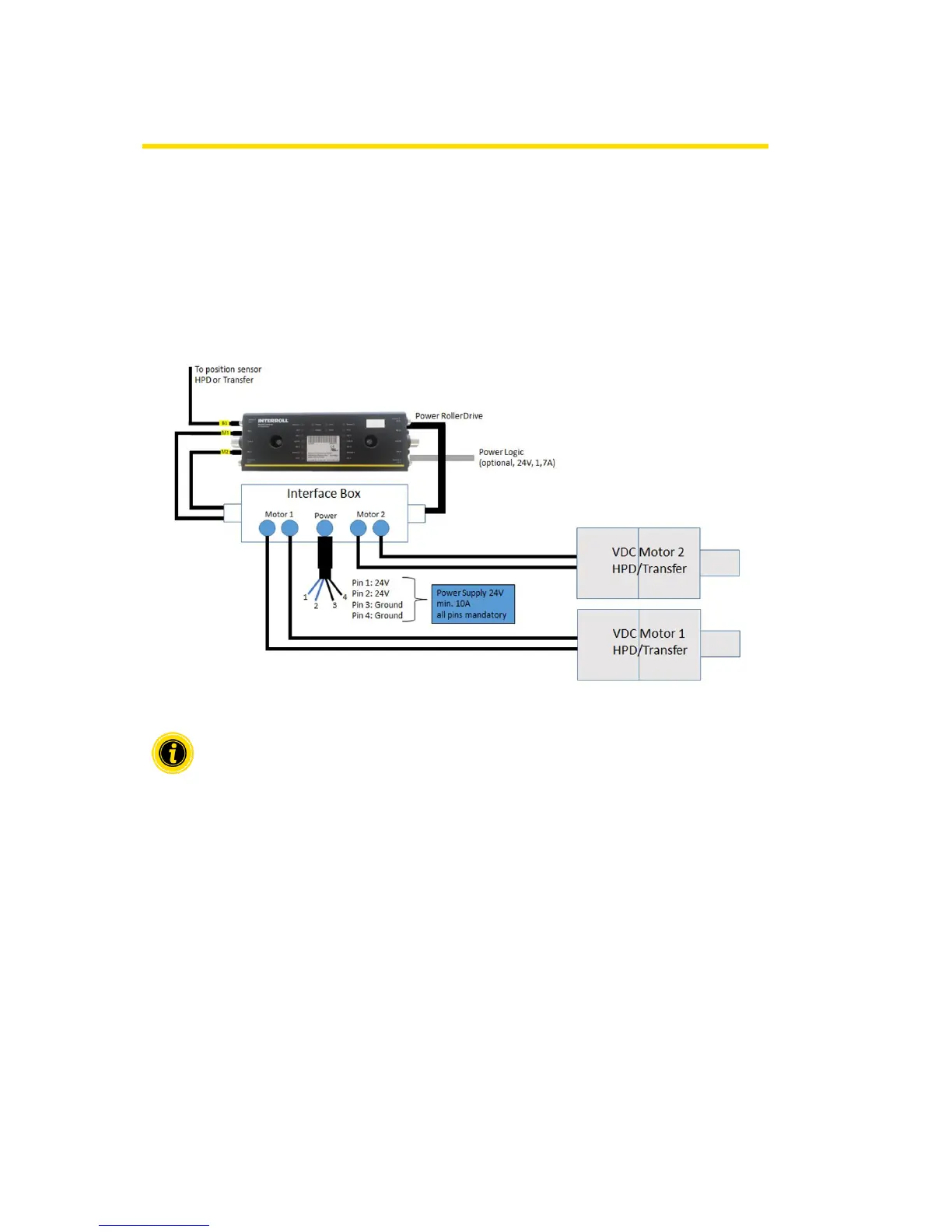

The interface box is the interface between the MultiControl and the VDC motors of the transfer
or the HPD. The MultiControl is powered by the Interface Box.
The two motors and the external power supply with M12 plugs are connected to the interface
box.
The operating status of the interface box and the drives is signalled by the status LED.
With the HPD, a homing must be performed each time "Power RollerDrive" is
switched on.

Interroll MultiControl Specifications

General

Power Supply	24 VDC
Rated Voltage	24 VDC
Storage Temperature	-20 °C to +70 °C
Communication Protocols	Ethernet/IP, PROFINET, EtherCAT, CANOpen
Number of Channels	4
Weight	0.5 kg
