Interroll MultiControl User Manual

Description of the control programs
Operating and Programming 29

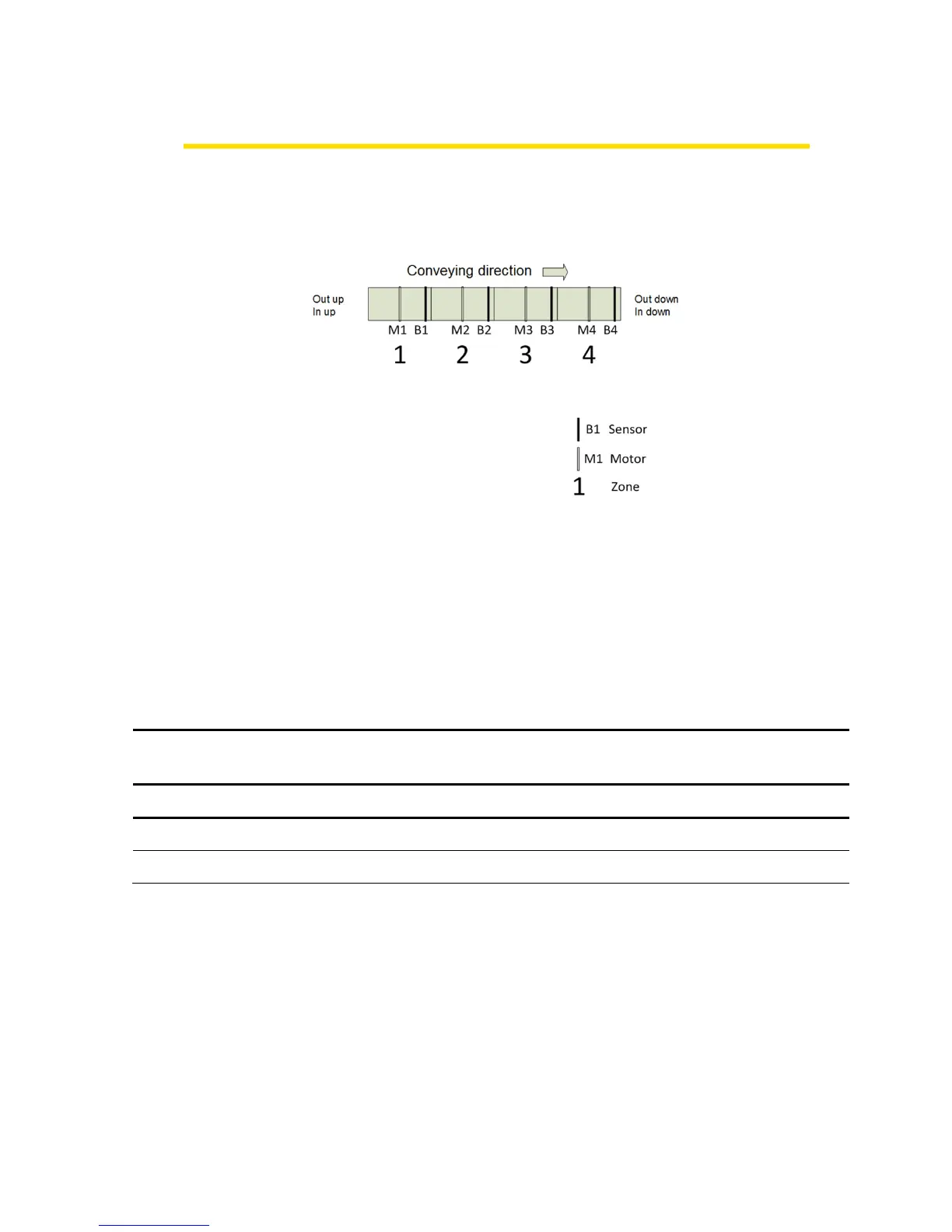

Handover (Handshake Signals)
The exchange of the required information for the transport of conveyed items between the
MultiControl and an external control takes place via handshake signals.
Out Up = Signal from MultiControl Zone 1 is free
In Up = Signal to MultiControl Receive conveyed items in Zone 1
Out Down = Signal from MultiControl Zone 4 is blocked
In Down = Signal to MultiControl Discharge conveyed items from Zone 4
PII - Handshake Signals
ID
Zone
Digital I/O Setting
PLC-Reference
(Read)
Byte
Bit
Out Up
Signal first zone free
Handshake Out Up
I: 29
4
Out Down
Signal last zone blocked
Handshake Out Down
I: 29
5

Interroll MultiControl Specifications

General

Power Supply	24 VDC
Rated Voltage	24 VDC
Storage Temperature	-20 °C to +70 °C
Communication Protocols	Ethernet/IP, PROFINET, EtherCAT, CANOpen
Number of Channels	4
Weight	0.5 kg
