iPECS UCP
Hardware Description and Installation Manual Issue 1.3
99

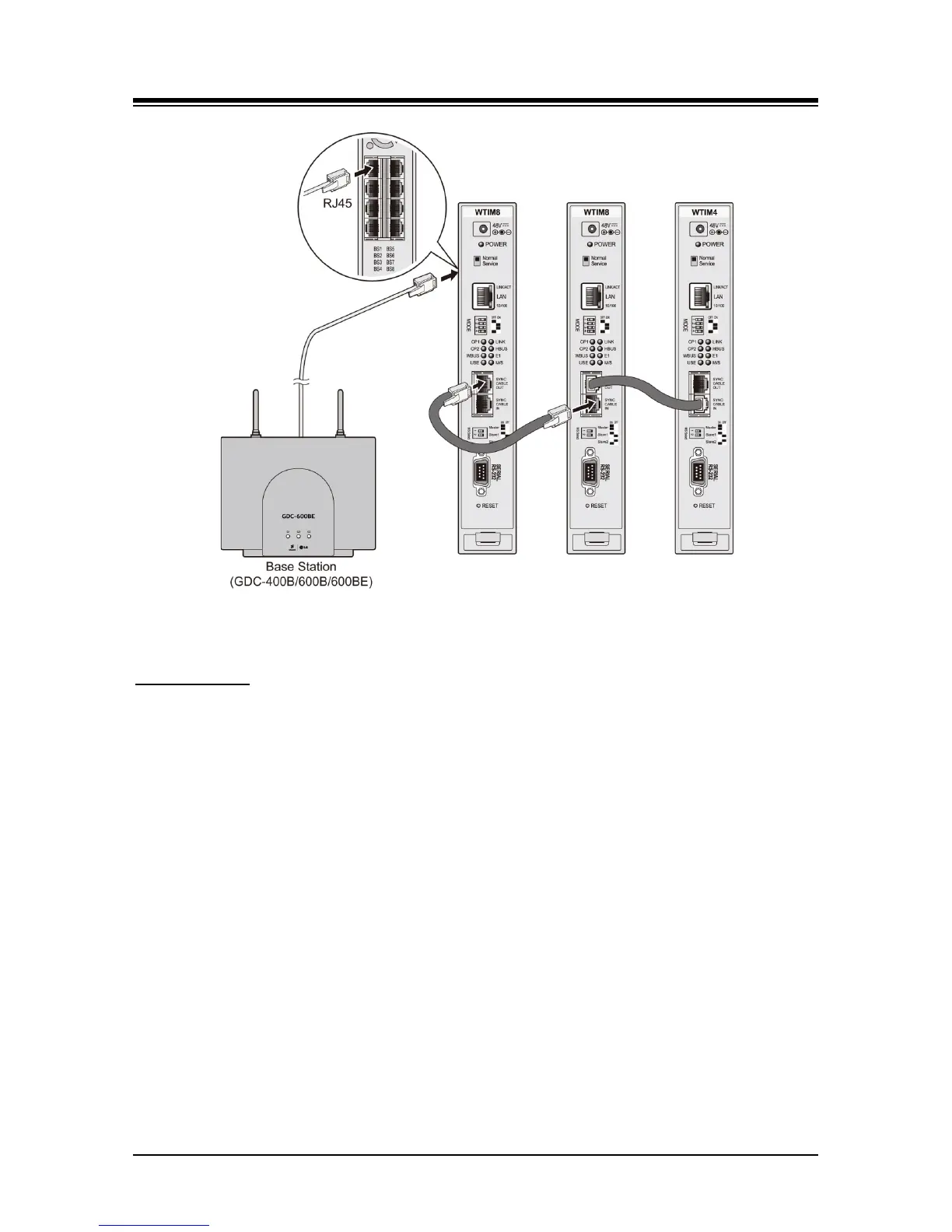

Figure 6.16-1 Cascading connections of WTIM4/8
AC/DC Adapter
If a PSU is not employed, assure the AC/DC Adapter is plugged into a live AC outlet and the
Module Power jack.
