jcb Robot 160 - Page 85

Section 3 - Maintenance
Routine Maintenance
Electrical System
3 - 30 3 - 30
9803/9450-1
Relays
The relays are located under fuse cover on the right hand
side of the cab as shown in the illustration.

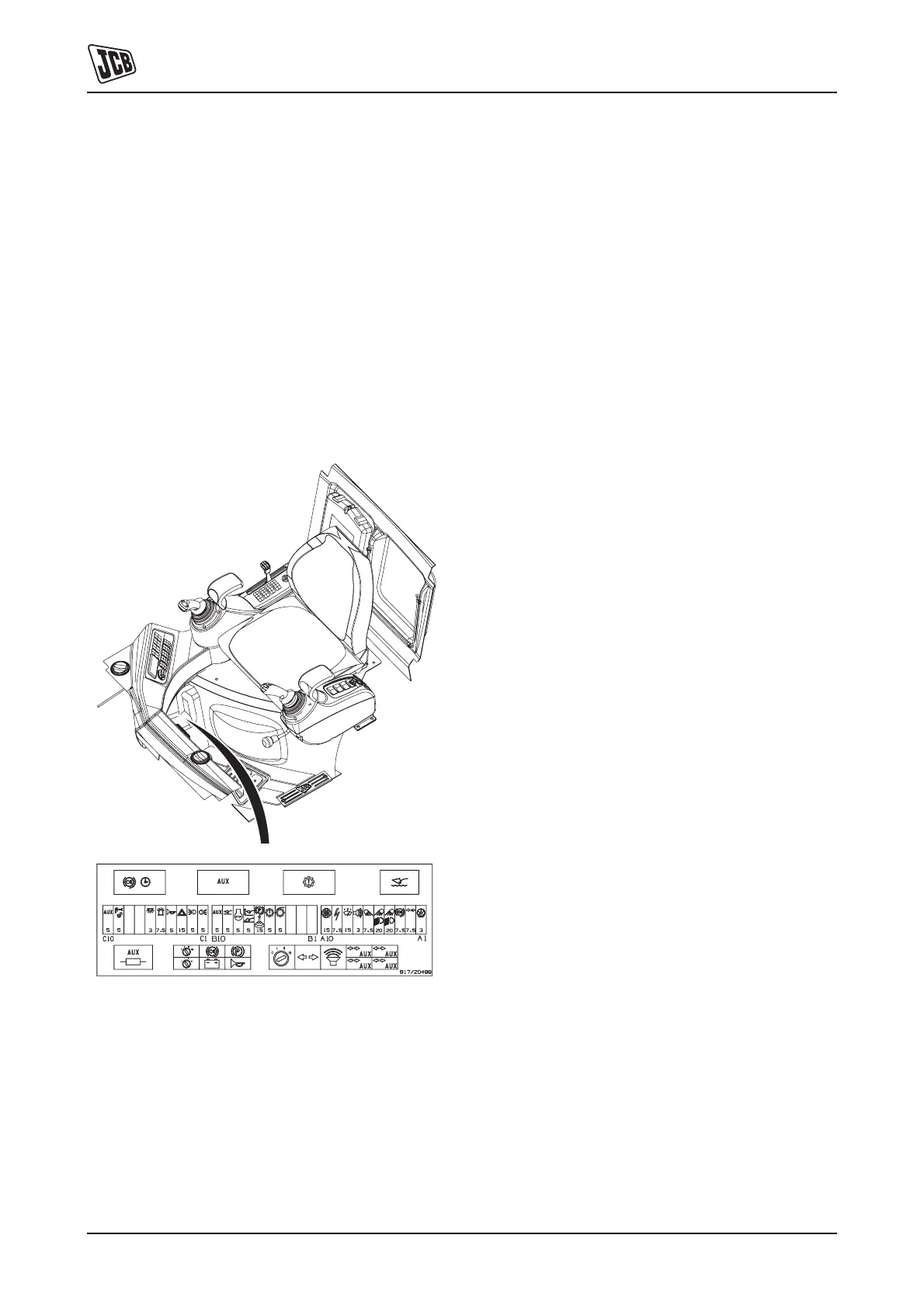

Fig 14.
A Ignition
B Brake Lights, Alternator
C Park Brake, Horn
D Neutral Start
E Indicators
F Reverse Alarm
G Indicators/Attachment Changeover Solenoid
H Indicators/Attachment Changeover Solenoid
J Float
