7.5.8 Setting the Rectifier Unit (NBA-3308)
The rectifier unit is commonly used for the ship’s mains of 100/110/115 VAC and 200/220/230 VAC. In
this case, however, it is necessary to change the connection of input terminals on T701.
Fig. 7.8 shows the method.

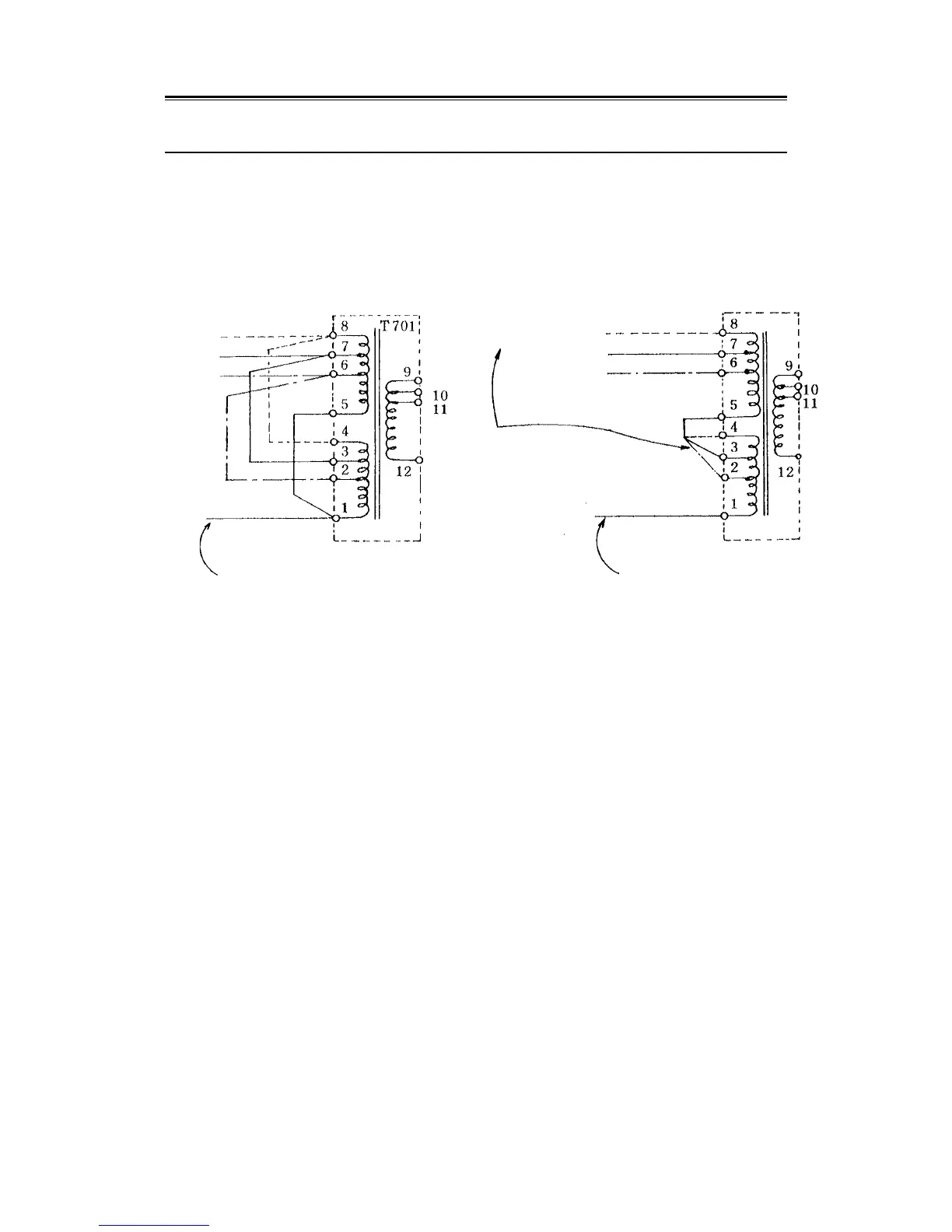

Tap changing procedures on T701
Fig. 7.8 Rectifier ModelNBA-3308
This connections shall not be changed. This connections shall not be changed.
Change connections
according to the
input voltage.
Change connections
according to the input
voltage.
In case of 230 V
In case of 220 V
In case of 200 V
