3 – 19
3.3
Motion of Parallel Index Line
◎ The parallel index line rotate in the same direction as the EBL control ( q and w ).
◎ The parallel index line interval can be changed by rotating the VRM control ( e and r ).
◎ The angle of the parallel index line is displayed in the EBL2 box on the lower left of the screen.
◎ The interval of the parallel index line is displayed in the VRM2 box on the lower left of the screen.

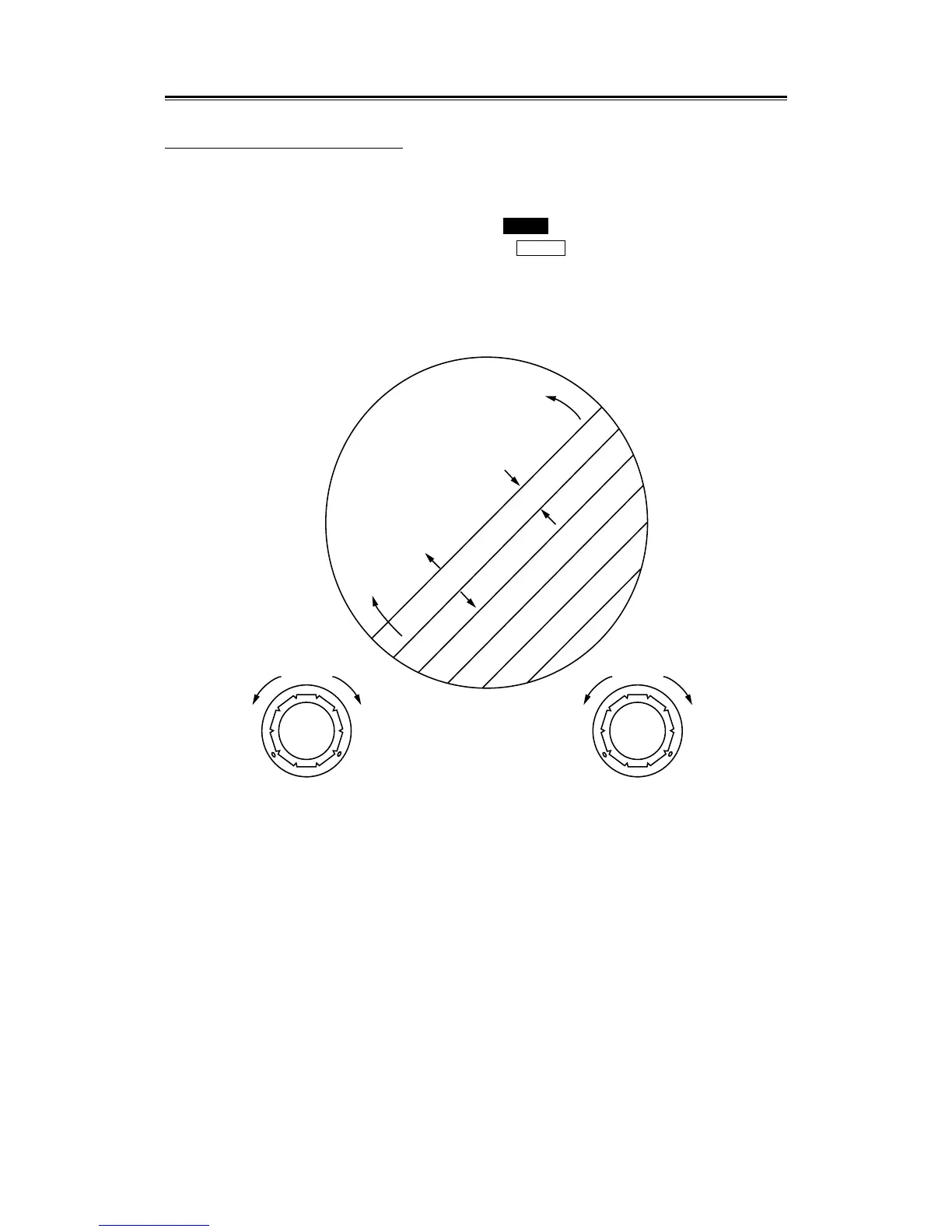

Display of parallel index line
➀
➂
➃
➁
➁➀
EBL
➃➂
VRM
<Changing parallel index line interval>
◎ The bearing and interval of the parallel index line can be changed in the operation mode of EBL2 or
VRM2 respectively.
