1. Attach the wall-mount brackets to the sides of the chassis using four of the
wall-mount bracket screws on each side, as shown in Figure 33 on page 71.

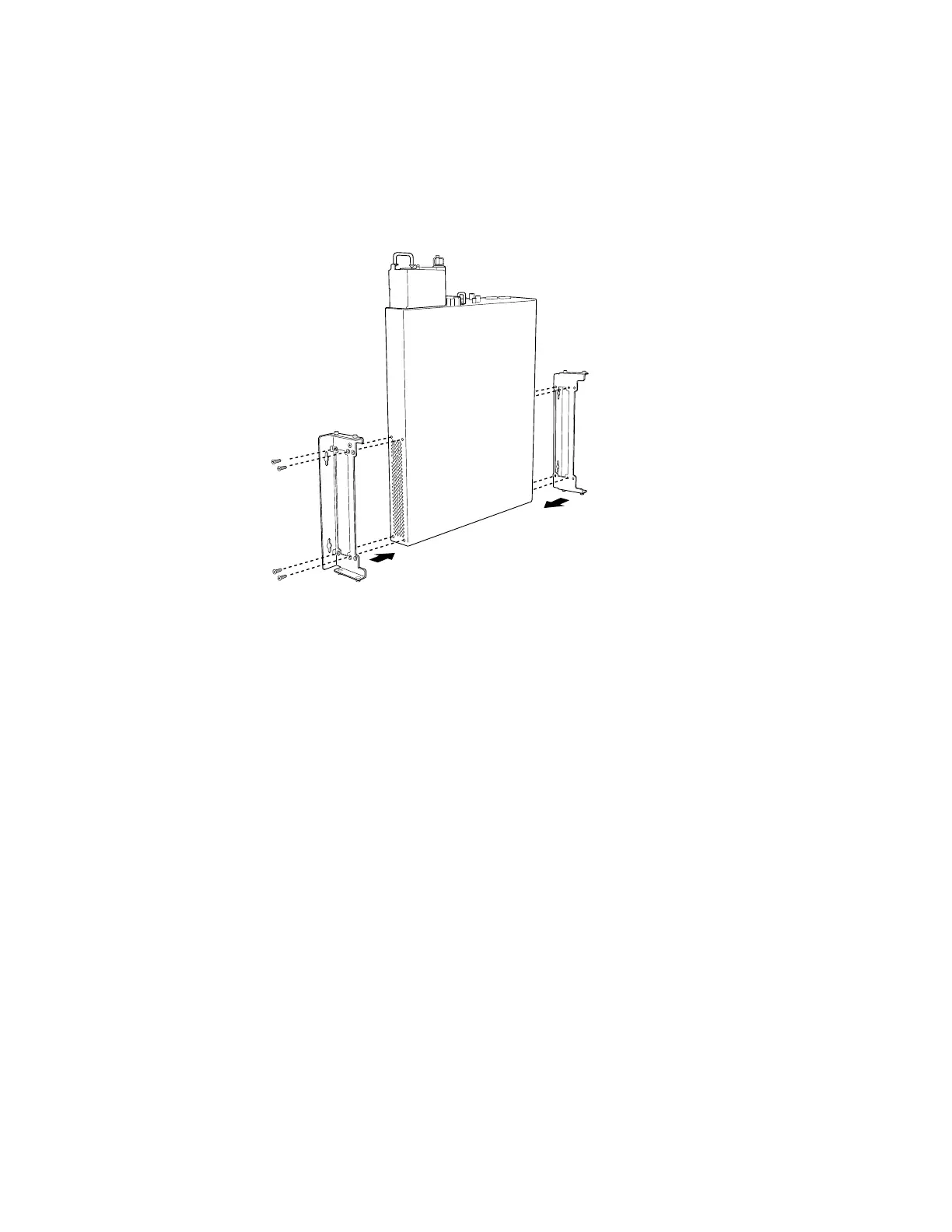

Figure 33: Attaching Wall-Mount Brackets to the EX-series Switch Chassis
2. If you are mounting two switches together, line the second switch on top of the
first and attach it to the mounting brackets using two wall-mount bracket screws
on each side (see Figure 34 on page 72).
3. Insert the mounting screws in the wall. Insert the top pair of mounting screws
474.35 mm apart, and insert the second pair of mounting screws 151.81 mm
directly below the first set.
If the mounting screws are inserted in wall board with no stud behind it, you
must use dry wall anchors rated to support 75 lb (34 kg). Insert the screws into
wall studs wherever possible to provide added support for the chassis.
Screw only part way in, leaving about 1/4 inch (6 mm) distance between the
head of the screw and the wall.
4. Grasp each side of the switch or switches, lift the switch or switches, and hang
the brackets from the mounting screws as shown in Figure 34 on page 72.
Mounting an EX 3200 or EX 4200 Switch on a Wall ■ 71
Chapter 3: Installing the Switch
