2-Port 10-Gigabit Ethernet XPIM Overview
The 2-Port 10-Gigabit Ethernet XPIM provides a connection to high-speed Ethernet
networks through branch WAN service and allows carriers to provide multiple levels of
Ethernet service with a single connection option for all service ranges.
The 2-Port 10-Gigabit Ethernet XPIM can be installed only in the following slots, which
provide 20G connectivity to the Services and Routing Engine (SRE) switch:
•
Slot 6 on the SRX550 Services Gateway. See Figure 17 on page 83.
•
Slots 2 and 6 on the SRX650 Services Gateway. See Figure 18 on page 83.

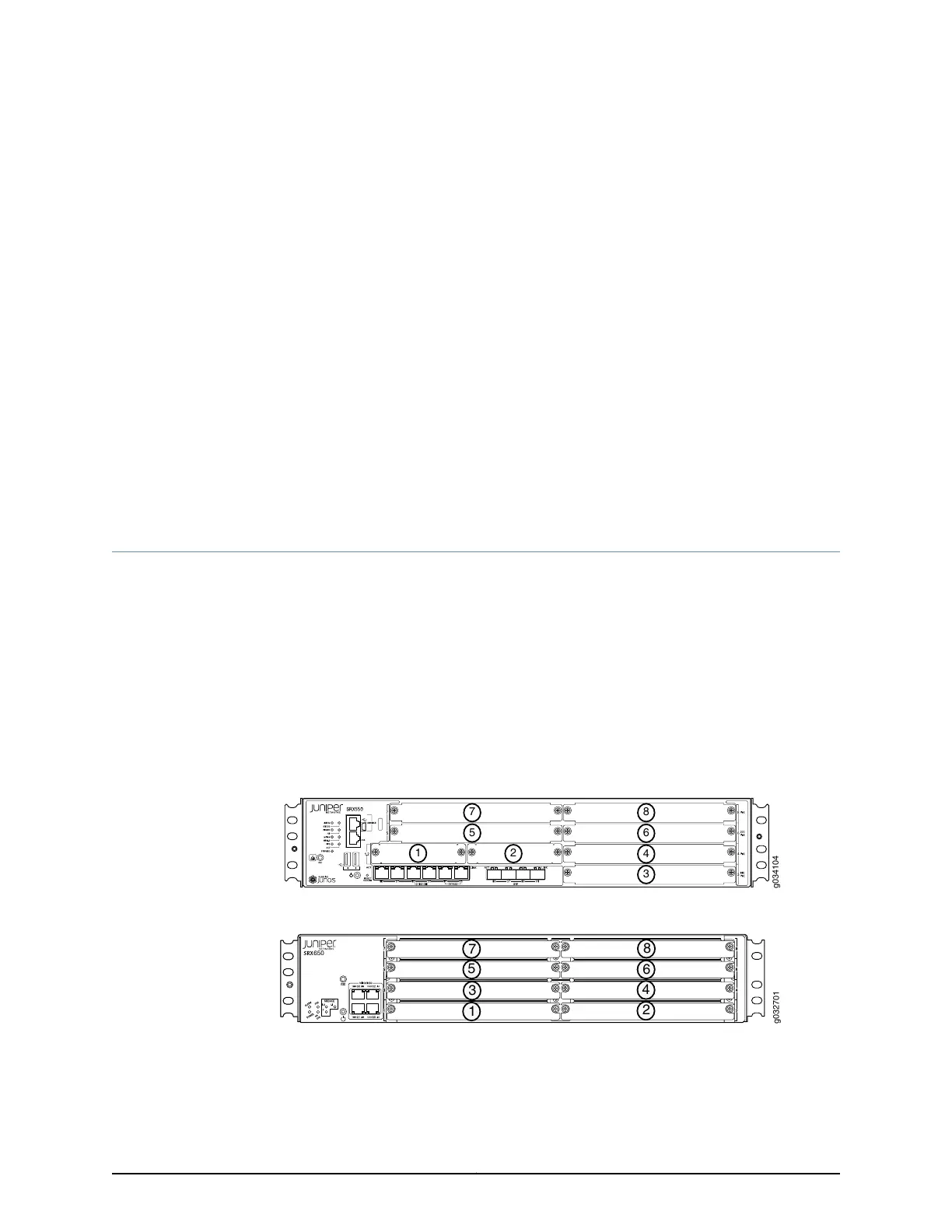

Figure 17: SRX550 Services Gateway Slot Numbers
g034104
1
3
2
4
6
8
5
7
Figure 18: SRX650 Services Gateway Slot Numbers
650
g032701
8
7
5
3
1
6
4
2
The 2-Port 10-Gigabit Ethernet XPIM contains two 10-Gigabit Ethernet interfaces with
both copper and small form-factor pluggable plus transceiver (SFP+) terminations, to
support redundancy and enable the services gateway to be used as a pure security service
83Copyright © 2015, Juniper Networks, Inc.
