Juniper SRX Series User Manual

CHAPTER 8
1-Port Serial Mini-Physical Interface
Module
•
1-Port Serial Mini-Physical Interface Module Overview on page 61
•
1-Port Serial Mini-Physical Interface Module Key Features on page 62
•
1-Port Serial Mini-Physical Interface Module Hardware Specifications on page 62
•
1-Port Serial Mini-Physical Interface Module LEDs on page 63
•
1-Port Serial Mini-Physical Interface Module Supported Standards on page 63
1-Port Serial Mini-Physical Interface Module Overview
Serial WAN links are bidirectional links and require very few control signals. In a basic
serial setup, the data circuit-terminating equipment (DCE) is responsible for establishing,
maintaining, and terminating a connection. A modem is a typical DCE device. A serial
cable connects the DCE to a telephony network where, ultimately, a link is established
with data terminal equipment (DTE). DTE is typically where a link terminates.

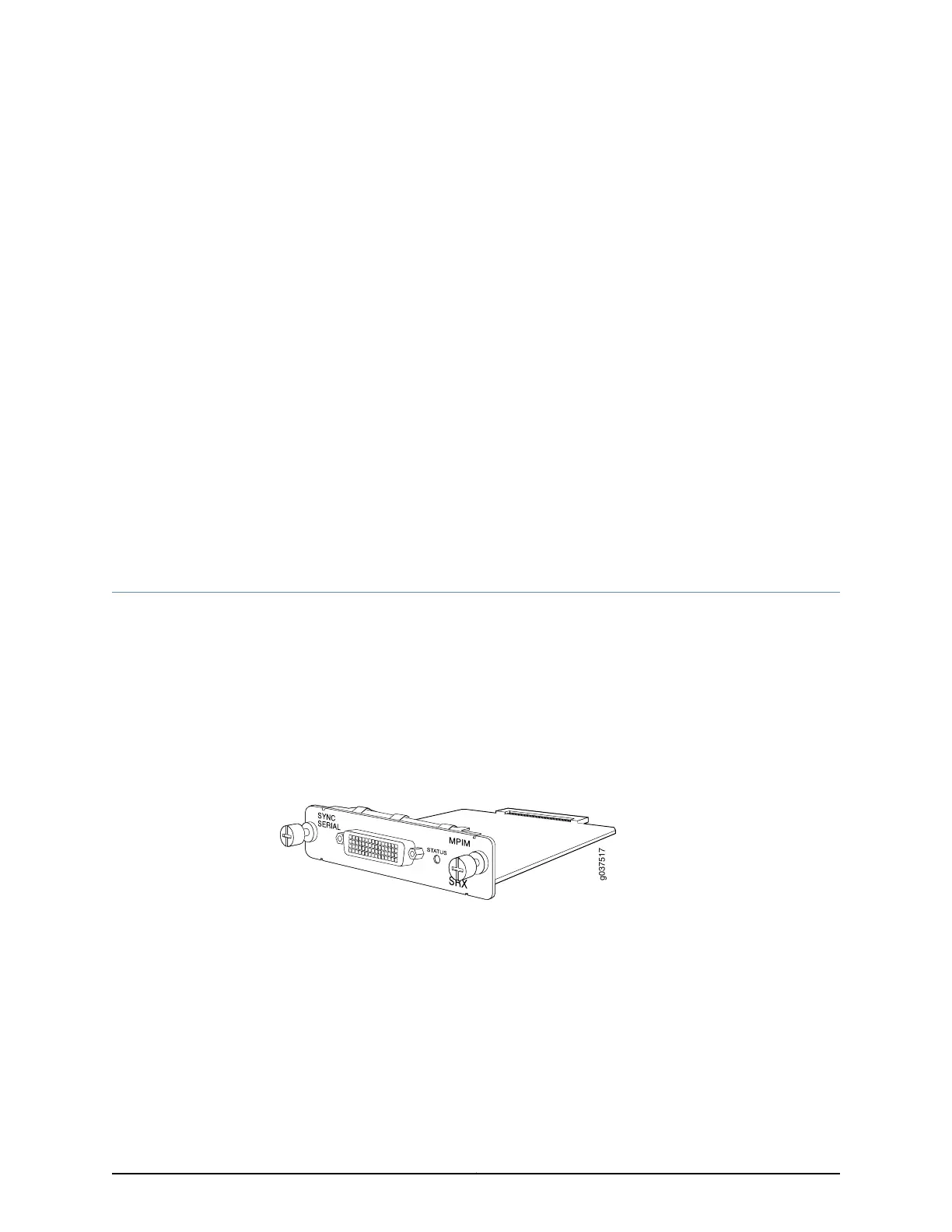

Figure 13 on page 61 shows the front panel of the 1-Port Serial Mini-Physical Interface
Module (Mini-PIM).
Figure 13: 1-Port Serial Mini-PIM Front Panel
g037517
Related
Documentation
1-Port Serial Mini-Physical Interface Module Hardware Specifications on page 62•
• 1-Port Serial Mini-Physical Interface Module Supported Standards on page 63
• 1-Port Serial Mini-Physical Interface Module Key Features on page 62
• 1-Port Serial Mini-Physical Interface Module LEDs on page 63
• 1-Port Serial Mini-Physical Interface Module Basic Configuration on page 214
