Juniper SRX Series User Manual

CHAPTER 22
VDSL2 Mini-Physical Interface Module
Cable Specifications
•
1-Port VDSL2 (Annex A) Mini-Physical Interface Module Cable Specifications on page 141
1-Port VDSL2 (Annex A) Mini-Physical Interface Module Cable Specifications
The 1-Port VDSL2 (Annex A) Mini-Physical Interface Module (Mini-PIM) requires a
standard RJ-11 cable.
Figure 38 on page 141 shows the RJ-11 cable design.

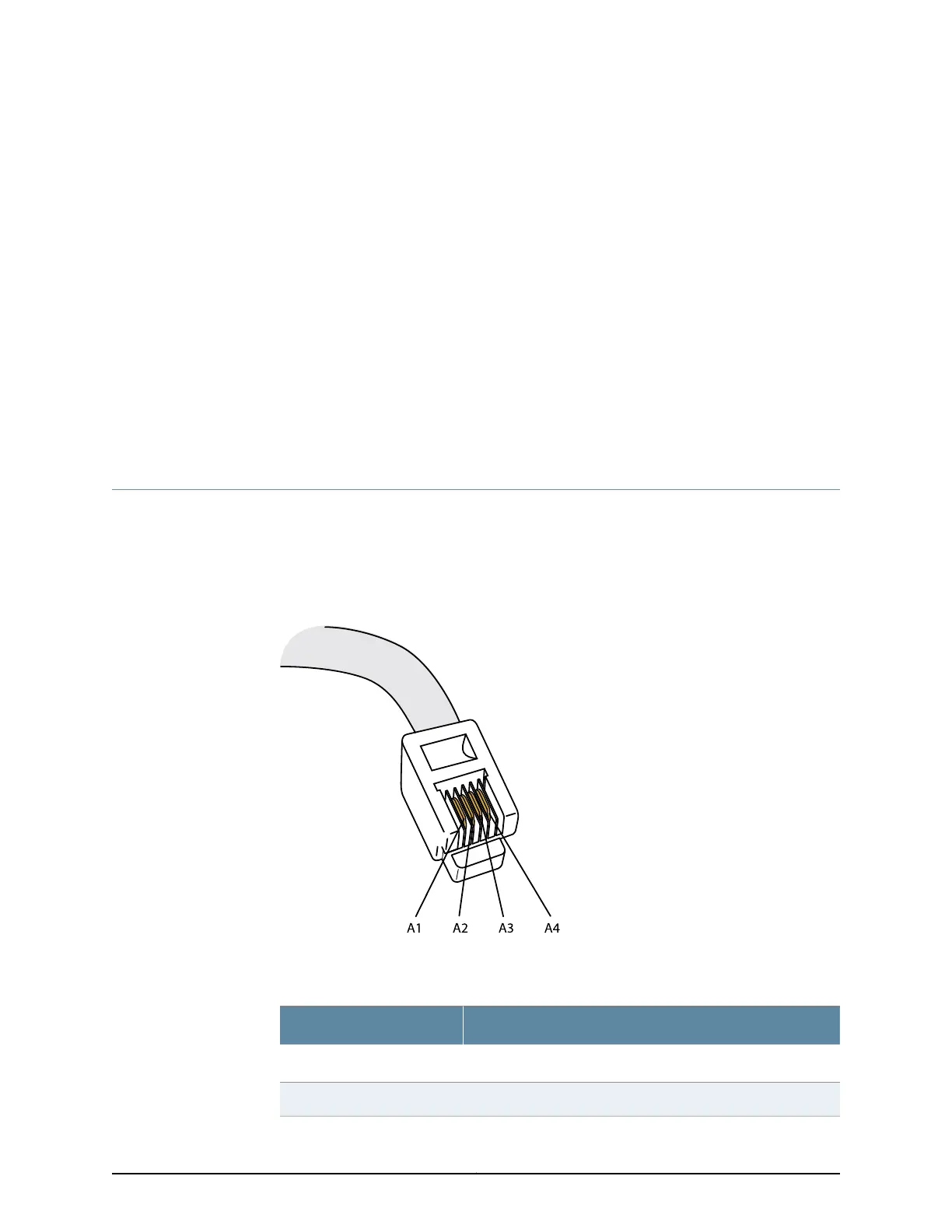

Figure 38: RJ-11 Cable Pinout for 1-Port VDSL2 (Annex A) Mini-PIM
Table 79 on page 141 shows the pin assignments of the RJ-11 cable.
Table 79: RJ-11 Cable Pinout Details for 1-Port VDSL2 (Annex A) Mini-PIM
SignalPin
GroundA1
RX (data input)A2
141Copyright © 2015, Juniper Networks, Inc.
