5. Insert the appropriate cables into the cable connectors on the GPIM.
6. If necessary, arrange the cables to prevent them from dislodging or developing stress
points:
•
Secure the cable so that it is not supporting its own weight as it hangs to the floor.
•
Place excess cable out of the way in a neatly coiled loop.
•
Use fasteners to maintain the shape of the cable loops.
After the STATUS LED light turns green and glows steadily on, the GPIM is online and
functioning normally. See Figure 45 on page 258 and Table 105 on page 258 for
hot-swappable components and their descriptions.

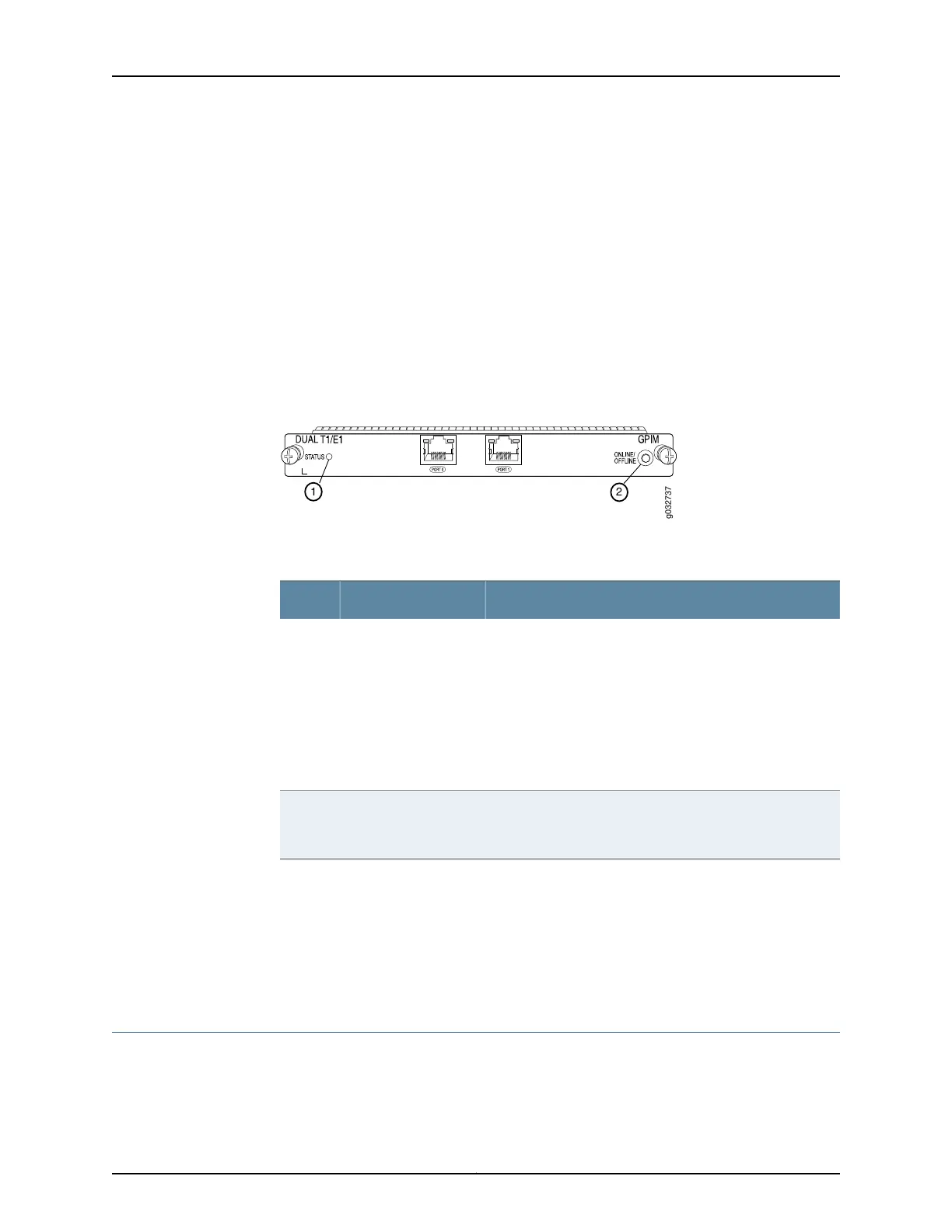

Figure 45: GPIM Example with Hot-Swappable Components
Table 105: Hot-Swappable Component Descriptions for GPIMs
DescriptionComponentNumber
The STATUS LED has the following indicator colors:
•
Green and steadily on indicates that the GPIM is
functioning normally.
•
Yellow and steadily on indicates that the GPIM is starting
up, running diagnostics, or going offline.
•
Red and steadily on indicates that the GPIM has failed.
•
Off indicates that the GPIM is not powered on, is offline,
or is not configured.
STATUS LED1
NOTE: You need not press this button when installing a GPIM.
The services gateway automatically recognizes when a GPIM
has been inserted into its slots.
ONLINE/OFFLINE
button
2
Related
Documentation
Removing a Gigabit-Backplane Physical Interface Module from the SRX Series Services
Gateway on page 260
•
• Required Tools and Parts for Replacing a Gigabit-Backplane Physical Interface Module
on page 245
Installing a Double-High, Double-Wide Gigabit-Backplane Physical Interface Module
on the SRX Series Services Gateway
Before you begin:
•
Ensure that the services gateway is powered off.
Copyright © 2015, Juniper Networks, Inc.258
SRX Series Services Gateways for the Branch Physical Interface Modules Reference
