Juniper SRX Series User Manual

Table 63: 24-Port Gigabit Ethernet XPIM LED States (continued)
DescriptionStateColorLED
Port is online.OnGreenLINK/ACT
Port is offline.Off
Port is receiving or sending data.Blinking
Not used on the non-PoE XPIM.N/AN/AN/A
NOTE: This LED is not
applicable on the
non-PoE 24-Port
XPIM. See
Figure 29 on page 115.
Port is PoE enabled and online.OnGreenPoE
NOTE: Applicable on
the PoE XPIM only.
See
Figure 30 on page 115.
Port is offline.Off
Port is PoE enabled and receiving or
sending data.
Blinking
Port is online.OnLink GreenSFP ports 20–23
NOTE: Each port has
two LEDs in the shape
of a triangle pointing
toward the port. The
left LED is link and the
right is activity.
Port is offline.Off
Port is receiving or sending data.BlinkingActivity Green
Port might be on but is not receiving
or sending data.
Off

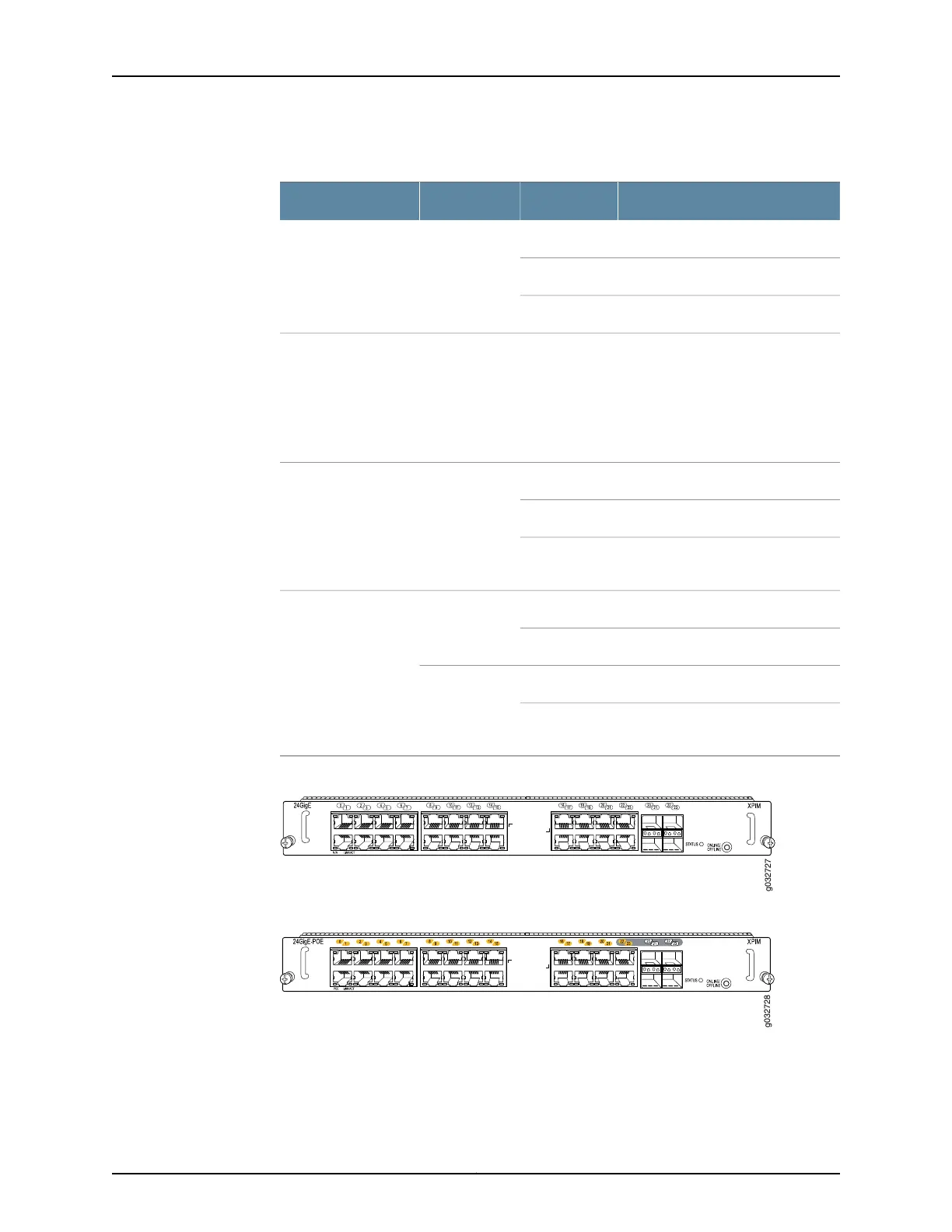

Figure 29: 24-Port Gigabit Ethernet XPIM
g032727
Figure 30: 24-Port Gigabit Ethernet XPIM with PoE
g032728
Related
Documentation
• 24-Port Gigabit Ethernet XPIM Overview on page 109
• 24-Port Gigabit Ethernet XPIM Key Features on page 113
115Copyright © 2015, Juniper Networks, Inc.
Chapter 16: 24-Port Gigabit Ethernet XPIM
