NOTE: When installing the 24-Port Gigabit Ethernet XPIM, which uses four
slots, you must install it in the 20-Gigabit GPIM slots:
•
SRX550 Services Gateway—Slot 6 among the top four standard slots
(slots 5 through 8).
•
SRX650 Services Gateway—Slot 2 among the bottom four standard
slots (slots 1 through 4), and slot 6 among the top four standard slots
(slots 5 through 8).
Table 5 on page 9 lists the GPIMs and XPIMs and their respective model numbers.
Table 5: SRX Series Services Gateway GPIM/XPIM Model Numbers
Model NumberGPIM or XPIM
SRX-GP-DUAL-T1-E1Dual CT1/E1 GPIM
SRX-GP-QUAD-T1-E1Quad CT1/E1 GPIM
SRX-GP-1DS3-E31-Port Clear Channel DS3/E3 GPIM
SRX-GP-8SERIAL8-Port Serial GPIM
SRX-GP-2XE-SFPP-TX2-Port 10-Gigabit Ethernet XPIM
SRX-GP-8SFP8-Port Gigabit Ethernet SFP XPIM
SRX-GP-16GE
SRX-GP-16GE-POE
16-Port Gigabit Ethernet XPIM
16-Port Gigabit Ethernet XPIM (with PoE)
SRX-GP-24GE
SRX-GP-24GE-POE
24-Port Gigabit Ethernet XPIM
24-Port Gigabit Ethernet XPIM (with PoE)

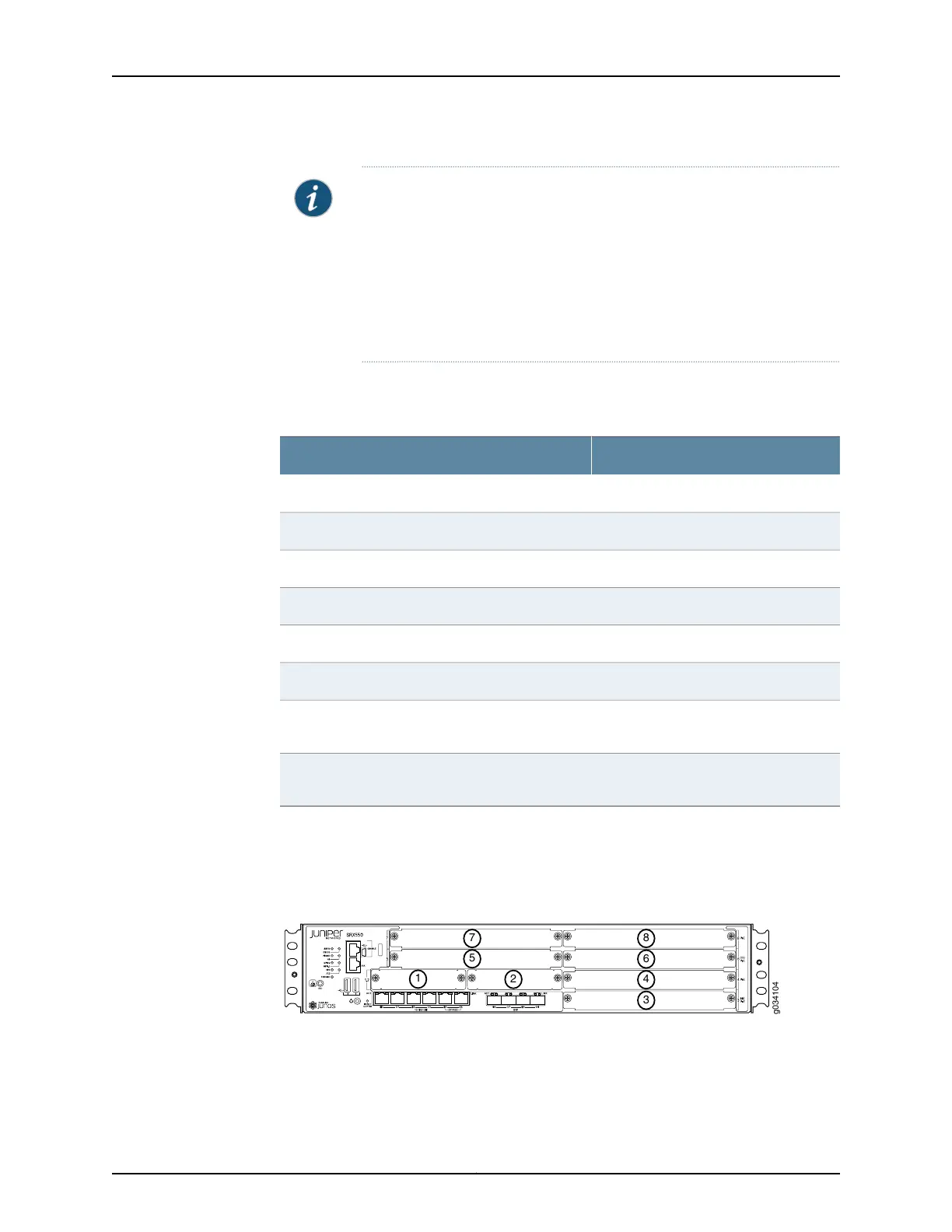

Figure 1 on page 9 shows how the slots on the front panel of the SRX550 Services
Gateway are numbered. Slots 1 and 2 are for Mini-PIMs, and slots 3 through 8 are for
GPIMs.
Figure 1: SRX550 Services Gateway Slot Numbers
Figure 2 on page 10 shows how the slots on the front panel of the SRX650 Services
Gateway are numbered. Slots 1 through 8 are for GPIMs.
9Copyright © 2015, Juniper Networks, Inc.
Chapter 1: SRX Series Services Gateway Interface Modules Support
