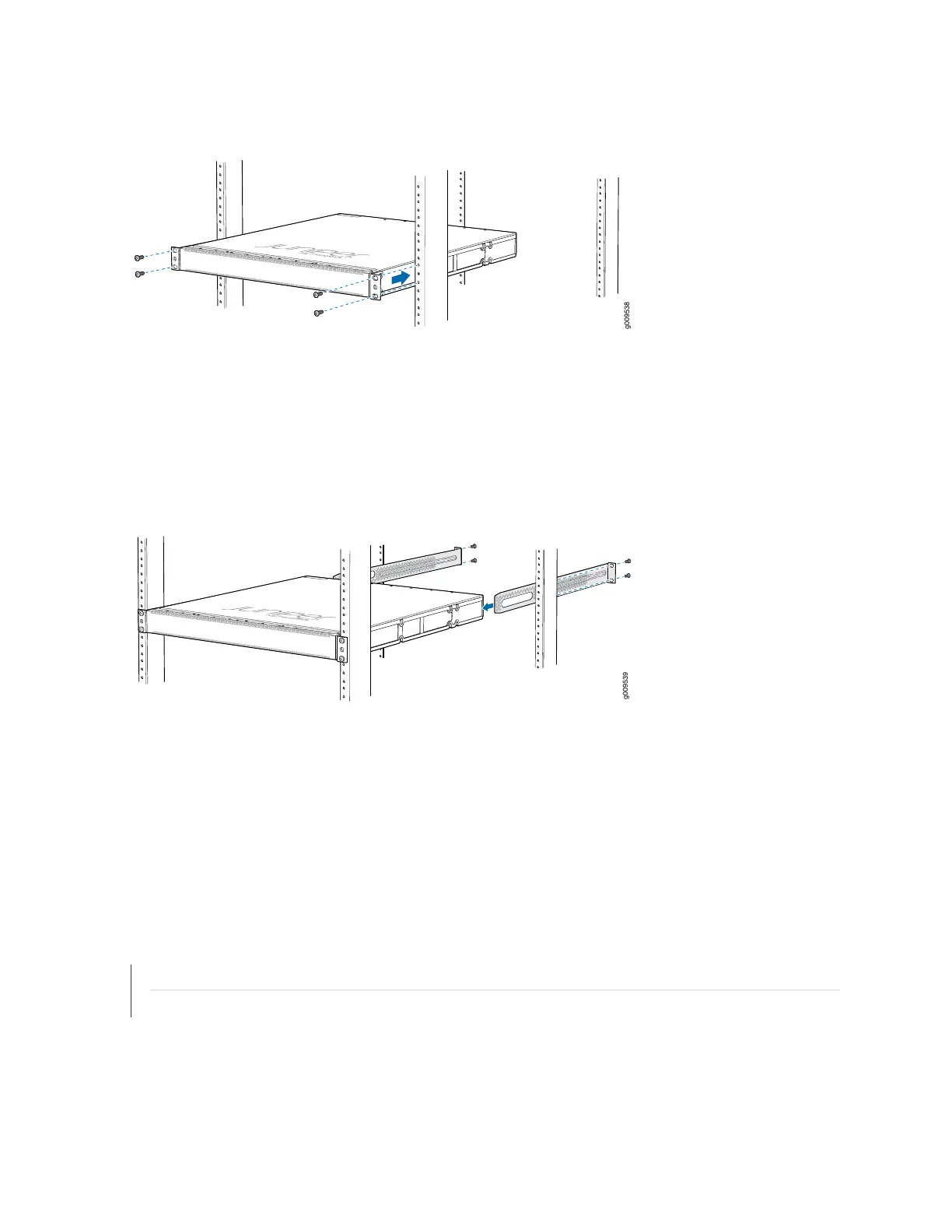

Figure 23: Mounting the Services Gateway to the Front Posts of a Rack
8. Have a second person secure the front of the services gateway to the rack by using the appropriate
screws for your rack.
9. Slide the rear mounting blades into the side mounting rails. See Figure 24 on page 70.
Figure 24: Sliding the Rear Mounting-Blades into the Side Mounting Rail
10. Attach the rear mounting blades to the rear post by using the appropriate screws for your rack. Tighten
the screws.
11. Ensure that the services gateway chassis is level by verifying that all the screws on the front of the
rack are aligned with the screws at the back of the rack.
RELATED DOCUMENTATION
Connecting the SRX4600 to External Devices | 71
