18 Appendix: Further components
18.1 Cooling plate and cooling element
The following cooling plates and cooling elements are available:
Designation Material number
Cooling element D3-XM 310-055 95179
Cooling plate D3-XM 300-060 95521
Cooling plate D3-XM 300-080 102204
18.1.1 Cooling Element D3-XM 310-055

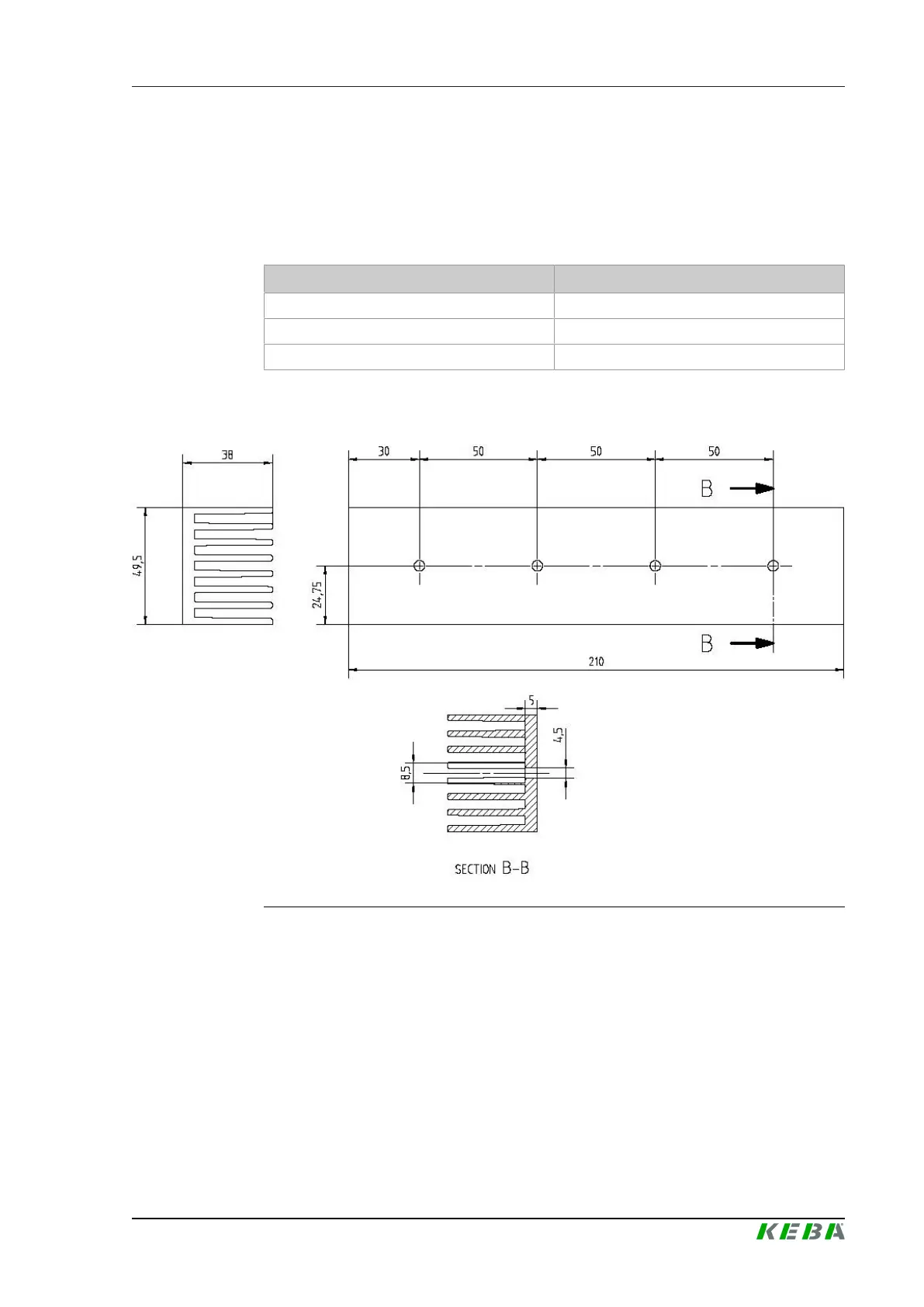

Fig.18-52: Dimensions of cooling element D3-XM 310-055, dimensions in mm
