D3-DU 3xx/A, /B Connections and wiring

Project engineering manual V1.09

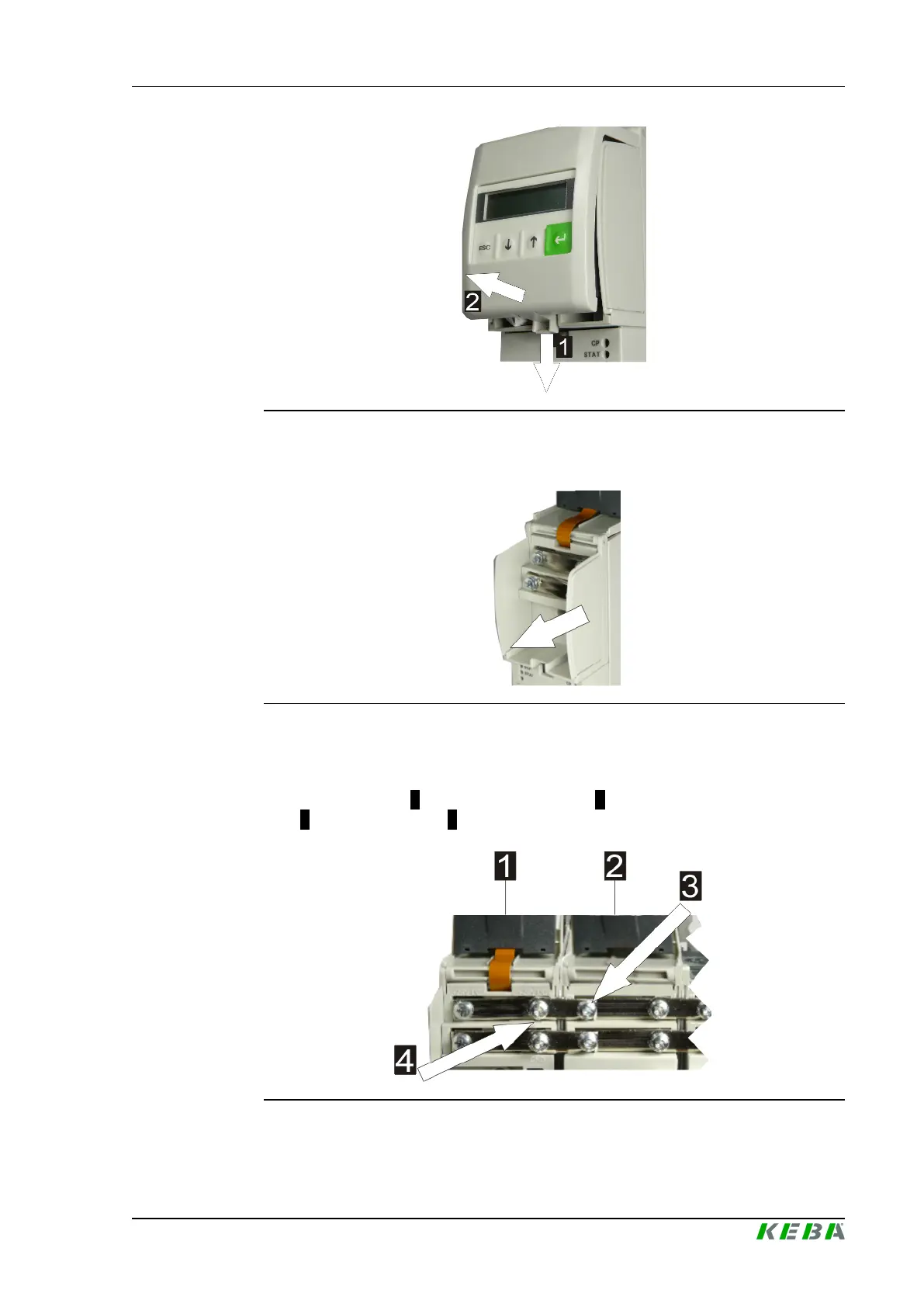

Fig.6-24: Open cover flap

3) Remove side covering by extracting it straightly out of the guide rail.

Fig.6-25: Remove side covering

4) Pull down locking of the cover flap from the power module with a small

item (e.g. small screw driver). Open the cover flap.

5) Loosen screw (3) at the power module (2) and hook the rail to a screw

(4) of the DU 3xx/x (1), which is also loosen.

Fig.6-26: Hook rail
