Digital Channels 6

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 103

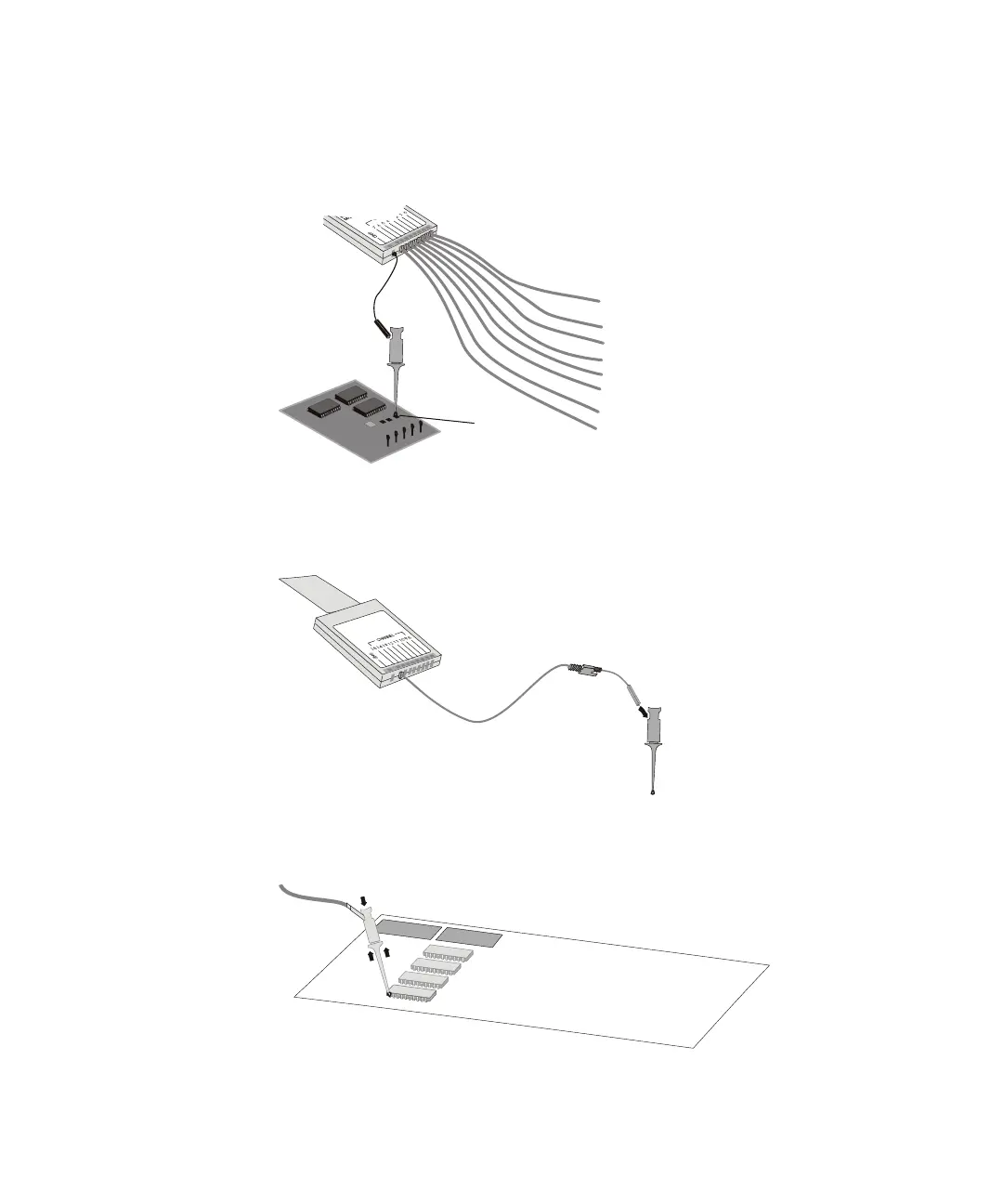

4 Connect a grabber to one of the probe leads. (Other probe leads are omitted

from the figure for clarity.)

5 Connect the grabber to a node in the circuit you want to test.

Channel

Pod Ground

Circuit

Ground

Grabber
