104 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

6 Digital Channels

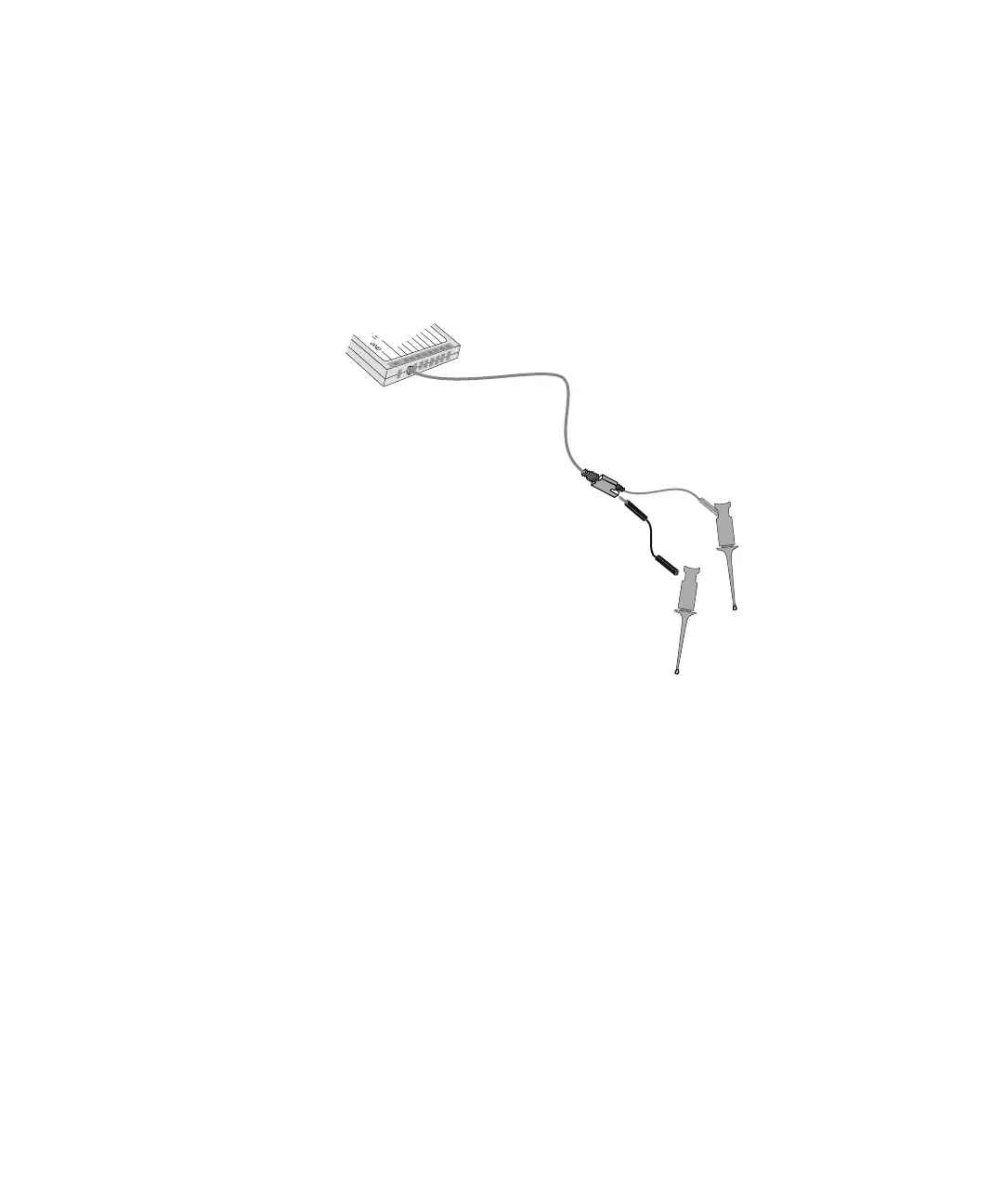

6 For high-speed signals, connect a ground lead to the probe lead, connect a

grabber to the ground lead, and attach the grabber to ground in the device

under test.

7 Repeat these steps until you have connected all points of interest.

Grabber

Signal

Ground
