8 Trigger
8.1 Trigger
Source Example Preset Min Max Resolution
Prot Frame
Aligned
TRIG:PRTF:DEL:STAT ON
TRIG:PRTF:DEL 1 ms
Off, 1 ms -10 ms +10 ms 100 ns
Prot Event
TRIG:PRTE:DEL:STAT ON
TRIG:PRTE:DEL 1 ms
Off, 1 ms -10 ms +10 ms 100 ns
Note: in Bluetooth Mode, the preset value of Trigger Delay is always (On, -20us).
More Information

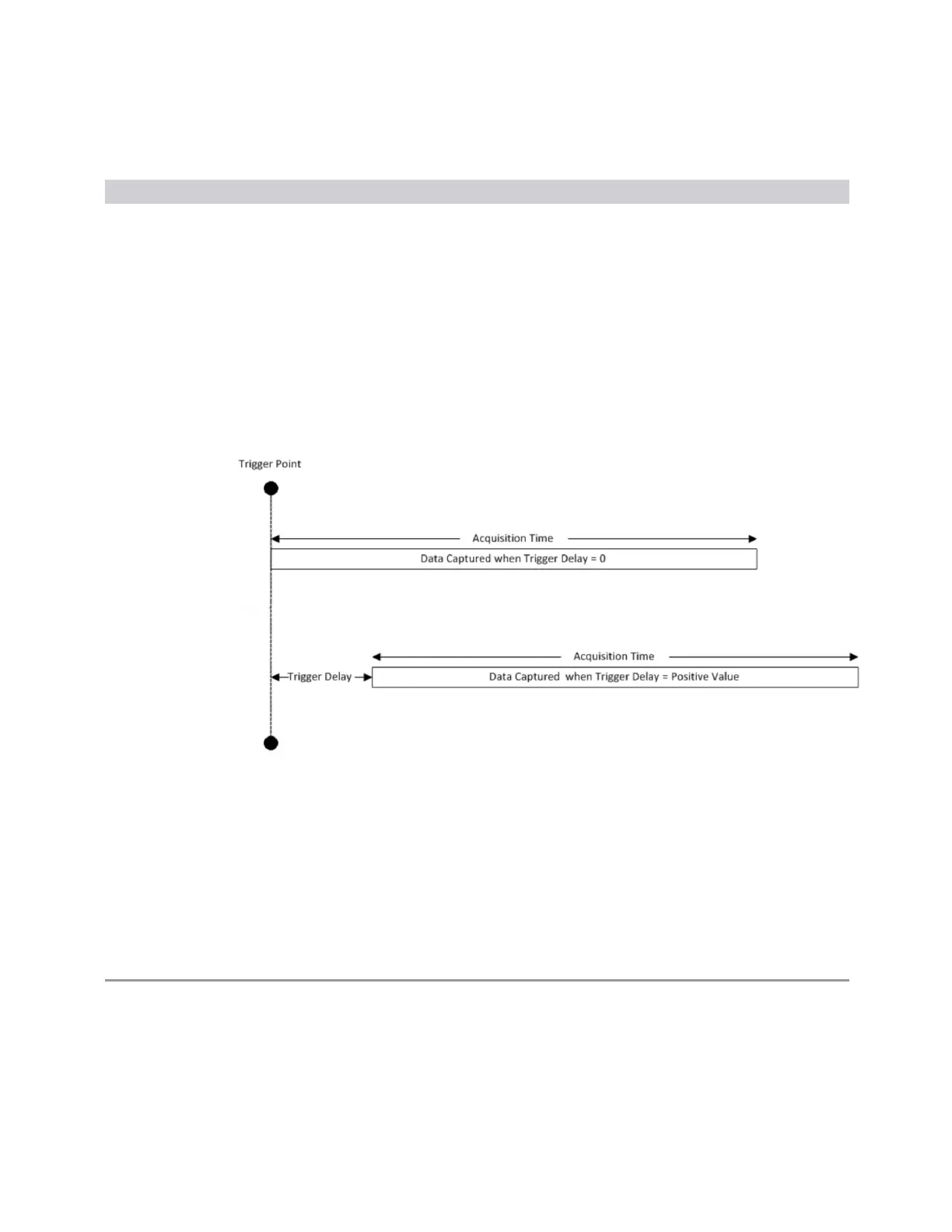

Here is the diagram for Frequency Mask Trigger (FMT) Trigger Delay:
8.1.4 Trigger Slope
Sets the trigger polarity for Trigger and Gate sources that support Trigger Slope. It is
set positive to trigger on a rising edge and negative to trigger on a falling edge.
For any given Trigger, Gate, or Periodic Sync source, the same Trigger Slope is used
for the Trigger source in the Trigger menu, for the Gate source in the Gate Source
menu, and for the Periodic Sync source in the Periodic Sync Src menu.
Remote Command
:TRIGger[:SEQuence]:<trig_source>:SLOPe POSitive | NEGative
:TRIGger[:SEQuence]:<trig_source>:SLOPe?
where <trig_source> is one of:
LINE | EXTernal1 | EXTernal2 | EXTernal3 | AEXTernal | VIDeo | ADC RFBurst |
1005 IQ Analyzer Mode User's &Programmer's Reference
