8 Trigger

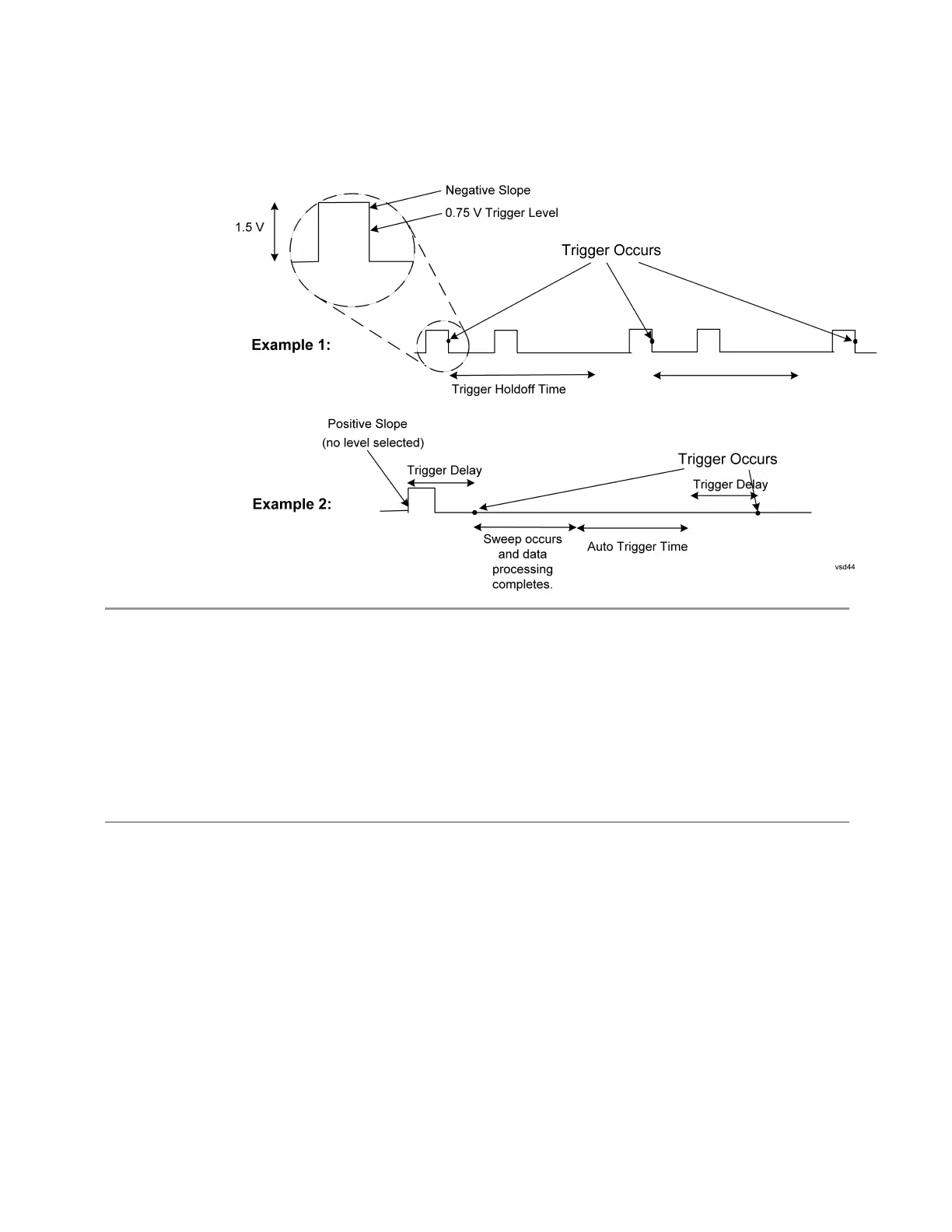

8.1 Trigger
Remote Command Swept SA and RTSA measurements:
:TRIGger[:SEQuence]:SOURce EXTernal1 | EXTernal2 | EXTernal3 | IMMediate |
LINE | FRAMe | RFBurst | VIDeo | TV | PXI | INTernal
:TRIGger[:SEQuence]:SOURce?
All other measurements
:TRIGger:<measurement>[:SEQuence]:SOURce EXTernal1 | EXTernal2 | EXTernal3 |
AEXTernal | IMMediate | LEVel | FMT | LINE | ADC | FRAMe | RFBurst | VIDeo |
IQMag | IDEMod | QDEMod | IINPut | QINPut | AIQMag | PXI | INTernal |
PRTChandet | PRTFrame | PRTEvent
:TRIGger:<measurement>[:SEQuence]:SOURce?
Example The following commands set the External 1 trigger input for various measurements
Swept SA and RTSA measurements:
:TRIG:SOUR EXT1
Other Spectrum Analyzer Mode measurements:
Harmonics:
:TRIG:HARM:SOUR EXT1
Power Suite measurements (appear in many Modes):
Channel Power:
:TRIG:CHP:SOUR EXT1
Occupied BW, Output Spectrum BW:
:TRIG:OBW:SOUR EXT1
979 IQ Analyzer Mode User's &Programmer's Reference
