Kodak Dryview 5800 - SENSOR, PICKUP HOME - UPPER (S1 U) and LOWER (S1 L)

2G0947 - 31JAN08 3-81
Adjustments and Replacements
SENSOR, PICKUP HOME - UPPER (S1U) and LOWER (S1L)
Prerequisites: Remove the “PICKUP AY - UPPER” or “PICKUP AY - LOWER”.
To Remove:
IMPORTANT:
This procedure is used for both UPPER and LOWER PICKUP AY.
1. Disconnect the CONNECTOR.
2. Remove:
• SCREW
• PICKUP HOME SENSOR
To Install: 1. Reverse the steps in the removal procedure.

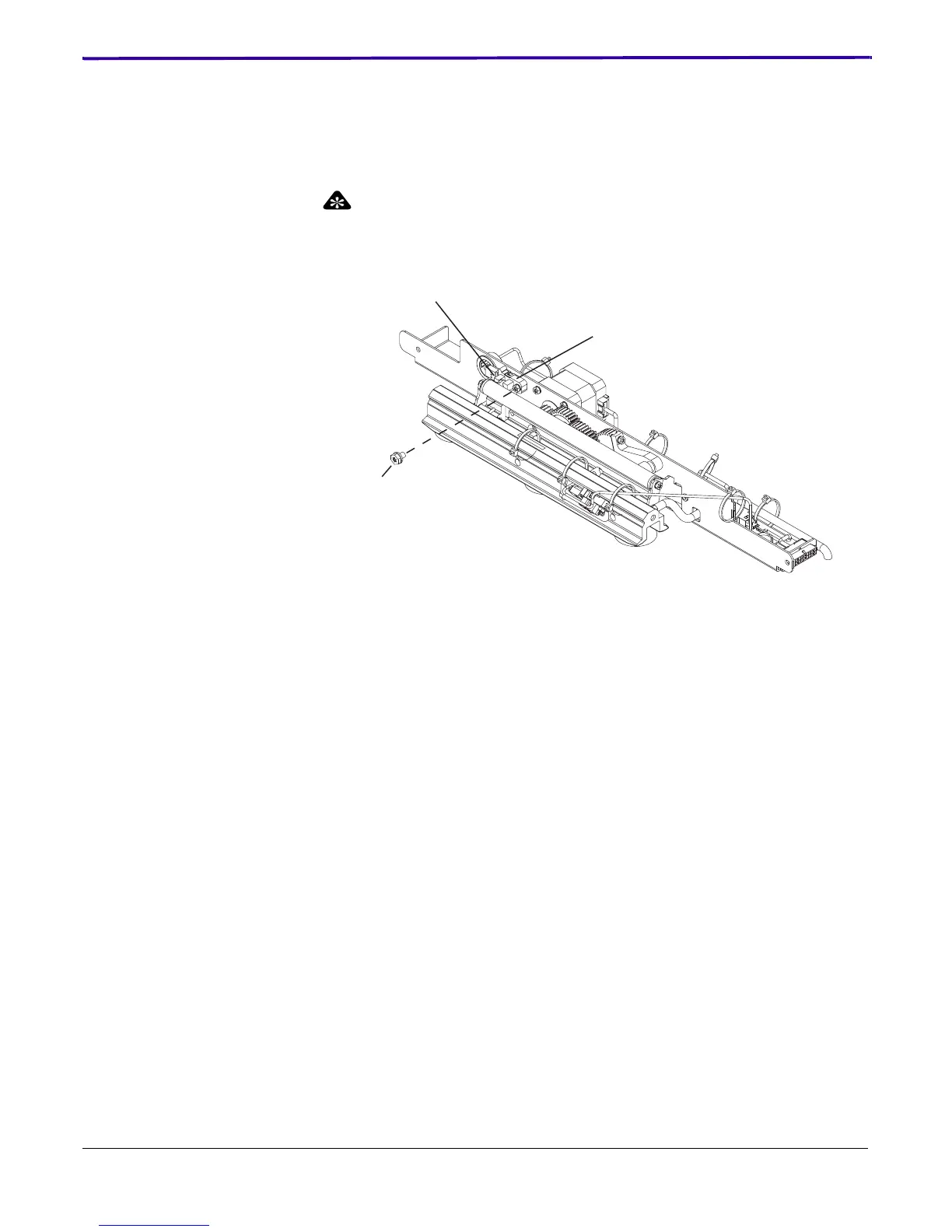

SCREW
PICKUP HOME
SENSOR
CONNECTOR
