2G0947 - 31JAN08 3-5
Adjustments and Replacements
IMAGING AY - Alignment
Adjustment Specification
Purpose: To align the image on the film.
Specification: The image is aligned.
Special Tools: None
Prerequisites Remove the “BACK PANEL”.
To Check 1. Make a test print.
2. Check that the image is not skewed on the film.
To Adjust
1. Loosen the ALIGNMENT PINS using a 1.5 mm Allen WRENCH.
2. Push the ALIGNMENT PINS into the up position.
3. Tighten the ALIGNMENT PINS using a 1.5 mm Allen WRENCH.
4. Turn the 2 SPRING AYs until the IMAGING AY is just touching the
ALIGNMENT PINS.
5. Loosen the ALIGNMENT PINS.

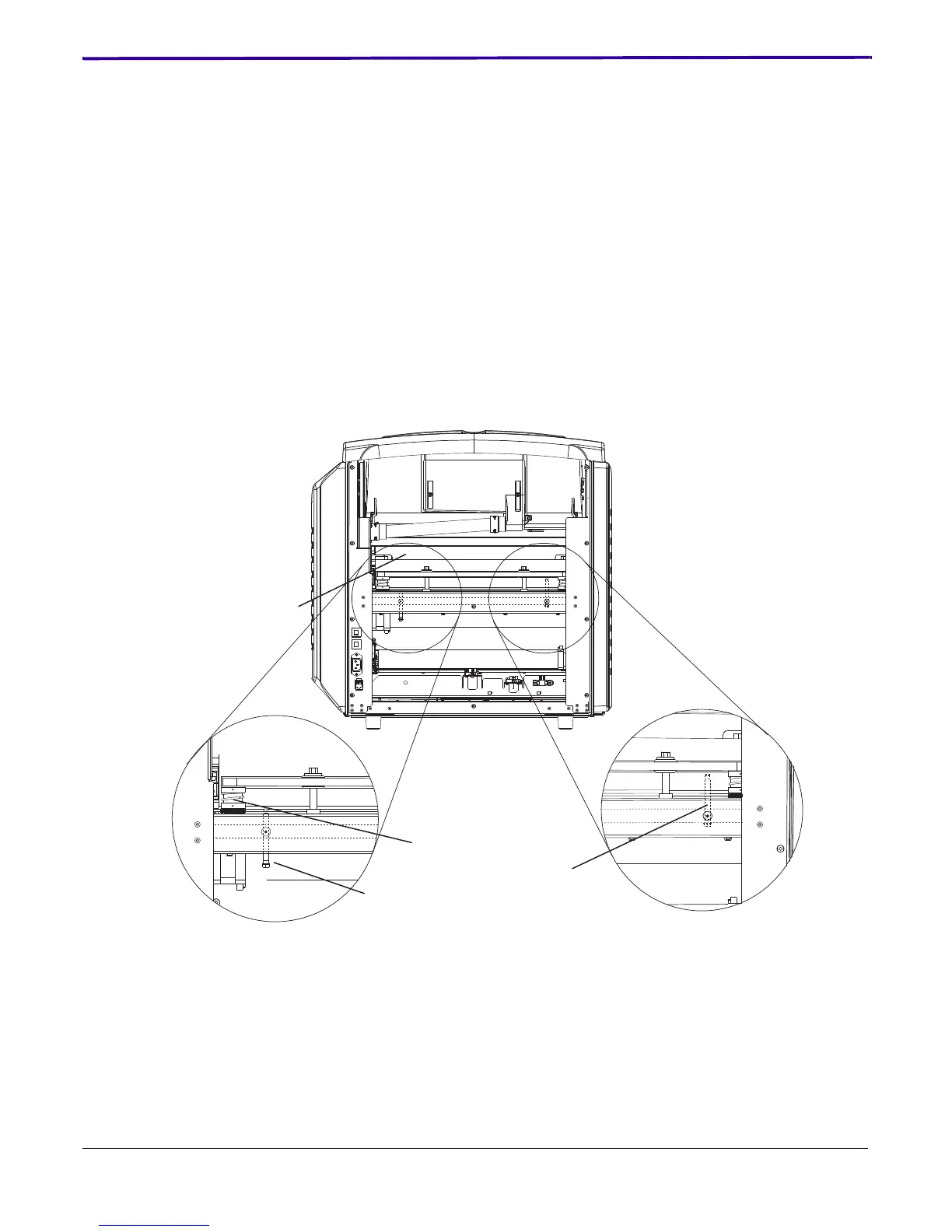

ALIGNMENT PIN
(down position)
ALIGNMENT PIN
(up position)
SPRING AY
IMAGING AY
To Next Page
