Kodak Dryview 5800 - Doing the Mechanical Setup; Completing the Uncrating

2G0947 - 31JAN08 2-5
Installation Instructions
Doing the Mechanical Setup
Completing the Uncrating
1. Locate and remove the box that has the DOCUMENTATION and
CABLES.
2. Remove the other boxes that have the 2 FILM TRAYS and FILTERS.
3. Remove the SIDE PANELS from the CRATE.

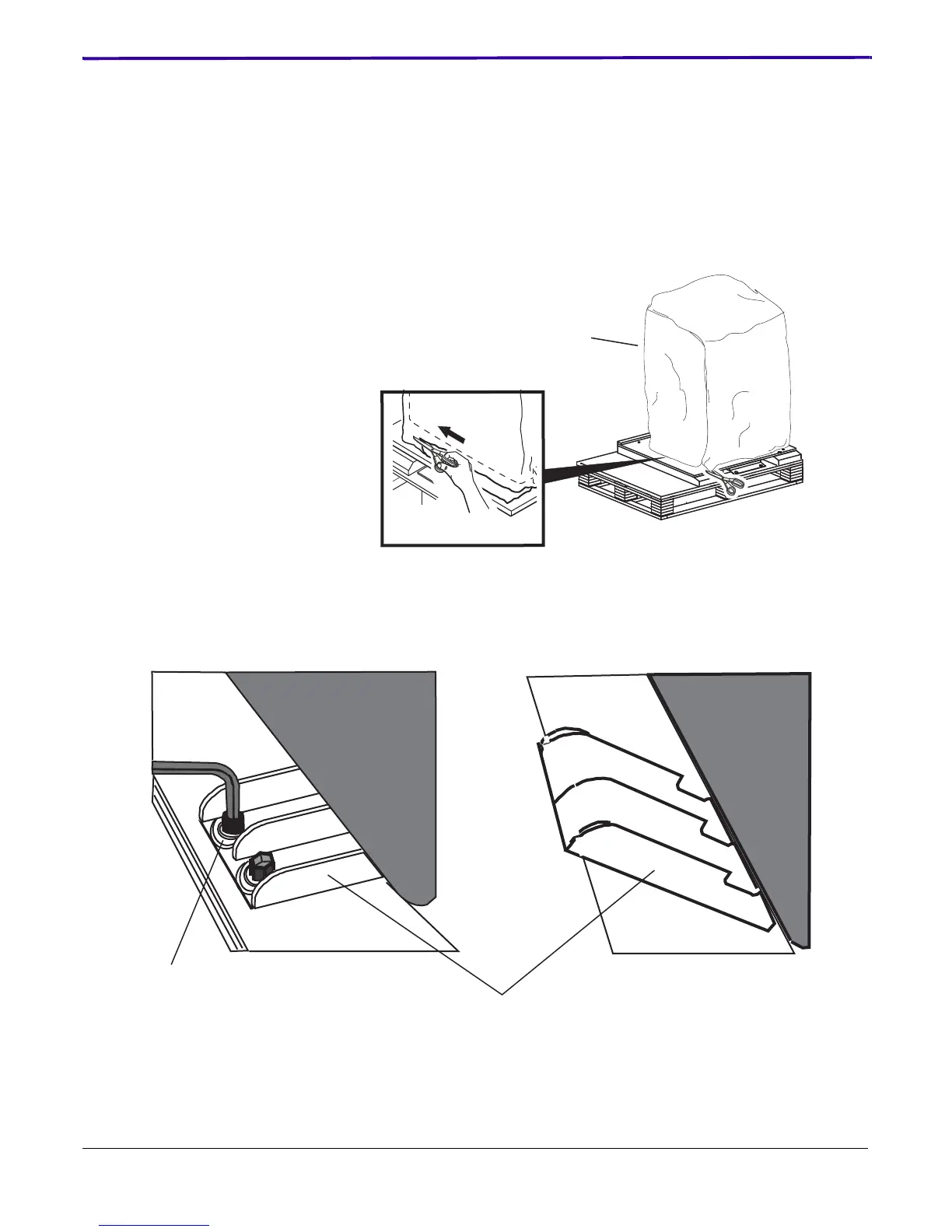

4. With SCISSORS, cut the FOIL BAG all around the BASE of the
IMAGER.
5. Remove the FOIL BAG.
6. Use the Hex WRENCH to remove:
• 2 BOLTS
• 2 WASHERS
FOIL BAG
2 BOLTS and
2 WASHERS
BRACKET
