Kodak Dryview 5800 - Imaging

3-84 2G0947 - 31JAN08
Adjustments and Replacements
IMAGING AY
Prerequisites: Remove the “PROCESSOR AY”.
To Remove:
1. Disconnect the CONNECTOR from the IMAGING AY.
2. Remove:
• 3 PINS
• E-RING
• FILM ADVANCE KNOB
3. Lift the IMAGING AY and place it on a flat, stable surface.
To Install: 1. Reverse the steps in the removal procedure.

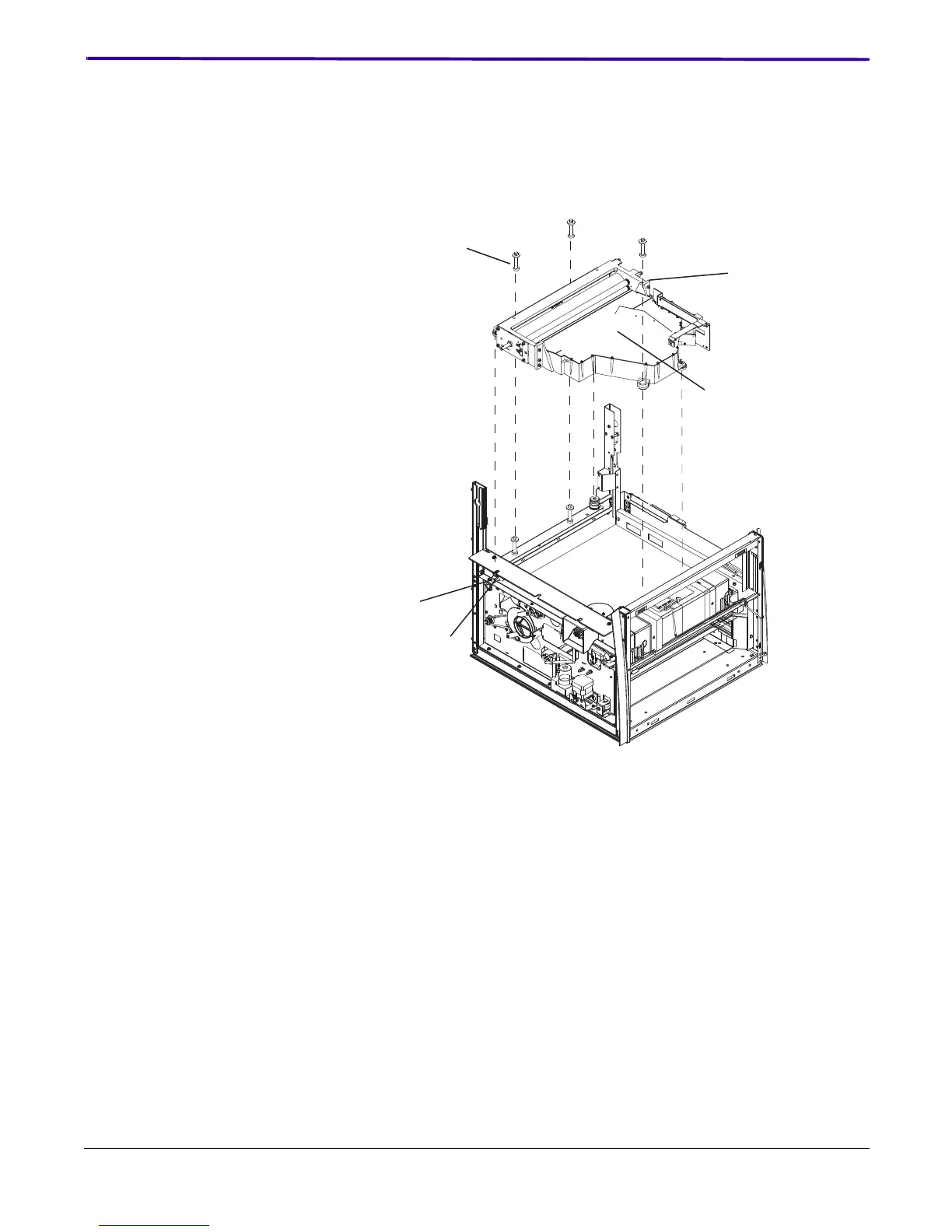

3 PINS
FILM ADVANCE
KNOB
E-RING
CONNECTOR
IMAGING AY
