2KJ/2KH
1-5-31
8. Refit the scanner wire drum shaft to the
scanner unit.
9. Insert the two frame securing tools into the
positioning holes at the front and rear of the
scanner unit to fix the mirror 2 frame in posi-
tion.

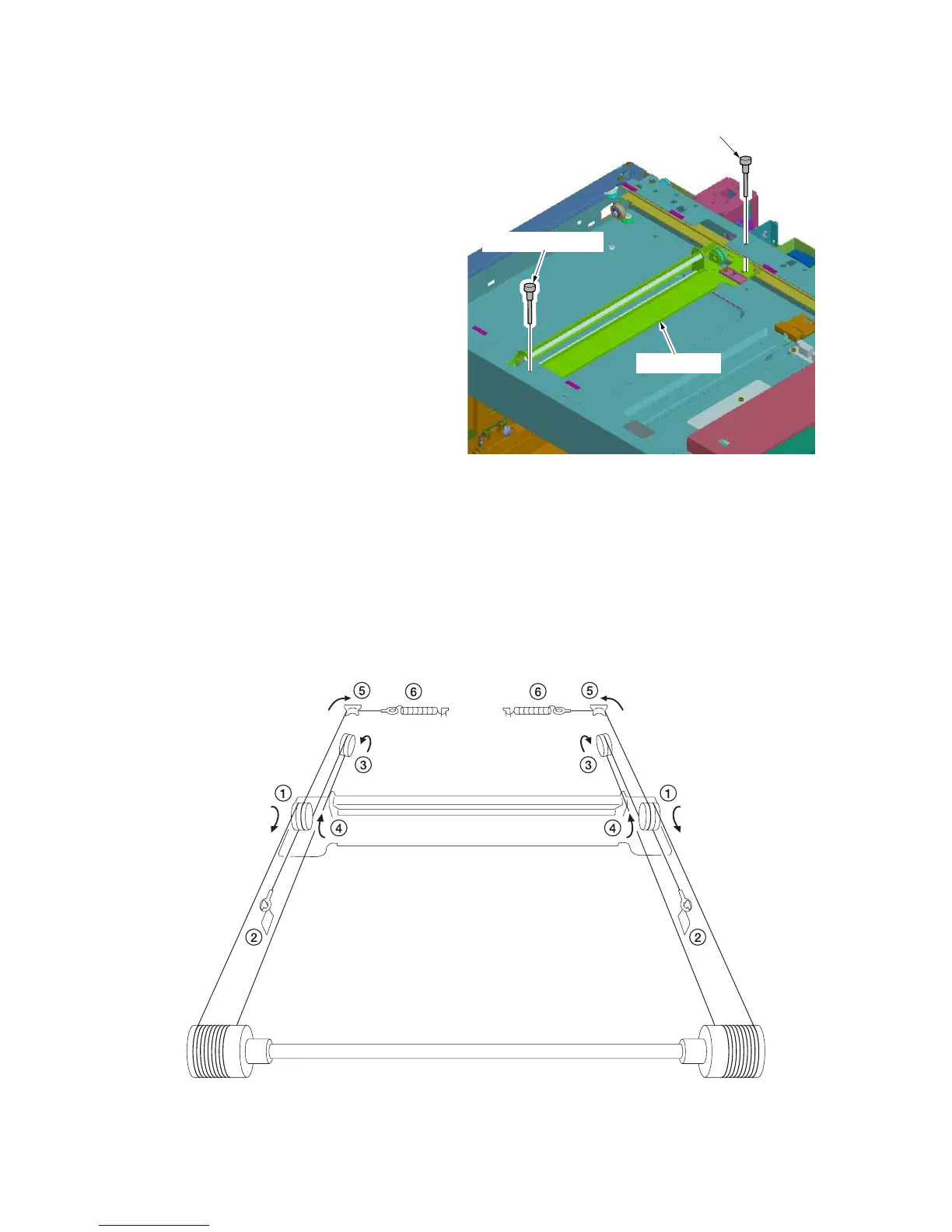

Figure 1-5-53
10. Loop the outer ends of the scanner wires around the outer grooves in the pulleys on the mirror 2 frame,
winding from below to above. .......................................................................................................................... (1)
11. Hook the round terminals onto the catches inside the scanner unit. ............................................................... (2)
12. Loop the inner ends of the scanner wires around the grooves in the pulleys at the left of the scanner unit,
winding from below to above. .......................................................................................................................... (3)
13. Loop the scanner wires around the inner grooves in the pulleys on the mirror 2 frame, winding from
above to below................................................................................................................................................. (4)
14. Wind the scanner wires around the grooves in the scanner wire guides at the left of the scanner unit. ......... (5)
15. Hook the round terminals onto the scanner wire springs................................................................................. (6)
Figure 1-5-54
Frame securing tool
Mirror 2 frame
Frame securing tool
To Next Page
