MegaRAID SAS Software User GuideChapter 4: WebBIOS Configuration Utility
| Creating a Storage Configuration

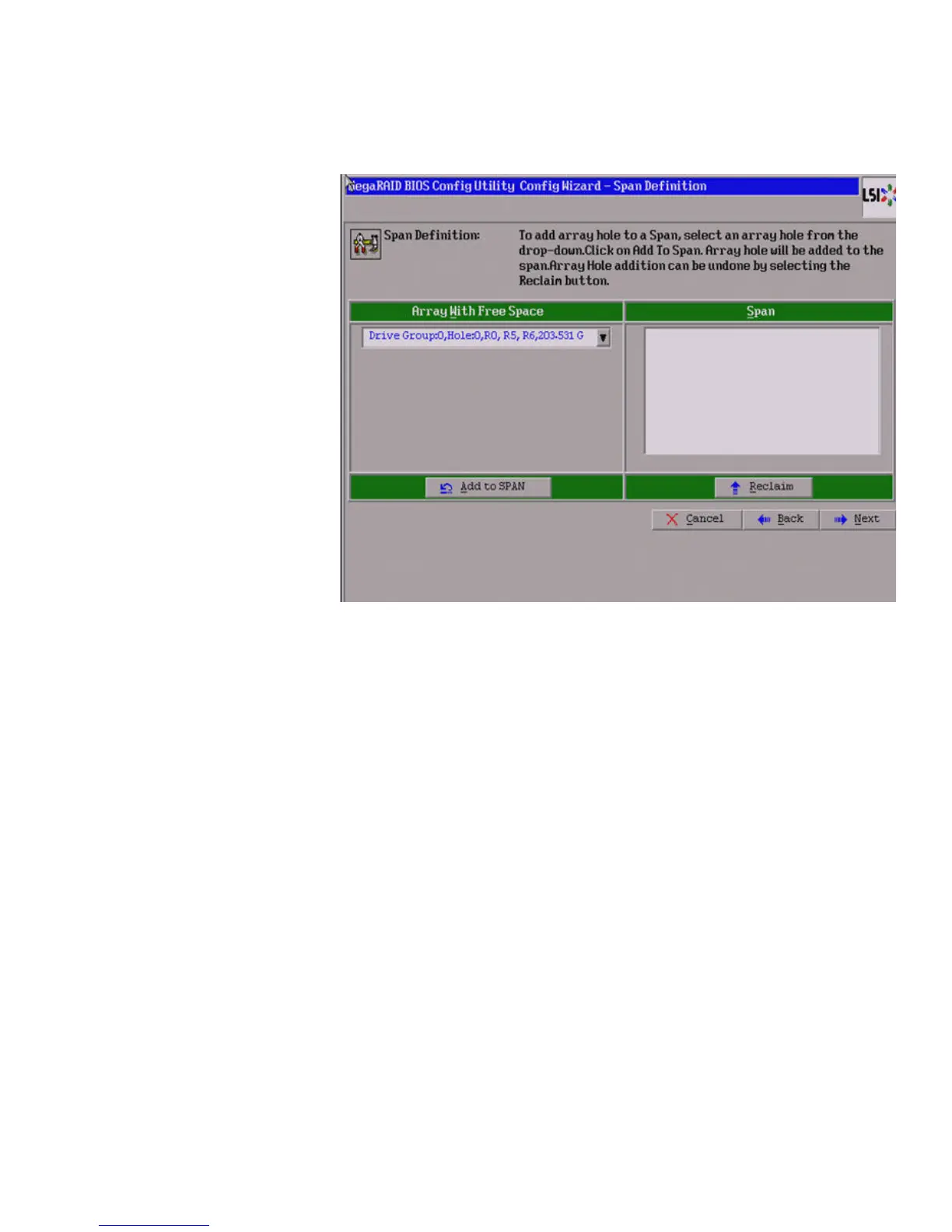

Figure 57: WebBIOS Span Definition Screen
12. Under the heading Array With Free Space, hold <Ctrl> while you select a drive
group of three or more drives, and click Add to SPAN.
The drive group you select displays in the right frame under the heading Span.
13. Hold <Ctrl> while you select a second drive group of three or more drives, and click
Add to SPAN.
Both drive groups display in the right frame under Span.
14. Click Next.
The Virtual Drive Definition screen appears, as shown in Figure58. You use this
screen to select the RAID level, strip size, read policy, and other attributes for the
new virtual drive(s).
15. Hold <Ctrl> while you select two drive groups with at least three drives each in the
Configuration window on the right.
