Page 86
MegaRAID SAS Software User GuideChapter 4: WebBIOS Configuration Utility
| Creating a Storage Configuration

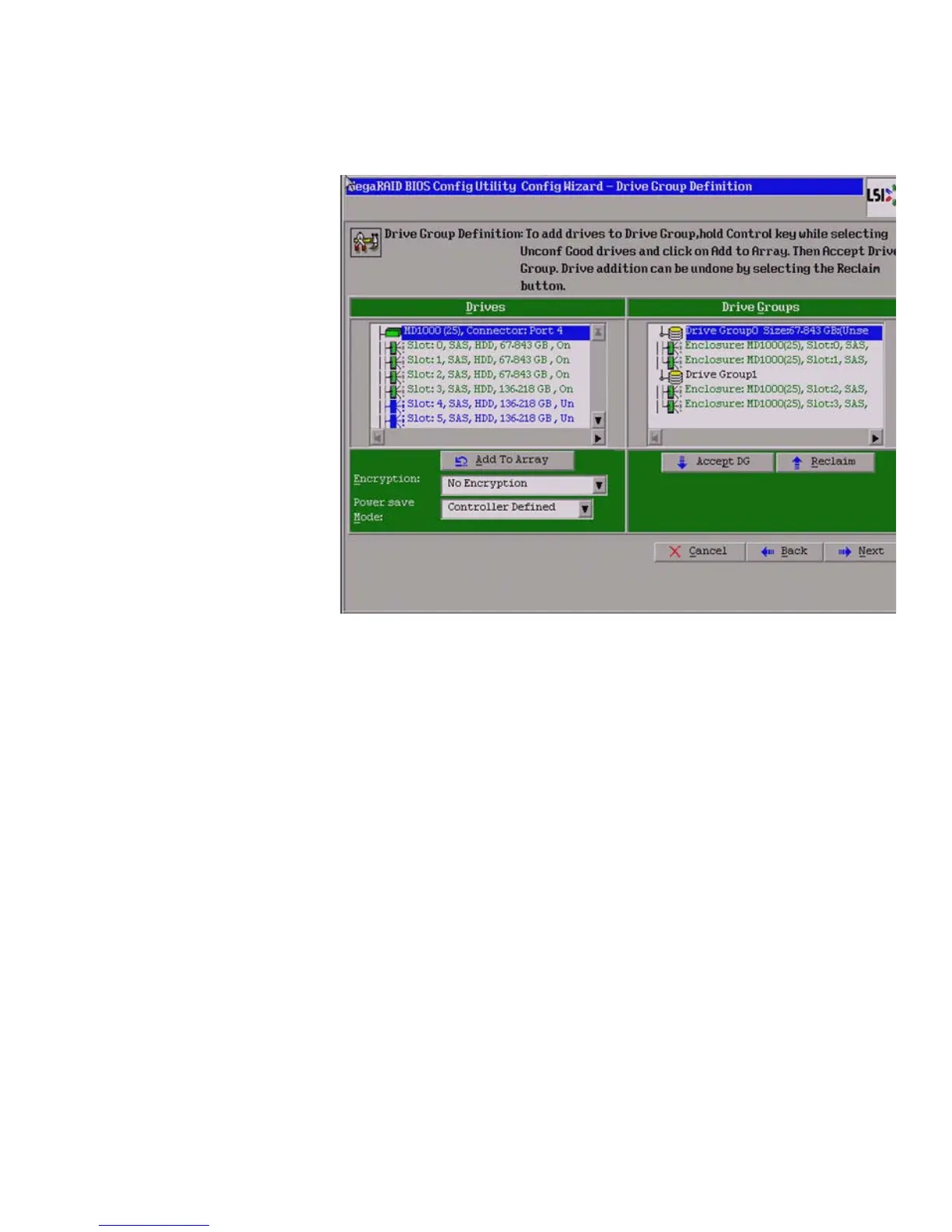

Figure 44: WebBIOS Drive Group Definition Screen
10. Repeat step 4 through step 6 until you have selected all the drives you want for the
drive groups.
11. After you finish selecting drives for the drive groups, select each drive group and
then click Accept DG for each selection.
12. Click Next.
The Span Definition screen appears, as shown in Figure45. This screen shows the
drive group holes that you can select to add to a span.
