Page 87
MegaRAID SAS Software User Guide Chapter 4: WebBIOS Configuration Utility
| Creating a Storage Configuration

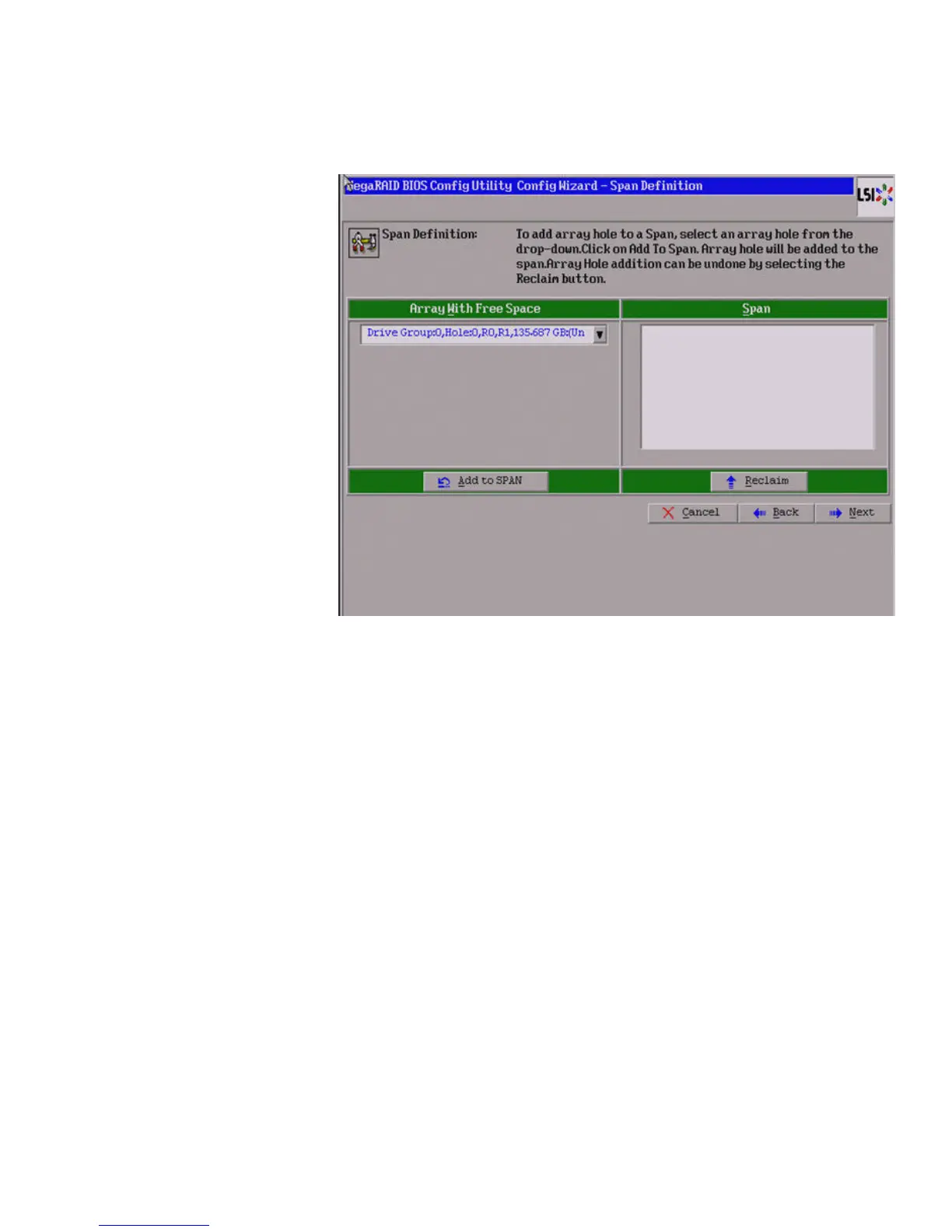

Figure 45: WebBIOS Span Definition Screen
13. Under the heading Array With Free Space, hold <Ctrl> while you select a drive
group, and then click Add to SPAN.
The drive group you select appears in the right frame under the heading Span.
14. Hold <Ctrl> while you select a second drive group, and then click Add to SPAN.
15. Repeat the previous two steps until you have selected all of the drive groups that
you want.
16. Click Next.
The Virtual Drive Definition screen appears, as shown in Figure46. You use this
screen to select the RAID level, strip size, read policy, and other attributes for the
new virtual drives.
17. Hold <Ctrl> while you select drive groups in the Configuration panel on the right.
