Lenovo ThinkServer sd350 - Installing the Air Baffle

Readthesafetyinformationin“Safety”onpagevand“Installationguidelines”onpage75.
Ifyouarereplacingaservercomponentorinstallinganoptionaldeviceintheserver,youneedtotake
outthenodeoutfromtherackenclosure,turnofftheserverandperipheraldevices,anddisconnectall
externalcables.
Toremovetheairbaffle,completethefollowingsteps.
Step1.Removethecomputenode(see“Removingacomputenodefromachassis”onpage77).
Step2.Placeyourfingersunderthefrontandbackofthetopoftheairbaffle;then,lifttheairbaffle
outoftheserver.
000
000
000
0000
0000
0000
00
00
00
0000
0000
0000
0000
0000
0000
0000
0000
0000
Air baffle

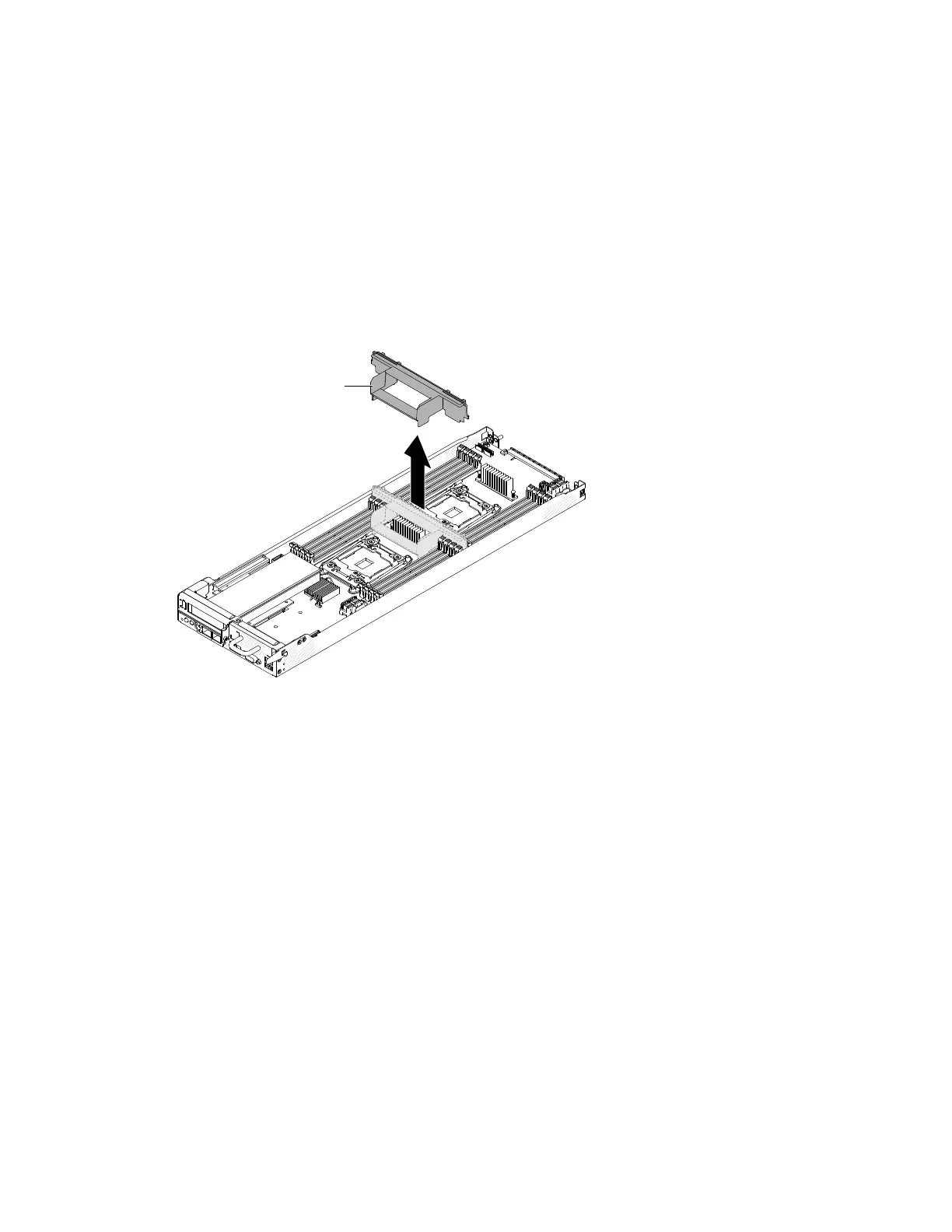

Figure26.Airbaffleremoval
Attention:Forpropercoolingandairflow,replacetheairbafflebeforeyouturnontheserver.
Operatingtheserverwiththeairbaffleremovedmightdamageservercomponents.
Installingtheairbaffle
Usethisinformationtoreplacetheairbaffle.
Readthesafetyinformationin“Safety”onpagevand“Installationguidelines”onpage75.
Ifyouarereplacingaservercomponentorinstallinganoptionaldeviceintheserver,youneedtotake
outthenodeoutfromtherackenclosure,turnofftheserverandperipheraldevices,anddisconnectall
externalcables.
Toreplacetheairbaffle,completethefollowingsteps.
Step1.AligntheairbafflefininbetweentheDIMMsocketlatch.
Chapter5.Removingandreplacingservercomponents87
