Lenovo ThinkServer sd350 - Chassis Component Handling

Important:IfanAttentionlabelisonthefrontpanelofthecomputenodeabovethepowerbutton,readit;
then,removethelabelanddiscarditbeforeturningonthecomputenode.
Ifthisistheinitialinstallationofthecomputenodeinthechassis,youmustconfigurethecomputenode
throughtheSetuputilityandinstallthecomputenodeoperatingsystem.Seefordetails.
Ifyouhavechangedtheconfigurationofthecomputenodeorifyouareinstallingadifferentcomputenode
fromtheonethatyouremoved,youmustconfigurethecomputenodethroughtheSetuputility,andyou
mighthavetoinstallthecomputenodeoperatingsystem(see“UsingtheSetuputility”onpage34
).
Removingandreplacingstructuralparts
Thissectionprovidesinformationforremovingandreplacingstructuralpartsintheserver.
Replacementofstructuralpartsisyourresponsibility.IfLenovoinstallsastructuralpartatyourrequest,
youwillbechargedfortheinstallation.
Theillustrationsinthisdocumentmightdifferslightlyfromyourhardware.
Removingtheshippingbracketskit
Usethisinformationtoremovetheshippingbracketskitfromtheserver.
Toremovetheshippingbracketskit,completethefollowingsteps.
Step1.Turnofftheserver(see“Turningofftheserver”onpage29forinstructions)andallattached
peripheraldevices.Disconnectallpowercords;then,disconnectallexternalcablesfromtheserver.
Step2.Removethetwo(oneoneachside)10–32screwsfromthebracketsontherearofthechassis.

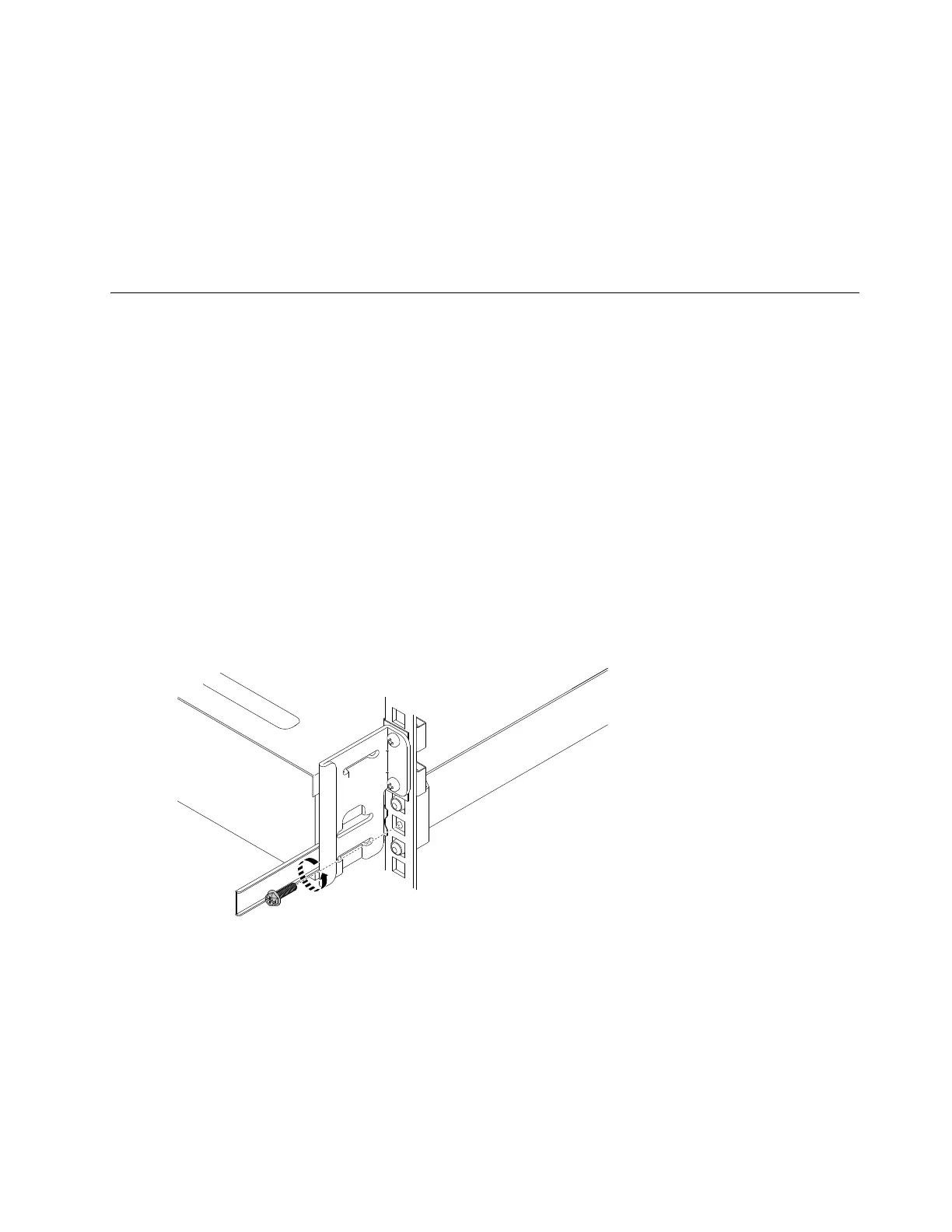

Figure18.Removingthetwo10–32screws
Step3.Removethefour(twooneachside)M6screwsfromthebracketsontherearofthechassisand
removetheshippingbrackets.
Chapter5.Removingandreplacingservercomponents79
