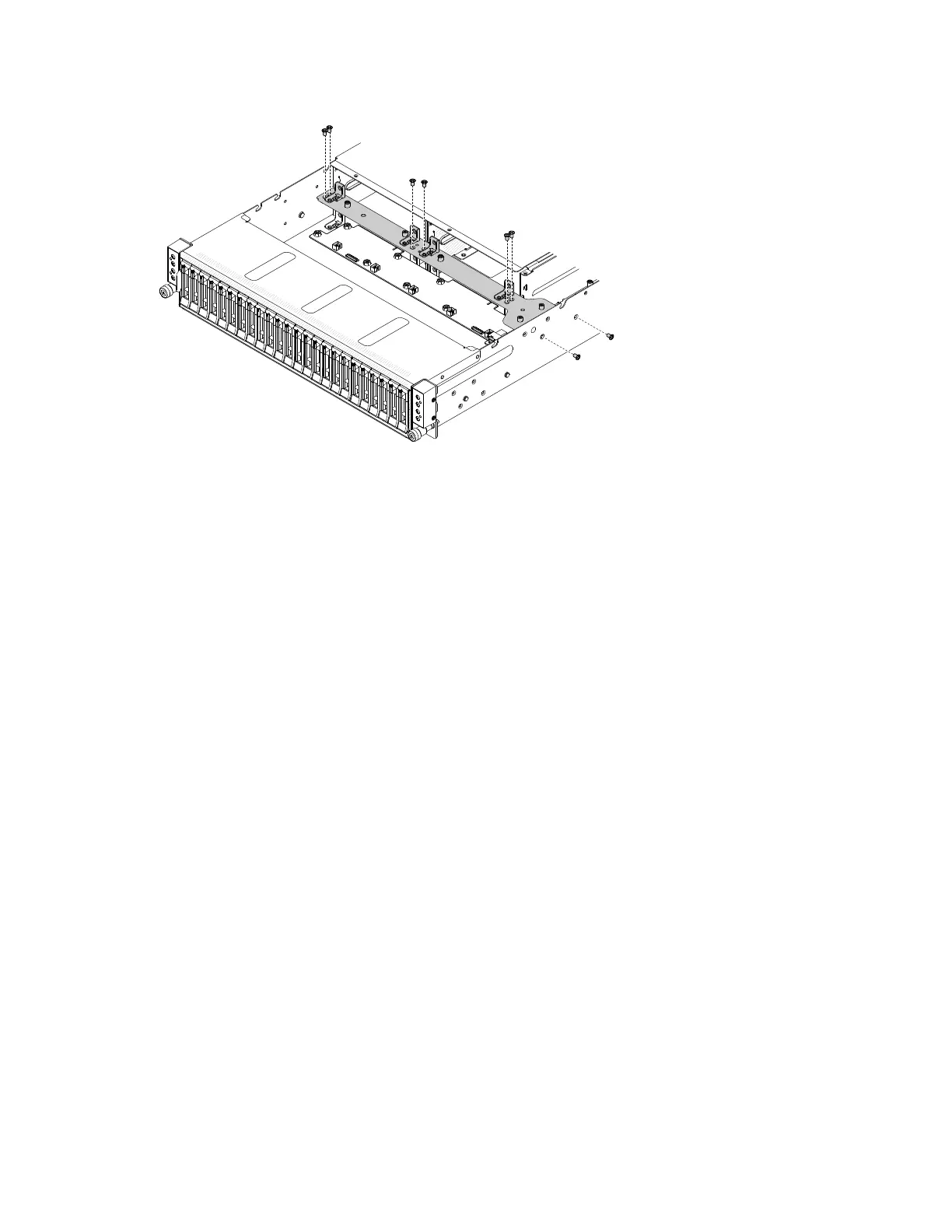

Figure88.Powerinterfaceboardbracketinstallation
Step3.Tightenthepowerinterfaceboardbracketwith8M3screws.
Step4.Reinstallthepowerinterfaceboard(see“Installingthepowerinterfaceboard”onpage139).
Step5.Reinstallthecables(see“Internalcableroutingandconnectors”onpage144).
Step6.Reinstallthefancage(see“Replacingthefancage”onpage105).
Step7.Reinstallthesystemfan(see“Replacingasystemfan”onpage89).
Step8.Reinstallthefancagecover(see“Installingthefancagecover”onpage83).
Step9.Reinstallcomputenode#3and#4.
1.Installtheserverintotherackenclosureandpushtheserverintotherackuntilitclicksintoplace.
2.Reconnectthepowercordsandanycablesthatyouremoved.
3.Turnontheperipheraldevicesandtheserver.
Removingthesystemmanagementboardandbackplaneassembly
Usethisinformationtoremovethesystemmanagementboardandbackplaneassemblyfromtheserver.
Readthesafetyinformationin“Safety”onpagevand“Installationguidelines”onpage75.
Ifyouarereplacingaservercomponentorinstallinganoptionaldeviceintheserver,youneedtoslidethe
serveroutfromtherackenclosure,turnofftheserverandperipheraldevices,anddisconnectthepower
cordsandallexternalcables.
Toremovethesystemmanagementboardandbackplaneassembly,completethefollowingsteps.
Step1.Removethepowersupplies(see“Removingahot-swappowersupply”onpage98).
Step2.Removethefancagecover(see“Removingthefancagecover”onpage82).
Step3.Removethesystemmanagementboardcover(see“Removingthesystemmanagementboard
cover”onpage84).
Step4.Disconnectallofthecablesfromthesystemmanagementboard.
142LenovoThinkServersd350ServerType5493,LenovoThinkServern400EnclosureType5495InstallationandServiceGuide
